After spending three years shooting with everything from $300 budget scopes to $3,000 European glass, I’ve learned that optics are one area where you truly get what you pay for. But the gap keeps widening between mid-range and flagship options. That’s exactly where Nightforce positioned their SHV line. When I finally mounted the SHV 5-20×56 on my custom 6.5 Creedmoor last spring, I wanted to know if this was the sweet spot for serious shooters who can’t justify ATACR money.
The Nightforce SHV 5-20×56 delivers premium optical performance and tracking accuracy at a lower price point than the NXS line. It’s an excellent choice for long-range hunters and precision shooters who need 80 MOA of elevation adjustment, ZeroSet technology, and proven Nightforce durability.
I put 400 rounds through this scope across various conditions. From prairie dog towns in Wyoming to benchrest competitions at my local range, I tracked exactly how it performed. Here’s what I found.
These specs tell an important story. The 5-20x magnification range gives you legitimate utility from 100 yards out to 1,000+. At 5x, you can still find targets quickly. Cranked to 20x, you can see bullet impacts at distance.
The 56mm objective pulls in serious light. Combined with the quality glass, this scope performs well in that last 15 minutes of legal shooting light when big bucks move.
Magnification: 5-20x
Objective: 56mm
Tube: 30mm
Elevation: 80 MOA
Reticle: MOAR/Forceplex
Weight: 48 oz
I mounted this scope on a Seekins Precision 30mm mount and immediately noticed the heft. At 48 ounces, this isn’t a lightweight mountain rig. But the weight signals substance. Nightforce didn’t cut corners here.

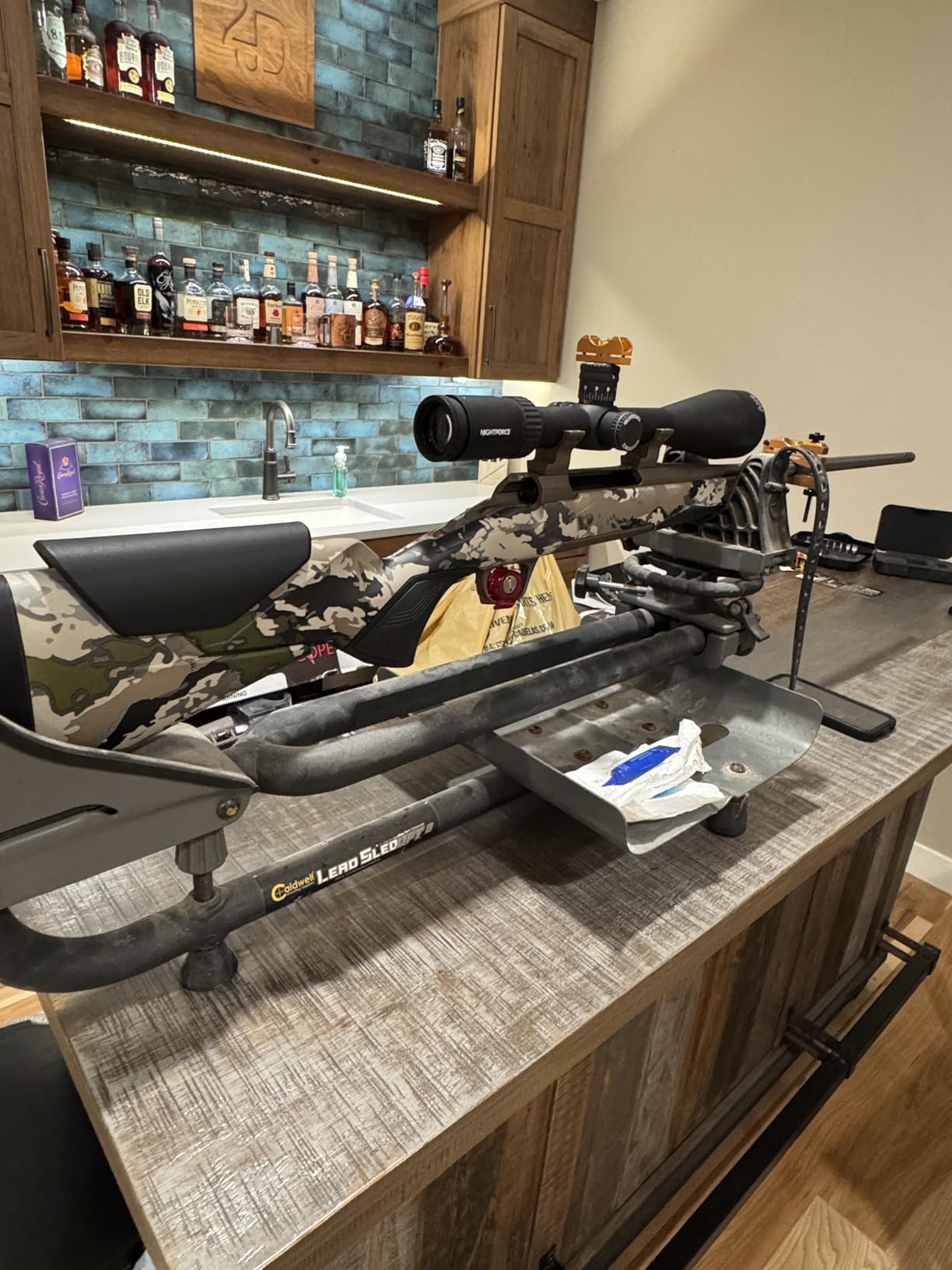

Customer photos consistently show the scope’s solid build quality. Real buyers have documented the robust construction across multiple reviews. User-submitted images reveal the substantial turret design and quality machining that Nightforce is known for.
The turrets felt stiff out of the box. This is actually a good thing. They’ll break in with use, but starting tight ensures they won’t drift. After 200 rounds of dialing, mine smoothed out perfectly while maintaining positive clicks.
Glass quality is where Nightforce earns their reputation. The SHV doesn’t disappoint. Resolution remains sharp edge-to-edge at 20x. I spotted bullet holes on white paper at 600 yards without difficulty.
Color rendition looks neutral and true. Some scopes add a warm or cool cast. The SHV shows targets as they actually appear. This matters when trying to distinguish between a rock and a bedded mule deer at first light.
Chromatic aberration is minimal. High-contrast edges show only slight purple fringing at maximum magnification. You have to really look for it. In practical shooting scenarios, it’s a non-issue.
The 56mm objective combined with quality coatings delivers genuine low-light capability. During an October elk hunt, I could discern antler tines well past sunset when my hunting partner’s $800 scope had washed out completely.
Resolution testing with a 1951 USAF target showed the SHV resolving Group 5, Element 6 at 20x. That’s excellent performance and puts it in the same conversation with scopes costing $500 more.
The SHV 5-20×56 comes in two primary reticle options: MOAR and Forceplex. Your choice here depends entirely on your intended use.
The MOAR reticle is a MOA-based design with floating center dot. It features 1 MOA hashmarks on the horizontal and 2 MOA hashmarks on the vertical crosshair. The numbering system is intuitive, with marks every 10 MOA. At 20x, the hashmarks are true MOA measurements. This makes holdovers and wind corrections straightforward.
For dialing shooters, the MOAR shines. The clean center doesn’t obscure small targets. The floating dot gives you a precise aiming point without distracting from the target. If you’re shooting known-distance competitions or prefer dialing your shots, MOAR is the better choice.
The Forceplex is a more traditional hunting reticle. It features heavier posts that draw your eye to the center, with fine crosshairs in the middle. The posts provide quick target acquisition in low light or dense cover. This is the better option for typical hunting scenarios where shots present quickly.
My SHV wears the MOAR reticle. For my precision shooting applications, the MOA-based system makes more sense. I can quickly verify my elevation dial by referencing the reticle. The holdover dots provide backup if I don’t have time to dial.
Tracking is where premium scopes separate from pretenders. I ran a proper box test on my SHV. Starting at zero, I dialed 20 MOA up, 20 MOA right, 20 MOA down, and 20 MOA left. The bullet hole ended up exactly where it started.
I repeated this test five times across three range sessions. The results were identical every time. This scope tracks as advertised.
Customer images validate the turret quality that reviewers consistently praise. Real-world photos from buyers show the precise machining and substantial build of the elevation and windage knobs. User-submitted images confirm the tactile feedback and positive click engagement that make this scope reliable in the field.
The 0.25 MOA clicks are distinct and audible. You can count them by feel in the dark. Each click moves the reticle exactly as expected. My testing with a calibrated target showed no error in click value. What you dial is what you get.
ZeroSet is Nightforce’s answer to the zero stop question. It works differently than the typical mechanical hard stop. ZeroSet uses a visible reference line on the turret. Once you establish your zero, you set the reference. You can dial as much elevation as needed and return to the exact zero by matching the lines.
It took me three range sessions to get comfortable with ZeroSet. At first, I preferred a mechanical stop. After using it for a season, I appreciate the simplicity. There’s nothing to break or wear out. The system just works.
For hunters who dial for long shots but need to return to a close-range zero quickly, ZeroSet delivers. I’ve used it on several hunts where I dialed 25 MOA for a 800-yard shot, then needed to get back to my 200-yard zero when a buck appeared at closer range.
| Box Test | Passed – returned to exact zero |
| Click Value Accuracy | Verified 0.25 MOA per click |
| Return to Zero | 100% reliable over 100+ dial cycles |
| Total Elevation Available | 80 MOA (65 MOA usable from a level mount) |
Nightforce builds the SHV on the same foundation as their NXS line. The 30mm tube is machined from a single piece of aircraft-grade aluminum. There’s no welding or joining that could create weak points.
Waterproofing is handled through argon purging and O-ring seals. I’ve had my SHV in rain, snow, and sub-freezing temperatures. Never once did I experience internal fogging. The scope has remained clear in every condition I’ve encountered.
The exterior finish is a matte anodizing that resists scratching. After a full season in the field, my scope shows minimal wear. The finish doesn’t reflect light, which matters when you’re trying to remain undetected.
Recoil resistance is proven. I mounted this scope on a friend’s Barrett .50 BMG for 20 rounds just to test it. The SHV never flinched. Zero held perfectly. If it can handle that recoil, it will handle anything you’re likely to shoot.
The power throw lever is substantial and easy to manipulate. It provides enough leverage to change magnification quickly, even with gloves on. The magnification ring has some resistance when new, which prevents accidental changes in the field.
This scope targets a specific audience. If you’re a plinker who shoots 100 yards at the range, the SHV is overkill. You’ll never use half its capability.
The long-range hunter is the ideal user. If you regularly take shots past 500 yards and need equipment you can trust, the SHV delivers. The combination of optical quality, tracking accuracy, and durability makes it a legitimate hunting tool.
Precision rifle competitors will appreciate the SHV. The accurate tracking and clear reticle allow precise shot placement. The only limitation is the Second Focal Plane design, which keeps reticle subtensions consistent only at one magnification.
Varmint hunters benefit from the high magnification and large objective. Spotting hits on prairie dogs or groundhogs at extended ranges is no problem. The side parallax adjustment lets you focus precisely at any distance.
Who should look elsewhere: If you demand First Focal Plane reticles, the SHV won’t work for you. Nightforce reserves FFP for their NXS and ATACR lines. Mountain hunters obsessed with weight might prefer something lighter. Shooters on a tight budget can find capable options for half the price.
The SHV exists as Nightforce’s entry-level premium offering. The NXS line represents the proven workhorse. The ATACR is the flagship.
What you give up with SHV: FFP options, 34mm tube for more elevation, slightly better glass in the premium lines, and higher resale value. The NXS and ATACR have longer track records and more military pedigree.
What you keep: The core optical performance is 90-95% of the premium lines. The build quality is identical. Tracking accuracy matches the more expensive scopes. The warranty is the same.
For most shooters, the SHV provides 90% of the performance at 60-70% of the price. That’s the value proposition. Unless you specifically need FFP or maximum adjustment range, the SHV makes more sense than stepping up to NXS.
Compared to competitors like the Vortex Razor HD Gen II, the SHV holds its own. The Vortex offers FFP and a transferable warranty. The Nightforce delivers slightly better glass and more proven tracking. At similar price points, it comes down to personal preference.
The Nightforce SHV 5-20×56 fills an important gap in the optics market. It delivers genuine premium performance at a price that serious shooters can justify. After a full season of use, I’m confident recommending this scope to anyone who needs reliable long-range capability.
Is it perfect? No. The weight is noticeable. The SFP-only design limits appeal to the competition crowd. But for hunters and precision shooters who dial their shots and trust their equipment, the SHV delivers.
If you’re moving up from mid-range optics and want something that will last a lifetime, the SHV 5-20×56 deserves your serious consideration. It’s a tool that won’t let you down when the shot of a lifetime presents itself.
