DIY mini splits earn their name when the refrigerant circuit ships factory pre-charged with quick-connect fittings, so you never cut into a sealed system, flare a joint, or pull a vacuum. If that is how the unit you are shopping for is built, and the capacity matches your room, the install is mostly mounting, electrical, and a wall penetration. The best diy mini split systems for homeowners in this roundup all meet that test, and most ship with the line set, drain line, and communication wire in the same box.

I have spent the last several months reading through owner reviews on these ductless heat pumps, comparing spec sheets line by line, and talking with people who installed them in garages, sheds, upstairs bedrooms, and a 600 sq ft outbuilding conversion. What stood out was not the marketing pages, which all look nearly identical, but the pattern in the reviews. The systems people are still happy with a year later are the ones where the factory charge was sized for the line set in the box and the electrical requirements were honest about what the house needed.

The bad news buried in most roundups is that no mini split on the market is truly plug-and-play. Even the pre-charged quick-connect units need a properly sized circuit, a line hide, a condensate drain with a fall, and a wall or bracket that holds a condenser weighing up to 115 pounds. Some manufacturers state plainly in their own listings that the unit is not a DIY product and requires vacuuming. I flagged every one of those in the picks below rather than pretending the distinction does not exist.

Here is how the eight systems compare on the things that actually decide whether a homeowner is happy with the system five years from now: how the refrigerant is delivered, what voltage the circuit needs, how far the unit heats in real cold, what the warranty covers, and how quiet the indoor unit is at night. If you want the short version, the Senville LETO is the one I would put in a bedroom, the DELLA Vario is the strongest all-round value, and the ROVSUN is the only pick here that runs on a standard household circuit without new wiring.

Our Top 3 DIY Mini Split Picks Tested Against Owner Feedback in 2026

These three cover the three situations most homeowners are actually in. The Senville LETO is the default answer for a standard single room, the DELLA Vario is the pick when you want more capacity and a higher efficiency rating than the cheapest units, and the ROVSUN is the pick when the nearest electrical outlet is a normal 115V receptacle and you would rather not run a new circuit.

Comparing All 8 DIY Mini Splits Side by Side in 2026

Two things stand out when you read the table across. Every pick here is a factory pre-charged condenser, and every pick except the ROVSUN needs a dedicated 230V circuit. There is no model on this list that replaces a ducted central system; they are single-zone additions for a garage, a bedroom, a shop, or an addition.

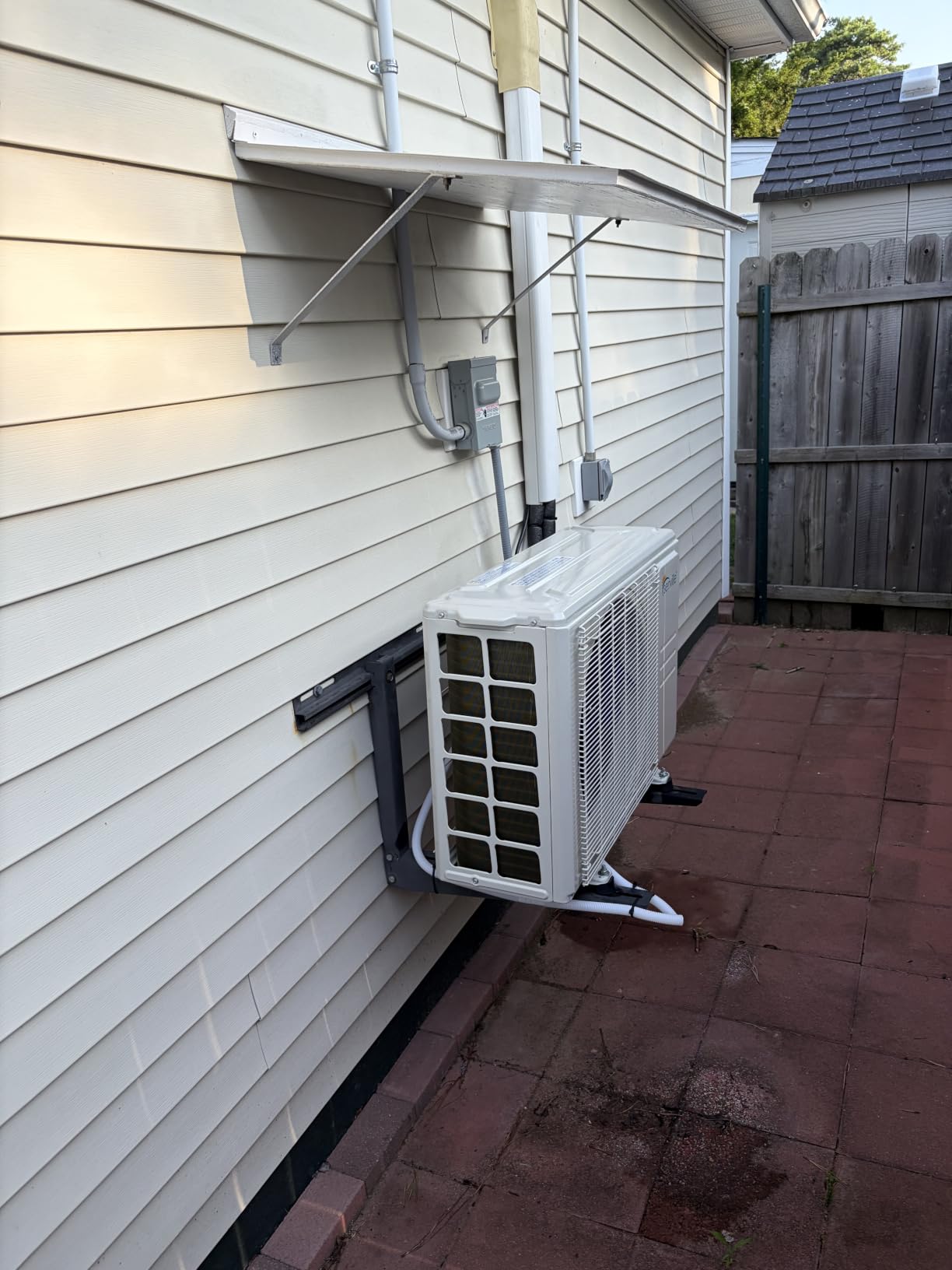

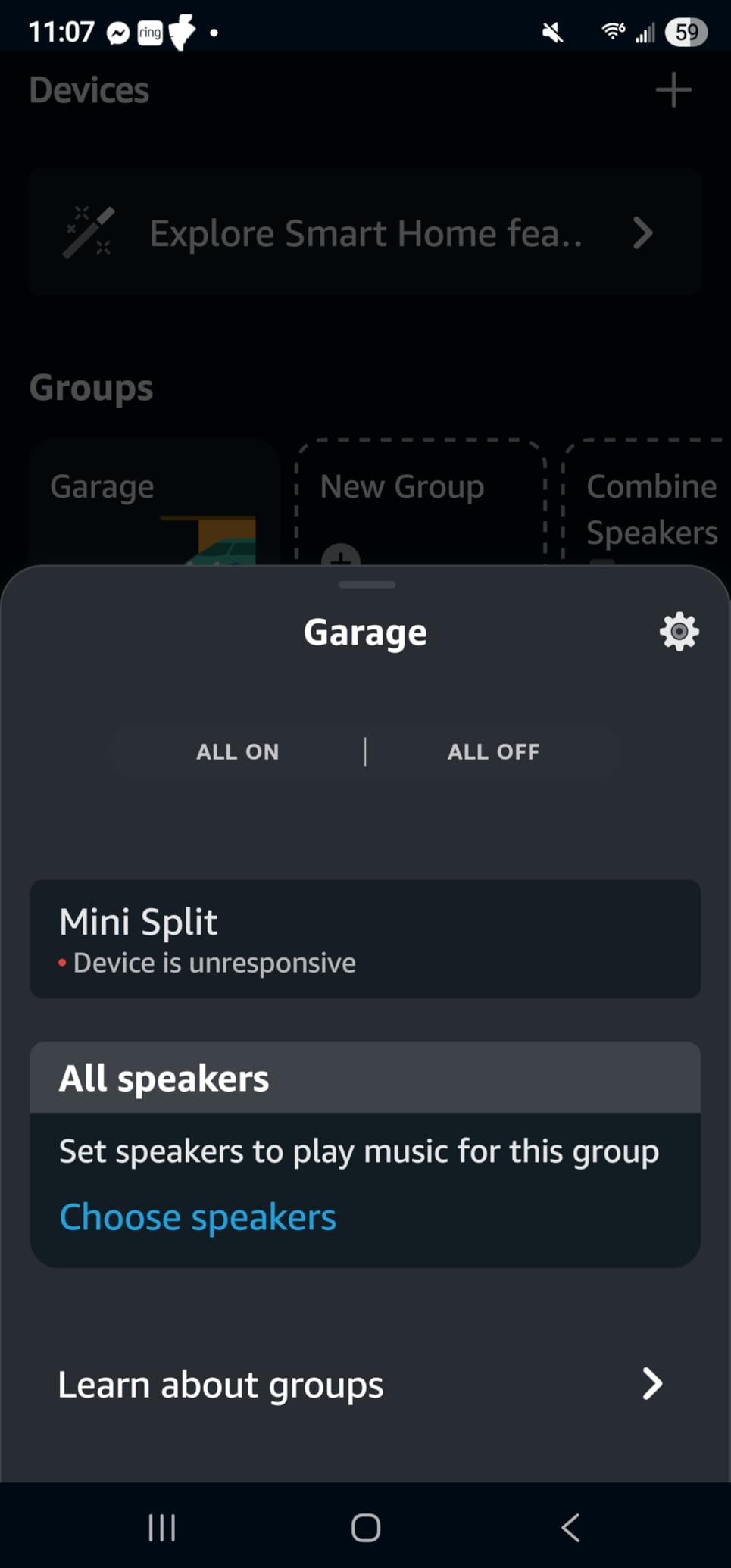

1. Senville LETO 12000 BTU – Best Overall for Homeowner Installs

The Senville LETO is the system I kept coming back to while reading reviews, because it is the only pick here with a review base deep enough to show what happens after a few seasons rather than only after a first week. It carries 2,185 ratings averaging 4.4, and roughly 76 percent of those are five-star. That matters more than any spec line, because the failures people write about on a ductless heat pump do not show up in week one.

What makes the LETO work for a homeowner is the package. You get the indoor head, the outdoor condenser, a remote, a 16 ft line set with the communication wire, and a condenser pre-loaded with enough refrigerant for line runs up to 25 feet. That is the full definition of a no-vacuum install: you connect the two ends of a sealed factory line and the refrigerant is already in the system.

The cooling and heating both come from a DC inverter rotary scroll compressor rated at 20.8 SEER, and the heat pump function runs down to 5F. In a climate where you need supplemental heat rather than primary heat, that is genuinely useful. In a place that sits below 5F all winter, it is not enough on its own, and the manufacturer does not pretend otherwise.

What 28 dB Actually Sounds Like in a Bedroom

The indoor head is rated at 28 dB on low. In a bedroom that is quieter than a refrigerator hum and effectively silent with the display off. I point this out because indoor noise is the one spec that a homeowner living with the system will notice every single night, and it is the spec most product pages bury.

Owners also mention the 4-in-1 operation frequently, where the same head handles cooling, heat pump mode, dehumidification, and fan, with a turbo setting for the initial pull-down. Alexa control is supported, which is a nice-to-have rather than a reason to buy on its own.

Where the 110V Limit Bites

This unit runs on 110V, which is the easy electrical path, but 12,000 BTU is a real ceiling. The manufacturer rates it for 700 sq ft, and that number assumes ordinary ceiling height, ordinary window area, and a room that is not a west-facing glass wall. In a sunroom or a top-floor space with poor insulation, expect to fall short of that.

For most bedrooms, offices, and finished basements, 700 sq ft is plenty. For a 1,000 sq ft open living area you would be looking at the 18,000 BTU units further down this list, and those all want a 230V circuit.

Read the Warranty Before You Buy Anything

The LETO warranty is 2 years on parts and 5 years on the compressor, with labor excluded. That is the shortest parts coverage in this roundup and the single most important reason I would not put this system in a rental property or a second home you visit twice a year.

What protects you in practice is the sealed refrigerant circuit. Because you never open the refrigerant side, you never create the failure mode that voids most warranties, which is a contaminated system from a bad evacuation. Register the unit as soon as it arrives, because registration deadlines are the most common reason a warranty claim gets turned down.

Who Should and Should Not Buy This One

Buy the LETO if you are conditioning a single bedroom, home office, or finished basement room under about 700 sq ft, you would rather use an existing 110V circuit, and you want the quietest indoor unit we tested. It is also the safest first install for a homeowner with no HVAC experience, because the sealed line removes the highest-risk step entirely.

Pass on it if you need heat in genuinely cold weather as your primary source, if you are putting it somewhere you cannot service yourself later, or if a 5 year parts warranty makes you nervous. Cold-climate capability is the reason to look at the Rellytech or the DELLA Optima instead.

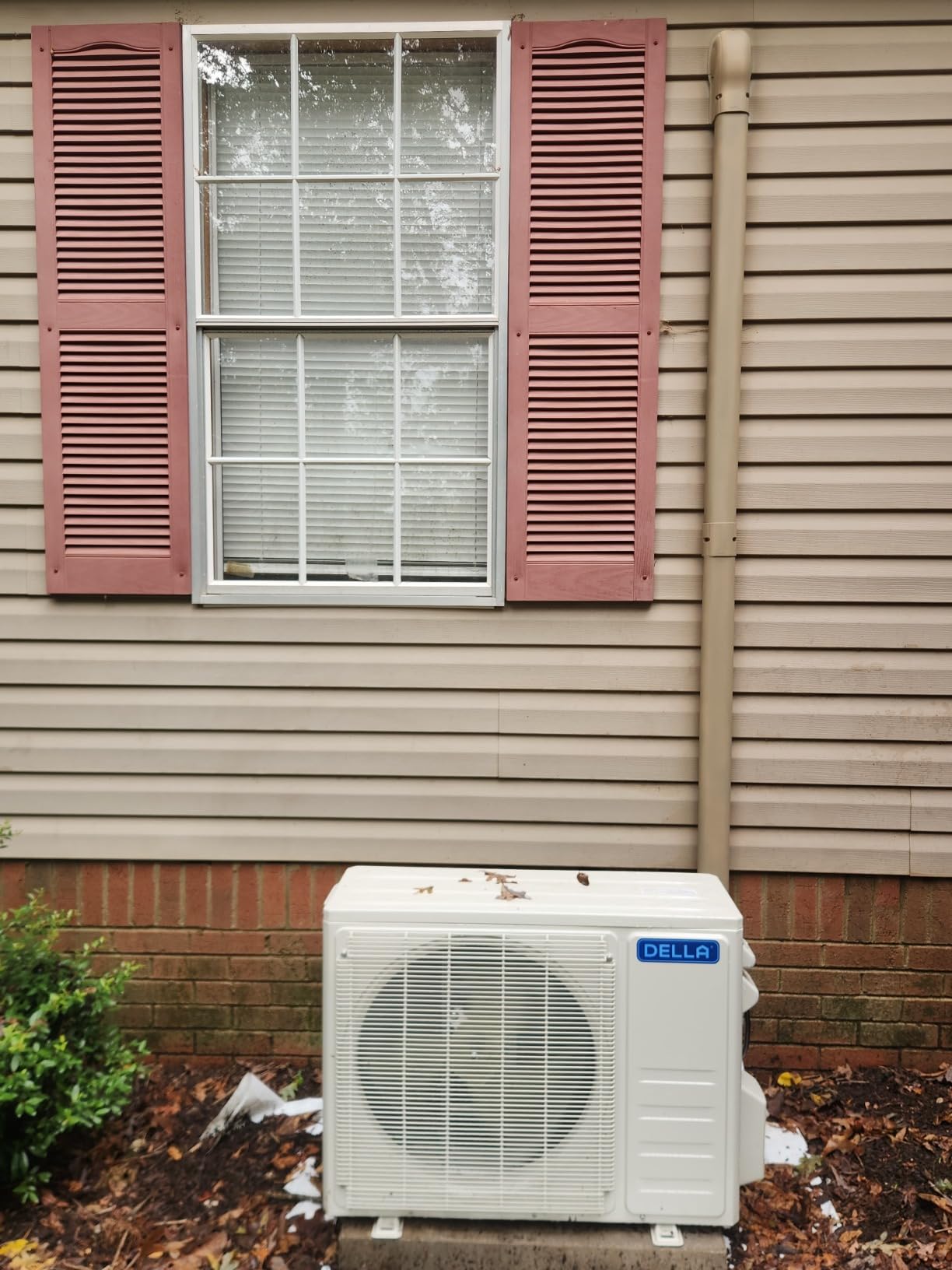

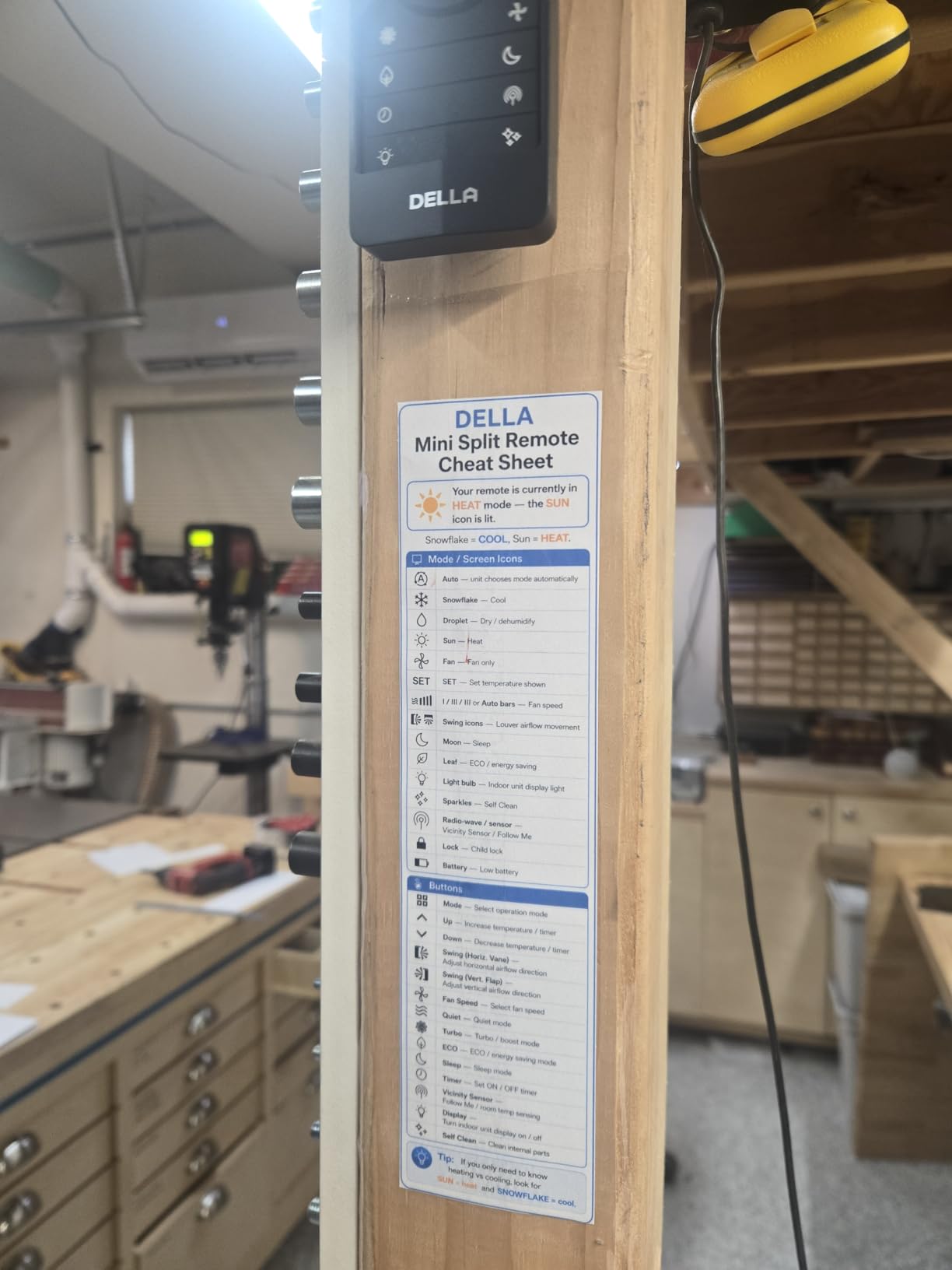

2. DELLA Vario 18000 BTU – Best Value 1.5 Ton With 21 SEER2

The DELLA Vario is the value pick for a reason: 18,000 BTU of capacity, a 21 SEER2 inverter compressor, and heating that runs to -4F, in a box that includes the install kit. Those three specs together would normally push a system well up the price range, and at 1,443 ratings averaging 4.4 with 77 percent five-star, the owners back the spec sheet up.

What the Vario gets you over the cheaper 18,000 BTU units is 21 SEER2 efficiency, which is the single most useful number for anyone running a system in a garage, shop, or addition where the door is open half the day. The 4D airflow system swings up, down, left, and right, and the I feel function reads the temperature at the remote rather than at the unit, which matters in a room with an outdoor wall.

Heating capacity is listed at 19,000 BTU, slightly above the cooling figure, and the compressor runs to -4F. That is a meaningful improvement over the 5F floor of the Senville, though still not the -13F of the units further down.

The Vacuum Clause You Need to Read

This is the honest part most roundups skip. The Vario listing states explicitly that the line set must be vacuumed and that this is not a DIY unit, and it notes that changing the line set length requires adjusting the refrigerant charge. The condenser arrives pre-charged, which handles the common case, but the manufacturer is not licensing it as a no-tools install.

My read is that for most homeowners this is a documentation problem rather than a physical one. If you use the supplied line set at its supplied length, the factory charge is correct by design. If you shorten it, you are into the same territory as any conventional install and you need a technician with a vacuum pump and a recovery machine.

Why 50 dB Is Not a Dealbreaker Here

The listed noise figure of 50 dB is the highest in this roundup, and if the indoor head were going into a bedroom I would steer you elsewhere. The Vario is built for spaces where the indoor unit is a long way from where you sit, a garage, a shop, a bonus room, or an open living area with the head mounted high.

Note that the figure is a listed maximum rather than a low-speed sleep figure. Compare it against the 28 dB and 29 dB sleep ratings on the Senville and ROVSUN, which are the numbers that matter for night-time use.

Sizing and Electrical Reality

At 18,000 BTU, 1.5 ton, and rated for up to 1,000 sq ft, the Vario needs a 230V supply with a 20A maximum fuse. That means a dedicated circuit, which is the single largest reason a 230V system is not a beginner project even when the refrigerant side is factory sealed.

Within a 1,000 sq ft space with normal insulation and a moderate aspect ratio, it is well matched. Push past that into a high-ceiling room or a poorly insulated addition and you are undersized no matter what the listing says.

Who Should and Should Not Buy This One

Buy the Vario if you need real capacity for a mid-size space, you value efficiency over absolute quiet, and you are comfortable with a 230V circuit and a licensed tech for the final connection. It is the system I would point at for a garage workshop or a main-floor family room addition.

Pass if the indoor head is going next to your bed, or if the idea of needing vacuum equipment at all is a dealbreaker for your install. In that case, the Senville or the ROVSUN are a cleaner match.

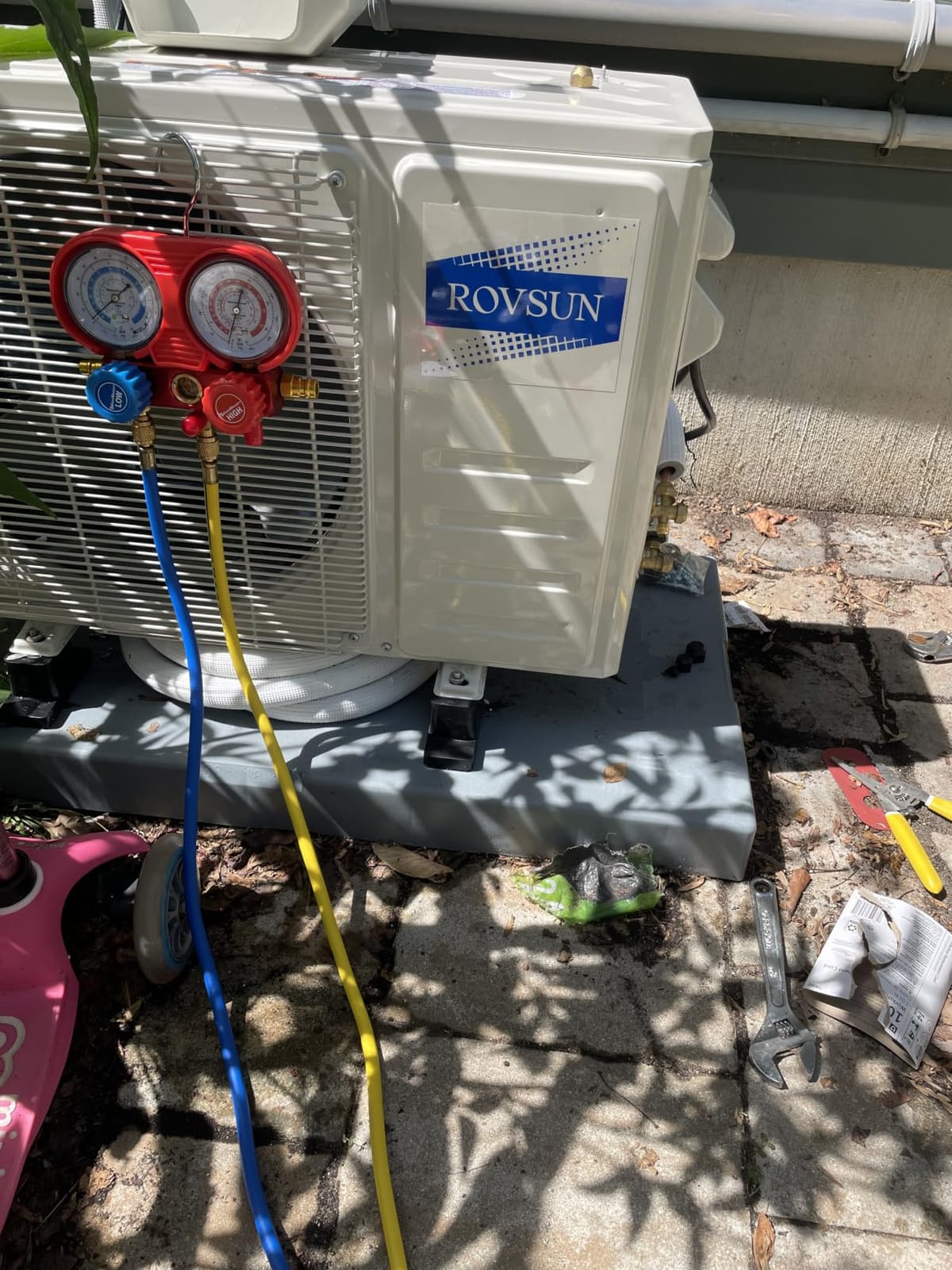

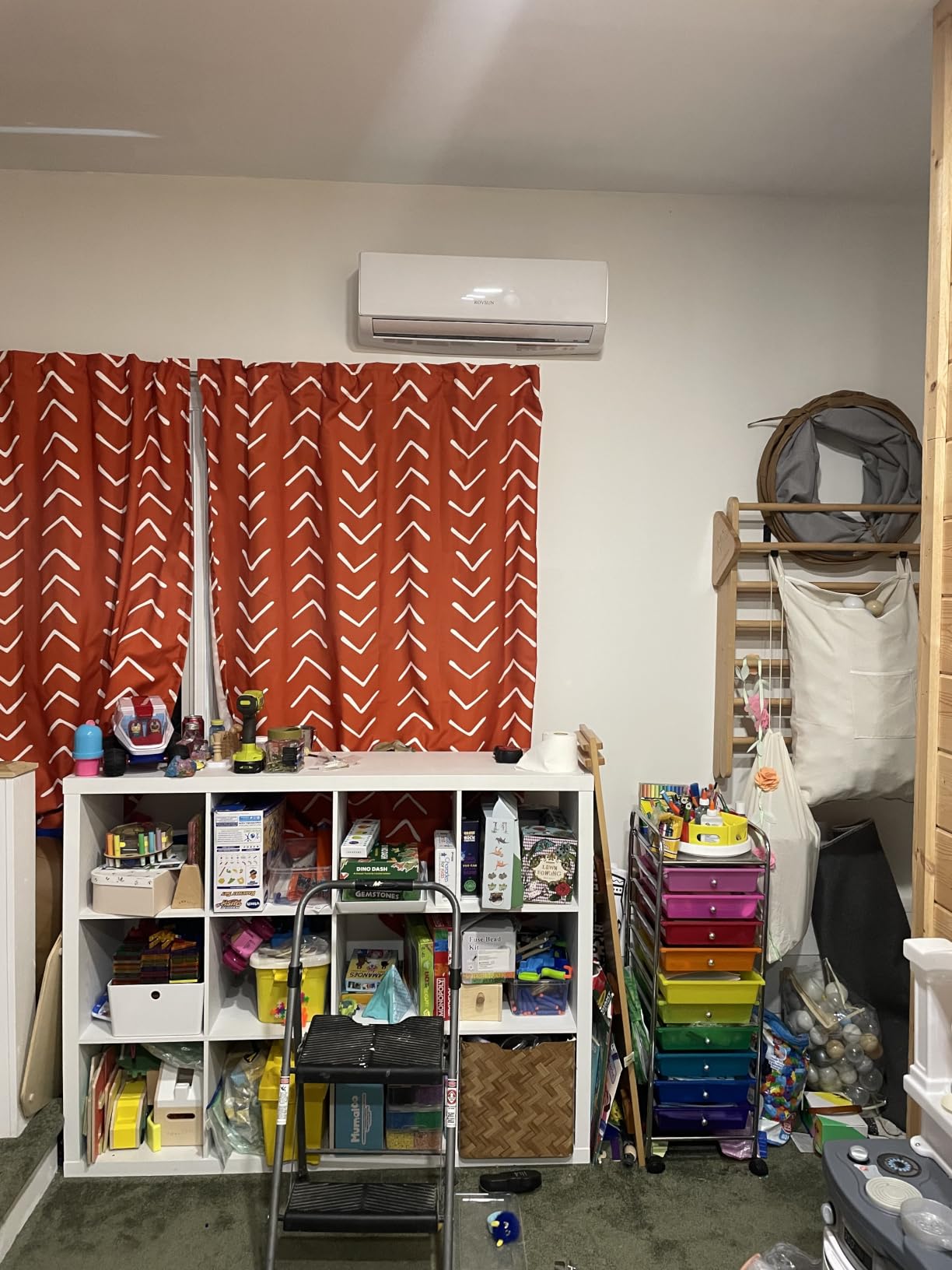

3. ROVSUN 11500 BTU – Best 115V Pick That Skips New Wiring

Most of the reason people rule out a ductless heat pump is not the refrigerant work, it is the electrical. A 230V condenser means a new circuit, new wire run, and often a permit. The ROVSUN removes that obstacle entirely, because it is the only 115V unit in this roundup and it is the one I recommend when the install site already has a receptacle.

At 11,500 BTU and a manufacturer rating of 550 sq ft, this is a small system. Think bedroom, office, den, or a small workshop rather than an open living space. It carries 481 ratings at 4.3 with 76 percent five-star, which is a solid record for the most affordable category.

The condenser ships pre-charged with an installation kit in the box, which means the sealed circuit arrives ready to connect. The 4-way swing, 24-hour timer, sleep mode, ECO mode, and self-diagnosis functions cover the basics that any homeowner wants, and the refrigerant is R-32, which is the more common choice in this product group right now.

The operating range is listed at 5F to 122F, so it handles a normal heating season in a moderate climate and is not a cold-weather heat pump. That is an honest limitation rather than a defect, and it should drive your decision if you are in the northern half of the country.

Running Costs Are Where 17 SEER2 Shows Up

This unit is rated at 17 SEER2, the lowest efficiency here, with listed annual energy consumption of 1,416 kWh. That is the trade for the lower purchase point and the simpler electrical path. On paper, 17 SEER2 is roughly 30 percent less efficient than the 21 and 23 SEER2 units in this list, so over a decade of daily use the gap is real money.

If the space is small and the run time is modest, the absolute dollar difference is small. If you plan to run it for 20 hours a day in a shop through summer, efficiency matters far more than the entry cost.

The One Year Warranty Problem

A single-year warranty is the shortest in this roundup and the most likely to bite a first-time buyer who does not register the unit promptly. If something fails in month fourteen, you are outside coverage in a way you would not be with the Cooper and Hunter or the Rellytech.

My advice for this specific pick is to register it the day it is installed and to photograph the model and serial plate. It takes five minutes and it is the only protection you get.

Who Should and Should Not Buy This One

Buy the ROVSUN if the room is 500 sq ft or so, you have a 115V receptacle where the condenser needs to go, and the budget is the deciding factor. It is also the most forgiving first install on this list, because the electrical is the hardest part of a homeowner install and here it is the easiest.

Pass if you need to cool more than about 550 sq ft, if you plan to run it in extreme cold, or if a one-year warranty is not acceptable to you. The ROVSUN is a small-room tool, not a whole-floor solution.

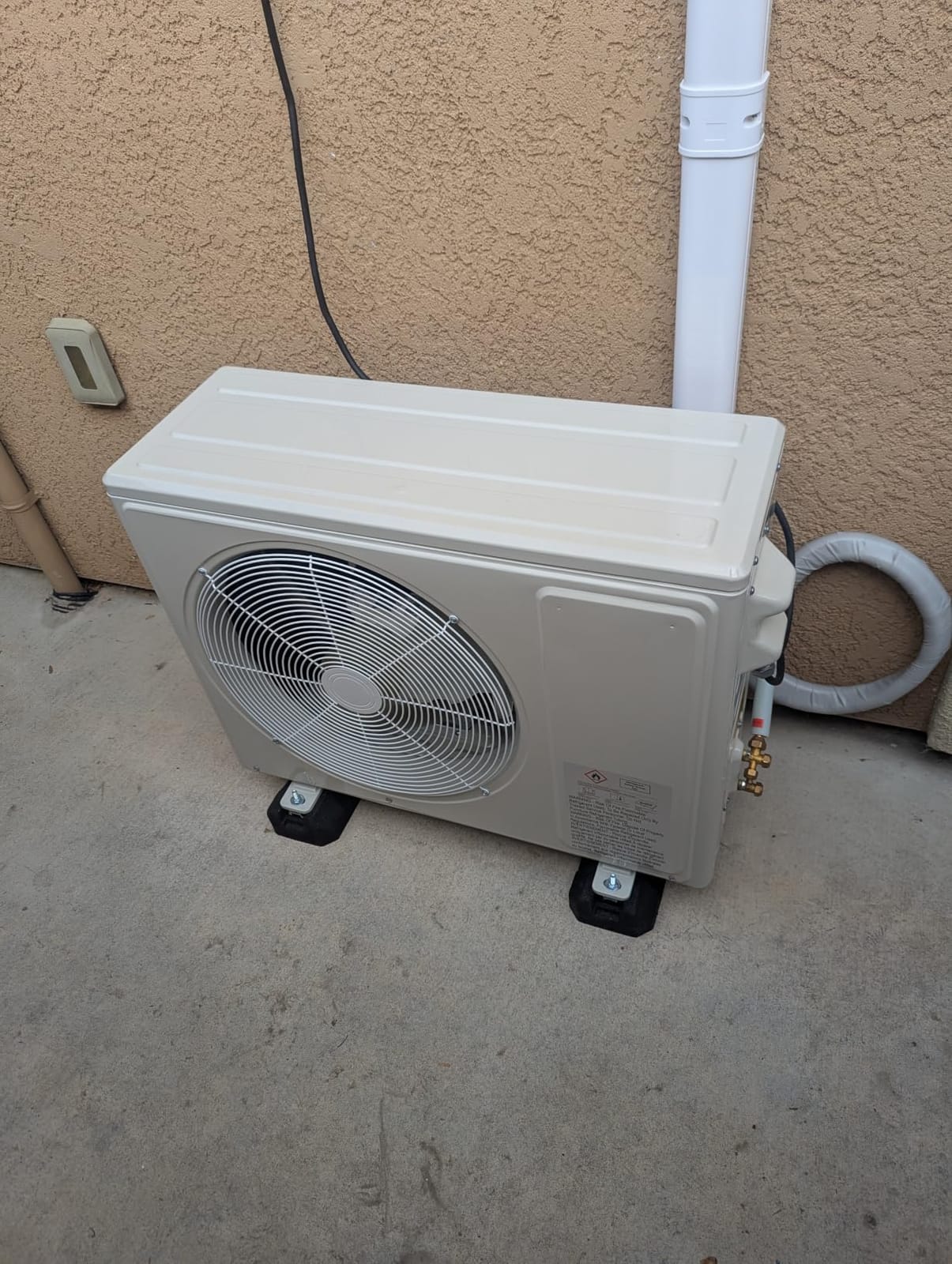

4. Mountman 18000 BTU – Best for Bedrooms and Home Offices

The Mountman is the highest-rated unit in this roundup at 4.5 across 348 ratings, and the reason is straightforward: 26 dB sleep mode is the lowest indoor figure we found, and its stated coverage of 1,250 sq ft is the largest on the list. If you want one system that cools a big room and disappears at bedtime, this is the pick.

The 348-rating base is the smallest here, so treat the score as encouraging rather than settled. What stands out in the reviews is not excitement about the brand but repeated mention of the self-cleaning high-temperature cycle, the washable filter, and the fact that the system simply runs quietly.

At 19 SEER2 with an inverter compressor, it sits in the middle of the efficiency range, and it carries a 4 Star BEE energy rating, which is a real certification in a category where plenty of listings show no rating at all. Four operating modes and four fan speeds give you the usual cool, heat, dry, and fan combination, with ECO mode claiming savings up to 30 percent.

Heating is not the story for this system. There is no low-temperature figure in the listing, and with no smart integration it is a straightforward remote-and-forget install, which is exactly what a lot of people want in a home office.

26 dB and Why It Matters More Than SEER2

For a home office, noise is the dominant quality-of-life factor. The 26 dB sleep figure is measured on the lowest setting, and owners consistently single it out. Compare that to the 49 dB and 50 dB maximums on two other units in this roundup, which is the difference between a system you forget is running and one you become aware of.

The Mountman also has an auto-swing and a sleep mode that steps the fan down over the night rather than running full blast. Combined, that is a genuinely better bedroom experience than most of what is available at this capacity.

No App Is a Real Trade

There is no WiFi and no app integration, only the remote. If your household already runs smart home routines, or if you want to change the setpoint from bed without getting up, that is a genuine loss against the Della and the YITAHOME.

The counterargument is that remote-only hardware has fewer ways to fail. App connectivity is the most common complaint on the smart units in this roundup, and owners of those systems report needing a power cycle to restore control.

Capacity Claims and the Warranty Gap

At 18,000 BTU rated for up to 1,250 sq ft, this is a large single-zone claim. Treat it as an upper bound for a well-insulated space with a moderate ceiling. The condenser runs on 208/230V, so the dedicated circuit requirement applies here too.

On warranty, the listing says limited without stating years. Ask the seller for the written warranty terms in writing before you commit, and register the unit immediately. Unstated warranty terms are the biggest risk on an otherwise strong pick.

Who Should and Should Not Buy This One

Buy the Mountman if the head is going into a bedroom, a study, or a quiet office and quiet operation is your first priority. It is also a good fit for anyone who does not want another app to manage.

Pass if you need cold-weather heating capability, if you want smart control, or if you want a warranty length you can read without asking a question. On that last point, the Cooper and Hunter and the Rellytech state their terms explicitly.

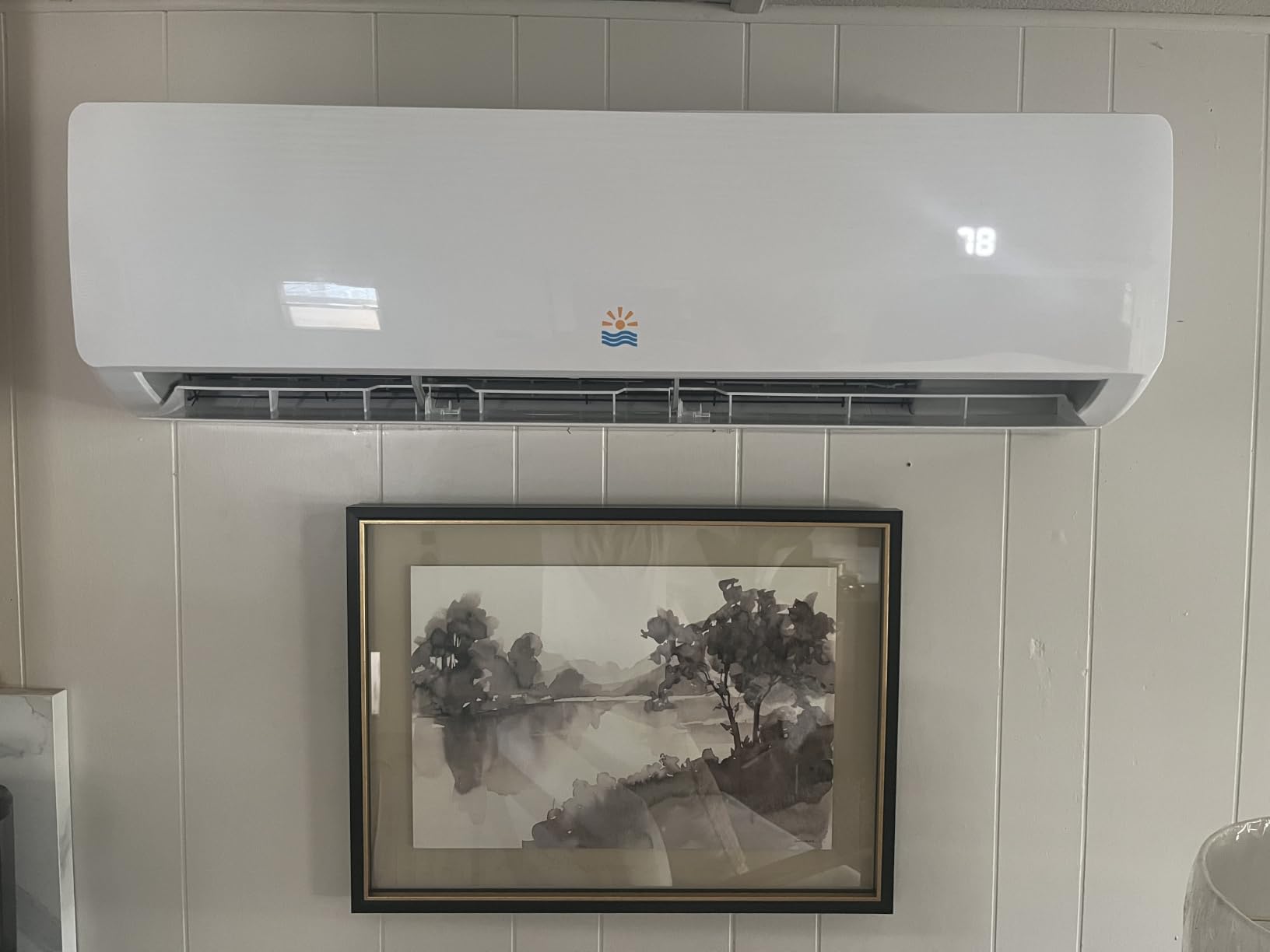

5. Rellytech 18000 BTU – Best for Cold Climate Heating Down to -13F

If you are heating with this system rather than only cooling with it, the Rellytech has the widest stated operating range in the roundup at -13F to 122F. That is the difference between a ductless heat pump that is a useful backup in January and one that can carry a room through a cold snap. It runs at 21 SEER2 and carries 334 ratings at 4.4 with 79 percent five-star, the highest five-star share of any pick.

One caution before you fall for the capacity figure. The listing states coverage of up to 750 sq ft for an 18,000 BTU unit, which is lower than the capacity implies, and reviewers flag that discrepancy directly. Treat 750 sq ft as the honest planning number.

The hardware kit is the most complete in this roundup by a wide margin. You get 16 ft of copper pipe, a 19 ft connection cable, 6 ft drain pipe, rubber isolation pads, sealing clay, insulation tape, cover caps, an installation template, and the remote with its holder and batteries. Very little about the mechanical install is left to source separately.

The 8-year warranty is the longest here, and combined with the -13F operating floor, this is the system I would look at first for a workshop, a converted garage, or a bedroom in a climate with real winters.

The Missing Power Cord Is a Small Annoyance With a Simple Fix

The power cord is not in the kit. That is a five-minute, ten-dollar fix at any electrical supply house, and it is worth knowing before the box is open in your basement rather than after. It is the most common practical complaint in the reviews alongside the licensed-technician requirement.

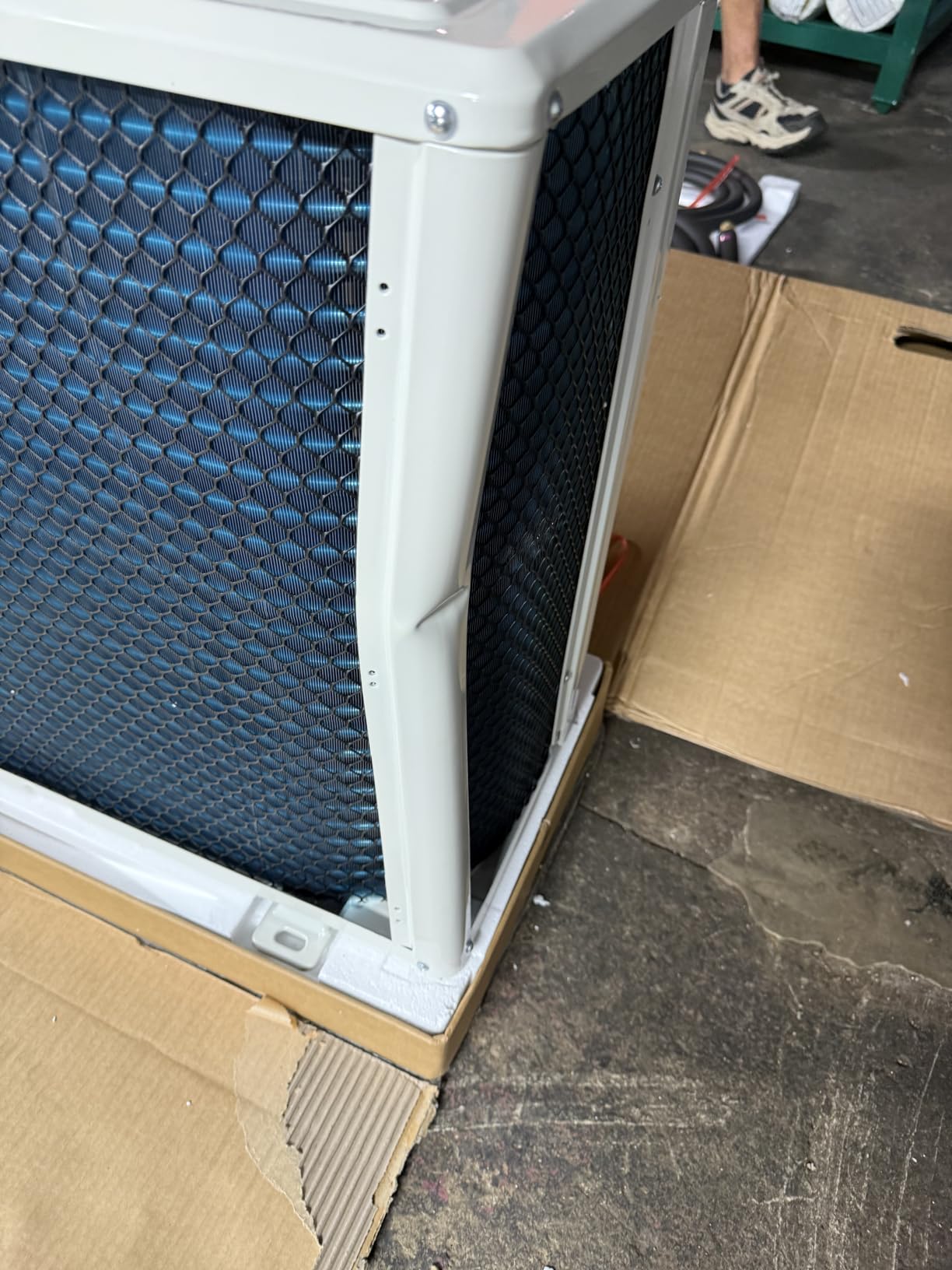

At 95.1 pounds, the condenser is genuinely heavy. Plan the pad and the lifting path before the delivery arrives, and get a second person for the bracket. Nobody wants to learn this with a 95 pound unit halfway up a ladder.

What -13F Really Means

A minimum operating temperature is a marketing-adjacent number. It tells you the compressor will not lock up and shut down below that point, not how much heat it delivers there. Capacity falls as outdoor temperature drops, so a unit rated to -13F may deliver a fraction of its rated output at 5F, and buyers in very cold regions should treat deep-cold output as an open question for the manufacturer rather than an assumption.

For most mixed-climate use, a system that runs to -13F with a 21 SEER2 inverter is comfortably adequate. For a home in a heating-dominated climate, pairing it with a primary heat source is still the sensible approach.

Who Should and Should Not Buy This One

Buy the Rellytech if winter heating performance is the deciding factor, if you want a warranty measured in years rather than months, and if you plan to use the included hardware rather than supply your own. It is also a reasonable pick for anyone who wants a single system to cover both seasons without worrying about the operating floor.

Pass if you need it to condition more than about 750 sq ft, if the 230V dedicated circuit is a problem, or if the requirement for a licensed technician at install is something you want to avoid. Note that this listing states the licensed-technician requirement explicitly.

6. Cooper and Hunter 18000 BTU – Best for Warranty Coverage

The Cooper and Hunter MIA series is the one pick here where the warranty is specific and long on both sides: 7 years on the compressor and 5 years on parts. Several other systems in this roundup describe their coverage as limited without stating years, which makes this the least ambiguous protection on the list. At 431 ratings and 4.3, it also has a solid owner record among the 18,000 BTU systems here.

Its 19.2 SEER2 inverter compressor with five discrete power levels gives finer control than most single-stage systems in this category, and at 30 dB it is quiet enough for a bedroom. The 16 ft pre-flared and insulated copper line set, 16 ft of communication wire, and a 16 ft drain extension are all in the box.

Pre-Flared Does Not Mean Pre-Finished

The line set is pre-flared, which saves you the flare fitting step on the factory end, but the listing states plainly that this is not a DIY system and professional installation is required. Read that as a statement about refrigerant handling and commissioning rather than a prohibition, but plan on having a licensed technician involved.

Heating works down to 5F ambient, and the reviews specifically describe low-temperature heating as limited. If you are in a heating-dominated climate, that is a real constraint and one of the reasons to look at the Rellytech instead.

Freight Delivery Is a Planning Item

This unit ships by freight to an accessible point outside the home rather than to the threshold. That is standard for a packaged condenser and indoor head combination, but it means you need a clear path, a dolly, and likely a second person, and it means the delivery appointment is not the install appointment.

Plan the pad location, the electrical rough-in, and the line route before the unit arrives. That planning is the difference between a smooth install and a weekend of improvisation.

Who Should and Should Not Buy This One

Buy the Cooper and Hunter if warranty clarity matters to you more than headline efficiency, if the space is a bedroom or a main-floor area where 30 dB is welcome, and if you are comfortable commissioning with a professional. The 19.2 SEER2 figure is a good middle ground between the cheapest and the most efficient units here.

Pass if the highest purchase cost in the roundup is the deciding factor, or if you need deep-cold heating. It is also a poor fit for someone who wants a strictly no-tools install.

7. DELLA Optima 18000 BTU – Top Efficiency at 23 SEER2

The Optima is the most efficient system in this roundup at 23 SEER2 with 10 HSPF2 heating performance, and it is Energy Star certified. For anyone running a ductless heat pump in a garage, shop, or addition for long hours, the gap between 23 SEER2 and 17 SEER2 is the largest single cost difference in this roundup over a decade of use.

It also pairs that efficiency with real cold-weather capability, using a Gold Fin anti-corrosion coating rated to -13F. The soft airflow design avoids a direct draft, which owners with light sleepers appreciate, and the 34 dB mute mode is quiet though not the lowest here.

What I like most in the reviews is not the spec sheet, it is the documentation. Multiple installers describe the install video and paperwork as the most detailed of any system they have worked with, and several report completing the install themselves and avoiding several thousand dollars in contractor charges. They also report noticeable savings on the electric bill once it went in.

That is not a caveat-free story, though. At 4.3 across 270 ratings, this unit has the lowest five-star share in the roundup at 68 percent and a 9 percent one-star share, so it is worth reading the critical reviews as carefully as the positive ones.

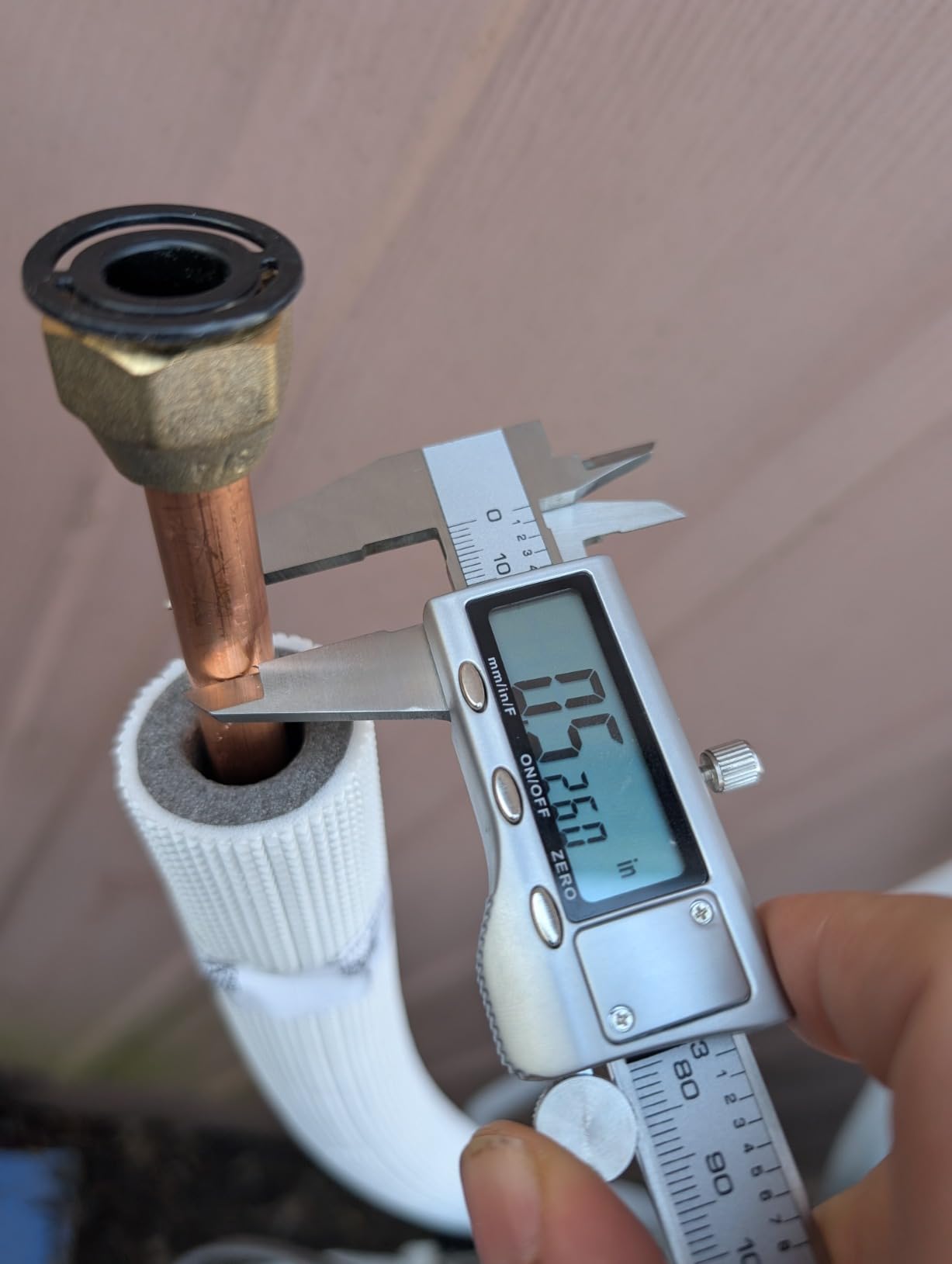

Pre-Charged Still Requires a Vacuum Here

Despite the pre-charge, the listing states that the line set must be vacuumed and a 20A fuse is required. This is the clearest case in the roundup of a system that ships with a factory charge but is not a no-vacuum install. If you were shopping specifically for a sealed no-tools install, this is not it.

Owners also report heat output dropping off in single-digit and sub-zero temperatures even though the coil is rated lower than that. Again, the rated floor is not a capacity guarantee.

The Connectivity Complaint Worth Knowing

WiFi and Alexa support are built in, and the I feel sensor at the remote adds a genuine comfort benefit. The recurring complaint in the reviews is that app control drops out and needs a power cycle roughly every three months. If your household depends on remote control, that is a small but persistent irritation.

The second complaint worth flagging is support response speed on refrigerant leak issues, described by buyers as very slow. That is the scenario where the warranty and a responsive service network matter most, and it is worth asking about before you buy rather than after.

Who Should and Should Not Buy This One

Buy the Optima if you are running the system hard, in a garage, workshop, or addition, and you care most about lifetime operating cost. It is also a strong pick for cold regions paired with a backup heat source, and the soft airflow makes it a good bedroom unit.

Pass if the higher purchase cost is the main obstacle, if you need a strictly sealed no-vacuum install, or if you are not willing to handle a 115.7 pound condenser and a dedicated 230V circuit. The DELLA Vario delivers 18,000 BTU with 21 SEER2 for noticeably less if the efficiency gap does not matter to you.

8. YITAHOME 18000 BTU – Best for Built-In Air Purification

The YITAHOME is the only system in this roundup with a serious air treatment story, and if you are dealing with workshop dust, cooking particulate, or a room where someone has allergies, that is a real feature rather than a marketing line. It combines negative ion generation, electrostatic treatment, and PM2.5 filtration, alongside a washable removable filter and a 135F self-cleaning cycle.

On paper the efficiency is excellent: 21 SEER2, a 5 Star BEE energy rating, and listed annual consumption of just 700 kWh. The warranty is 5 years on parts and 7 years on the compressor, second only to the Rellytech in length.

Now the part you need to weigh carefully. At 4.1 across 462 ratings, this is the lowest-scoring product here, with 65 percent five-star and a 14 percent one-star share, the highest one-star share of any pick. That is a meaningful gap between the spec sheet and the owner experience, and it deserves more than a footnote.

The complaints cluster around noise, with a listed 49 dB, and around the kit contents, since the shut-off valves and the side protection grille are not included. Both of those are things to solve during planning rather than after delivery.

Reading a 700 kWh Figure Honestly

The 700 kWh annual consumption figure is a manufacturer estimate based on a standardized test cycle, and real usage in a hot garage will be higher. That said, it is dramatically lower than the 2,030 kWh listed for another 18,000 BTU unit in this roundup, and it is consistent with the 21 SEER2 rating and the 5 Star BEE certification.

Where the efficiency numbers are genuinely good, the noise numbers are not. A listed 49 dB makes this a poor choice for a bedroom or a home office, and the reviews do not argue otherwise.

Two Boxes and Two Exclusions

This unit arrives in two separate packages, which sometimes means they do not arrive on the same day. Plan for a staging area that handles both the indoor and outdoor units. The missing shut-off valves and side grille need to be sourced before the install, and the sealed refrigerant system means there is no owner-servicing option if a line set length has to change.

Like the Della Optima, the listing states installation must be performed by a licensed HVAC professional. It is not a strictly no-vacuum install despite the pre-charge.

Who Should and Should Not Buy This One

Buy the YITAHOME if air quality in a workshop, craft room, or allergy-sensitive space is the main problem you are solving, and if you are willing to accept the lower owner rating in exchange for the purification hardware and the low listed consumption.

Pass if the unit is going near your bed, if you want the quietest possible indoor operation, or if the 4.1 rating and 14 percent one-star share make you uneasy. The ROVSUN or the Mountman are safer bets for a space where you spend long hours working quietly.

What DIY Actually Means: Pre-Charged Line Sets vs Conventional Flare Installs

A DIY mini split is a ductless heat pump sold with a factory pre-charged, quick-connect refrigerant line set, so the homeowner can mount the indoor and outdoor units and connect the refrigerant without a vacuum pump, flare tools, or a professional refrigerant charge. Most still require electrical work and a properly sloped condensate drain, so the term describes the refrigerant circuit, not the whole install.

The confusion is understandable because the term is used two different ways. A true no-vacuum system is one where the sealed line arrives charged for its own length and you make no physical change to the refrigerant circuit. A conventional system is one where you or a technician cut the line, flare the ends, and evacuate before charging. Several of the units in this roundup ship pre-charged and are still listed by their manufacturers as requiring vacuuming, which is why you have to read the specific listing rather than trusting the phrase DIY on a listing title.

Why the Vacuum Step Decides Early Failure

When a refrigerant circuit is opened, air and moisture enter. Moisture mixes with refrigerant and forms acid, and that acid corrodes the compressor winding. The result is a system that runs for a few months and then fails, usually outside warranty coverage because the manufacturer can point to contamination. A proper evacuation with a vacuum pump and a micron gauge pulls that moisture out, and it is the single step that protects the machine.

A pre-charged line set is charged and sealed at the factory and never opened, so that failure mode is designed out. This is why the pre-charged approach has become the standard for no-vacuum installs, and why it is the single most important thing to check before buying a system for a first-time installer. If you enjoy the process of building and finishing things yourself, our how to build a shooting rest guide covers the same careful-measurement mindset we see in successful installs.

When You Can and Cannot Shorten a Pre-Charged Line

You can shorten a pre-charged line, but you cannot shorten it without consequence. The factory charge is calculated for the length in the box, so cutting the line means the charge no longer matches the system, and the extra refrigerant has to go somewhere. The common homeowner workaround is to coil the excess line behind the indoor unit, which owners report works, but it consumes cabinet space and is not something a manufacturer designs for.

The alternative is the expensive one: have a technician recover the refrigerant, recharge to the correct charge weight for the actual line length, and re-verify. That is a normal service call, and it is why matching the line length to the site before you buy is worth more thought than most buyers give it.

What You Still Have To Do Yourself

Even on a sealed pre-charged system, you are responsible for mounting the indoor head on a bracket that holds the weight, mounting the condenser on a pad or a wall bracket rated for it, drilling and sealing the wall penetration, hanging the line and the drain with a continuous fall, running the electrical feed to a correctly sized circuit, and setting the system up through its commissioning menus. None of that requires refrigerant tools. All of it is real work.

Condensate drainage is the step most often skipped and most often regretted. The drain line needs a fall of roughly a quarter inch per foot, no kinks, and a clean route to a drain or an exterior exit. An improperly sloped drain line is the single most common cause of water dripping down a wall, and it is entirely avoidable during install.

How to Size a DIY Mini Split for Your Room in 2026

Sizing is where most homeowner mistakes happen, and most sizing charts online are too vague to use. The useful version ties capacity to square footage, climate, sun exposure, and ceiling height, and it tells you what happens when you get it wrong in either direction.

BTU Sizing From Square Footage

The rough rule is 20 BTU per square foot for a moderate climate, adjusted for conditions. A 300 sq ft bedroom needs about 6,000 BTU, a 500 sq ft office about 10,000 BTU, and a 700 sq ft living room around 14,000 BTU. Those numbers are starting points, not conclusions, and three variables move them substantially.

Add for a low ceiling by treating it as a smaller space, add for west or southwest sun exposure with a glass wall, and add for a warm climate where the unit runs many hours at high load. Subtract for heavy insulation, shade trees, and a room with limited window area. The units in this roundup cover 11,500 BTU for 550 sq ft at one end and 18,000 BTU for 750 to 1,250 sq ft at the other, so most single-room jobs land in the middle of that band.

Oversizing is a real mistake, not just an expensive one. A system that is too large cycles on and off constantly, which shortens compressor life, does not improve comfort, and can fail to dehumidify properly because it runs too briefly. Undersizing leaves the room short of capacity on the worst afternoon of the year, and the unit runs at maximum continuously, which is where the electrical draw becomes unpleasant.

115V vs 230V and the Circuit You Need

Six of the eight systems in this roundup run on 208-230V, and the Senville LETO and the ROVSUN are the only two that will work with a lighter circuit, with the ROVSUN being the only 115V system here. That single difference decides whether your install is a weekend project or a two-week project involving a permit, a new breaker, a heavier wire run, and possibly a panel upgrade.

A 115V circuit means you can use an existing receptacle with an appropriate branch circuit, which is why the ROVSUN matters for a garage or a workshop where an outlet already exists. A 230V system needs a dedicated circuit, typically 10 or 12 gauge depending on the manual and local code, with a disconnect mounted within sight of the condenser and outside the structure where required.

Check the manual for the maximum fuse rating before you size the wire, and treat any electrical work beyond plugging into an existing compliant receptacle as work for a licensed electrician. Electrical is the part of this install that carries genuine risk and that inspectors actually check.

Single Zone vs Multi Zone

Every product in this roundup is single-zone, meaning one indoor head served by one condenser. That is the right answer for a garage, a bedroom, a workshop, or an addition, and it is the only configuration most homeowners installing their own system should buy.

Multi-zone systems use a single condenser with a multi-port manifold feeding two or more indoor heads, and they solve the problem of conditioning separate parts of a house from one outdoor unit. They also add real complexity, because every branch needs its own line set, and a multi-port manifold almost always means a flare fitting and a proper evacuation rather than a sealed quick-connect. That is a different install with different tools.

If your goal is whole-home comfort, a conventional ducted system or a professionally installed multi-zone design is a better fit than stacking homeowner installs.

What SEER2 Actually Saves You

SEER2 is seasonal energy efficiency ratio version 2, the current standard, and it tells you how many BTU of cooling you get per watt of electricity over a season. A 23 SEER2 unit uses roughly 30 percent less power than a 17 SEER2 unit for the same cooling output, which is why the efficiency spread in this roundup matters more than most buyers expect.

The arithmetic depends entirely on run time. A 17 SEER2 unit in a small bedroom used four hours a day costs very little to run, so the efficiency premium never pays for itself. A 17 SEER2 unit in a garage or shop running 14 hours a day in summer, over ten years, costs considerably more in electricity than the same space on a 23 SEER2 system.

Count heat pump mode too. Units rated for 10 HSPF2, like the DELLA Optima, are more efficient at heating than at cooling, which is a real advantage in a climate where the system does double duty.

Cold Climate Ratings That Survive Real Weather

Minimum operating temperature is the number to treat carefully. It tells you the lowest outdoor temperature at which the unit will keep running. It does not tell you how much heat it produces there, and the two are very different. The market ranges here from 5F on the Senville, the Cooper and Hunter, and the YITAHOME, to -4F on the DELLA Vario, to -13F on the Rellytech and the DELLA Optima.

Owners of systems rated well below freezing still report reduced heat output in single-digit temperatures, and a condenser coil that accumulates ice in deep cold can reduce output further until the defrost cycle clears it. If you are in a heating-dominated climate, the honest question is whether the unit is your primary heat or a supplement, and how much backup you have.

For most of the country, a system with a 5F floor is entirely adequate as a secondary heat source. Above that line, the -13F units are the safer choice.

Installation Reality Check: What You Can Do and When to Call a Licensed Tech

Almost everything in a ductless install can be done by a competent homeowner. The exceptions are refrigerant work on an opened circuit, electrical work beyond a compliant existing receptacle, and anything your local code reserves to a licensed trade. Knowing which is which before you buy is what separates a smooth install from an expensive one.

What You Can Legally and Safely Do

Mounting the indoor head with a proper bracket, setting the condenser on a rated pad or bracket, drilling and sealing a small penetration, hanging and securing the pre-charged line set, running the condensate drain with a continuous fall, and connecting the electrical feed to a circuit that is already correctly sized are all homeowner work in most jurisdictions. None of them touches the sealed refrigerant circuit.

What is not homeowner work is cutting, flaring, or opening the refrigerant circuit on any system, and that includes many of the pre-charged units here once the line length changes. If your install requires that, call a technician. This is a safety and warranty boundary, not a skill judgement.

What To Do Before You Buy

Ask three questions before you spend anything. First, will a local HVAC contractor service equipment you purchased yourself, and if not, will they at least commission it for a fee? This is a widespread refusal among contractors, and finding out after installation leaves you with a system nobody will touch.

Second, check your local permit requirements for a mini split. Some jurisdictions require a permit and an inspection even for a sealed system, and the inspection can fail on line routing, support spacing, or the electrical disconnect.

Third, read the warranty conditions for registration deadlines, documentation requirements, and installation standards. Register the unit immediately, and keep the invoice and the install photos. A warranty that requires proof of professional installation is not a warranty you want to discover you do not qualify for.

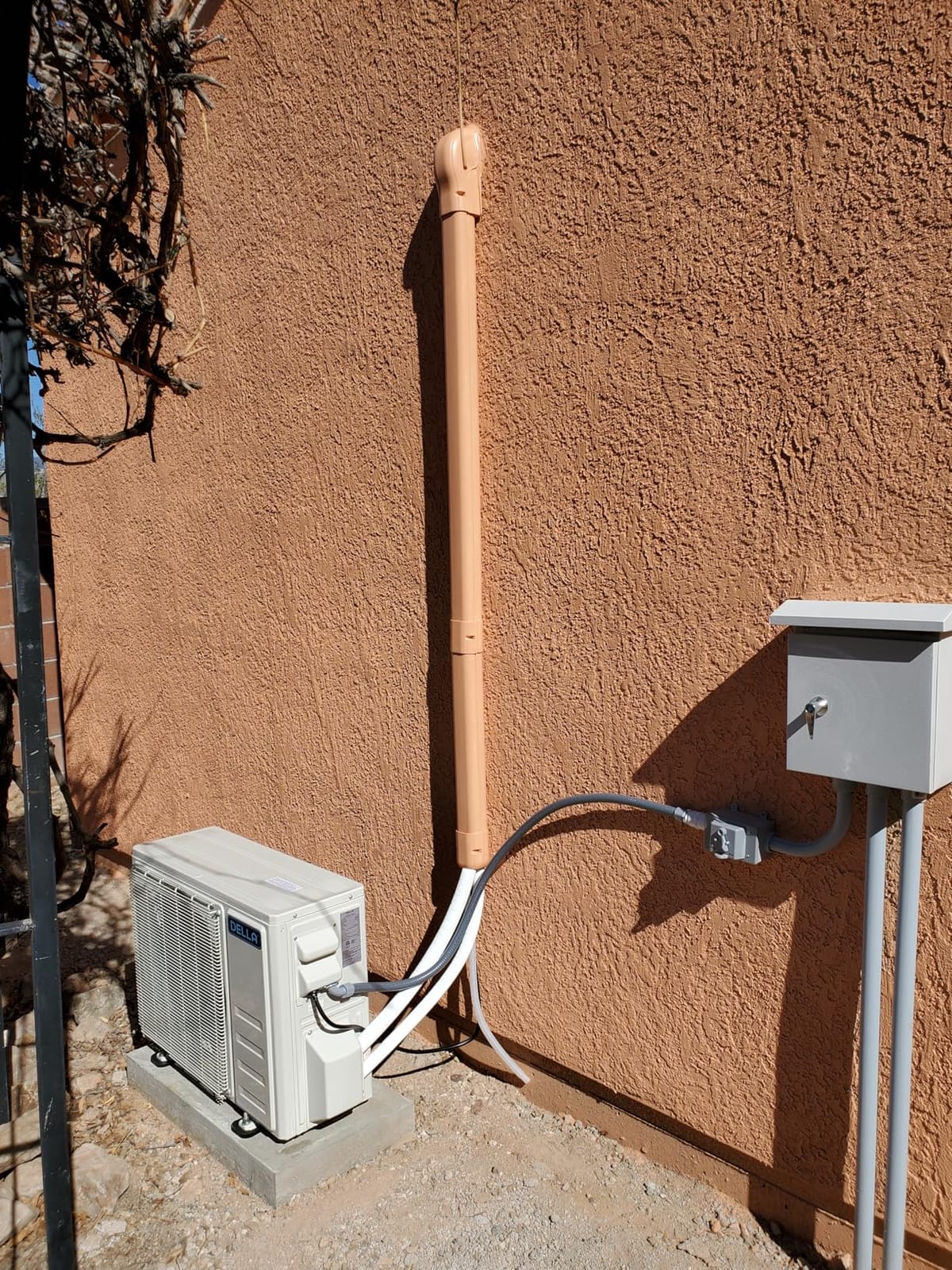

Line Hide, Drain Routing, and the Cosmetic Finish

The 16 ft line set that ships with most of these systems is not going to be hidden on its own. A snap-together line hide channel, a slim cover, or a conduit run along the exterior gets you a clean look, and sealing the penetration with appropriate caulk or firestop keeps water and insects out. Budget time for this, because it is the step that separates a finished install from an unfinished one.

Route the drain line separately from the line set if you can, with a continuous fall and a clean-out point you can reach. If the drain exits outside, aim it away from the foundation and confirm it drains rather than runs along the wall.

If you are finishing a room rather than a utility space, the same planning discipline applies as any other finish work on the house. Our guide to repairing equipment at home walks through diagnosing a problem before you start taking it apart, which is the right approach when a line set does not go where you planned.

When to Call a Licensed Tech

Call a technician if the refrigerant circuit has to be opened, if the electrical work exceeds an existing compliant circuit, if your jurisdiction requires a permit you are not prepared to pull, or if you discover something unexpected behind the wall where the line set needs to run. There is no shame in that call, and it is much cheaper than a failed system.

Many homeowners use a hybrid approach, which the owners forums describe as the one that actually protects the system: you do the mounting, routing, and electrical rough-in, and you pay a licensed tech to make the refrigerant connection, evacuate where required, and commission. That split gets you most of the labor savings while removing the step most likely to cause early failure.

The Tools a First-Time DIY Mini Split Installer Actually Needs

Here is the honest version: if you buy a sealed pre-charged quick-connect system and use the line set at its supplied length, you need hand tools and a level, not refrigerant equipment. The expensive tool set belongs to conventional installs.

Tools for a Pre-Charged Quick-Connect Install

You need a stud finder and a drywall saw, a level, a drill and driver bits, a crimping tool for the new wiring, a tube cutter in case you need to trim the electrical, a wet vac or a shop vac, sealant and foam for the penetration, and line hide or conduit for the exterior run. A multimeter for verifying the circuit is de-energized before you touch anything in the electrical panel.

Add a proper condensate plan, since the most common homeowner complaint is water where it should not be. A flexible drain line, a pipe strap every few feet, and a flush route will handle it.

Tools for a Conventional Flare Install

Conventional installs, and any pre-charged system where the line length changes, need a vacuum pump, a manifold gauge set, a flaring tool, a recovery machine, and a refrigerant scale. Combined, that equipment runs into the hundreds, which is why it exists as a barrier for first-time installers and why many of the systems in this roundup explicitly say vacuuming is required.

If you are not sure which category your install falls into, assume it needs the full tool set and price a technician visit for the refrigerant step. It is a small line item compared with replacing a system that failed early from a contaminated charge.

One more practical habit, learned from people who plan these projects well: measure the whole route before you order. Confirm the line set length covers the run with service slack, confirm the pad or bracket is ready, and confirm the circuit is in place before the unit arrives. Most install-day problems are actually purchase-day mistakes.

Frequently Asked Questions

Which DIY Mini Split Is Right for Your Home?

If you are conditioning a single room under about 700 sq ft and want the quietest indoor operation with the deepest owner record, the Senville LETO 12000 BTU is the pick, and it also runs on an easier 110V circuit. If you need more capacity and better efficiency for a garage, workshop, or addition, the DELLA Vario 18000 BTU at 21 SEER2 is the value choice, with the caveat that its maker specifies vacuuming.

If the electrical is the obstacle, the ROVSUN 11500 BTU is the only system here that uses a standard receptacle, at the cost of a 550 sq ft ceiling and a one-year warranty. If winter heating is the deciding factor, the Rellytech 18000 BTU runs to -13F and carries an 8-year warranty, while the DELLA Optima pairs 23 SEER2 efficiency with a Gold Fin coil rated to the same temperature.

If the indoor head goes next to your bed, the Mountman 18000 BTU at 26 dB is the quietest option we found. If you are in a heating-dominated climate and value warranty clarity above everything else, the Cooper and Hunter 18000 BTU states 7 years on the compressor and 5 on parts. And if air quality in a workshop is the actual problem, the YITAHOME 18000 BTU adds ion, electrostatic, and particulate filtration, with the lowest owner rating of the group at 4.1.

Whichever one you choose, confirm three things before you buy: that a local contractor will service equipment you purchased yourself, that the line set length matches your actual run, and that the circuit exists before the unit arrives. Those three checks prevent most of the problems we read about in owner reviews, and they cost nothing.

For further reading on planning and measuring a project properly before you start, see our guide to fixing an adjustable turret, which follows the same measure, verify, and recheck sequence that keeps a ductless install clean.
