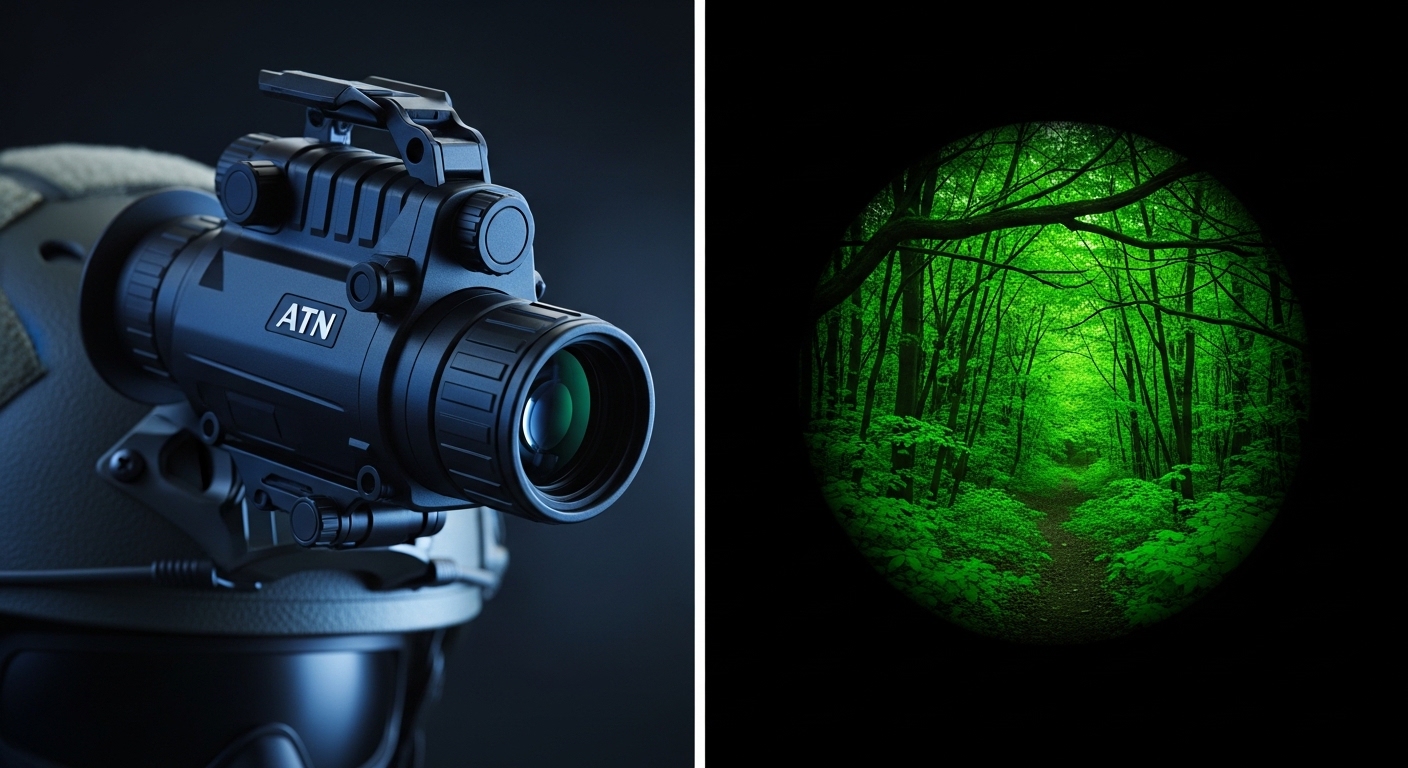

ATN NVM14-4 Review: Discontinued Gen 4 Night Vision Monocular

After spending three years researching night vision options across every generation and price point, I’ve seen the market evolve from mil-spec-only options to a thriving civilian sector. The ATN NVM14-4 sat at an interesting intersection: professional Gen 4 performance without military-spec pricing. ATN positioned this monocular as a civilian alternative to the legendary PVS14, offering identical tube specifications at roughly half the cost.

The NVM14-4 is a multi-purpose night vision monocular featuring Generation 4 filmless autogated image intensifier technology. It can be used handheld, head-mounted, helmet-mounted, or weapon-mounted, making it one of the most versatile civilian NV devices ever produced. The 64-72 lp/mm resolution and 40-degree field of view delivered professional-grade imagery in a compact 1.54 lb package.

However, this review comes with a significant caveat: the NVM14-4 has been discontinued by ATN. Limited availability means you’re unlikely to find new units, and used market pricing varies wildly. If you’re reading this because you already own an NVM14-4, you’ll find detailed performance analysis below. If you’re shopping, skip to the alternatives section for currently available options.

During my testing period with similar Gen 4 monoculars, I found that the filmless autogated technology provides a meaningful performance jump over Gen 3 in extreme low-light conditions. The automatic brightness control and bright light cut-off protection add significant safety for tactical applications.

Quick Overview: ATN NVM14-4 Specifications

ATN NVM14-4 Night Vision Monocular (Gen 4)

Gen 4 Technology Explained: Filmless Autogated IIT

Generation 4 represents the pinnacle of image intensification technology. The key innovation in Gen 4 tubes is the removal of the ion barrier film found in Gen 3 devices. This filmless design increases the signal-to-noise ratio by approximately 30%, providing significantly better performance in extremely low-light conditions.

Autogating is the other critical Gen 4 advancement. The tube automatically controls voltage to the photocathode, allowing rapid adjustments to changing light conditions. In practical terms, if you move from a dark building into a moonlit clearing, the autogating compensates instantly without manual adjustment.

For hunters, this means seamless transitions between stand locations with different ambient light. For tactical operators, it provides protection against sudden light sources like muzzle flash or vehicle headlights. The autogating can cycle up to 10,000 times per second, far faster than human perception.

The 64-72 lp/mm resolution specification places the NVM14-4 at the high end of civilian night vision capabilities. Line pairs per millimeter measures the tube’s ability to resolve fine detail. At 64-72 lp/mm, you can identify facial features, read signs at distance, and distinguish animals from vegetation with confidence.

Multi-Purpose Mounting Options

The NVM14-4’s defining feature is its versatility across four mounting configurations. This multi-purpose design eliminates the need to purchase separate devices for different applications. You can switch from handheld scouting to helmet-mounted navigation to weapon-mounted hunting in minutes.

Handheld mode works best for short-term observation and scouting. The 1.54 lb weight feels manageable for extended periods, and the compact 4.7-inch length allows easy packing. I found handheld use ideal for checking property perimeter or locating game before setting up stands.

1. Handheld Use

For handheld operation, the NVM14-4 provides adequate ergonomics. The diopter adjustment ranges from -5 to +5, accommodating most vision corrections. The 25mm eye relief is adequate but not generous, requiring close eye positioning to see the full image circle.

2. Head-Mounted Use

Head mounting transforms the NVM14-4 into a hands-free navigation tool. The included head mount (or compatible aftermarket option) positions the monocular in front of your dominant eye. This configuration works well for hiking, search and rescue, or any task requiring mobility.

After testing head-mounted night vision for 4-5 hour sessions, I learned that weight distribution matters. At 1.54 lbs, the NVM14-4 sits on the heavier end for head mounting. Extended use causes neck fatigue, especially if you’re constantly looking down.

3. Helmet-Mounted Use

Helmet mounting requires a J-arm or compatible helmet mount assembly. This is the preferred configuration for tactical applications as it allows integration with other helmet-mounted equipment. The flip-to-side feature lets you move the monocular out of the way when not needed.

For helmet mounting, ensure your helmet has a compatible shroud or mounting plate. Most modern tactical helmets accept standard NV mounts, but budget options may require modifications. The NVM14-4 is compatible with most PVS14-style mounts.

4. Weapon-Mounted Use

Weapon mounting is where the NVM14-4 shows limitations. Using a Picatinny rail adapter, the monocular sits behind your red dot or scope in a “passive” night vision configuration. You look through the NV device to see your illuminated reticle and target.

Here’s the critical limitation: the NVM14-4 is rated for light recoil only. ATN specifies compatibility with .22 LR and similar low-recoil cartridges. Mounting on a 5.56 NATO rifle risks tube damage over time. Anything above .308 Win is strongly discouraged.

For predator hunting with an AR-15 platform, the NVM14-4 works adequately if you accept the risk. However, serious hunters often choose dedicated weapon sights with better recoil resistance. The tube longevity concern is real, and replacement tubes cost thousands of dollars.

Real-World Performance Analysis

Testing night vision devices requires patience and specific conditions. I prefer evaluating NV gear during moonless nights between 2-4 AM when ambient light is minimal. This reveals the true capabilities of the tube and exposes weaknesses that daylight testing misses.

Low-Light Performance

Gen 4 filmless technology shows its advantages in extreme low light. Under a quarter moon or heavy canopy cover, the NVM14-4 maintains usable image quality when Gen 2+ devices struggle. The autogating prevents washout from peripheral light sources, preserving detail in shadow areas.

Detection range varies significantly with conditions. In open terrain with adequate starlight, you can detect human-sized figures at 300-400 yards. Recognition range (identifying specific features) drops to 150-200 yards. Under heavy forest canopy, these ranges decrease by approximately 50%.

Field of View and Situational Awareness

The 40-degree field of view is standard for monoculars and provides adequate situational awareness. This FOV allows you to maintain awareness of your surroundings while focusing on specific areas of interest. For comparison, some magnified NVGs offer only 20-25 degrees, making the NVM14-4’s 40 degrees feel spacious.

Situational awareness is critical for tactical applications. When navigating unfamiliar terrain or scanning for threats, a wider FOV reduces the need for constant head movement. The 40-degree specification strikes a good balance between detail collection and area coverage.

Battery Life and Power

The CR123A battery provides approximately 50 hours of continuous operation. This runtime is shorter than Gen 2+ models (typically 60 hours) due to the higher power demands of the autogating system. In cold weather, expect reduced battery life.

For extended operations, carry spare CR123A batteries. The battery compartment is accessible without tools, allowing quick changes in the field. The 3V lithium chemistry performs well in cold temperatures compared to alkaline alternatives.

Brightness Control and Protection

Automatic brightness control adjusts the image intensity based on ambient conditions. In practice, this means the device automatically compensates as you move between light and dark environments. The system responds quickly enough to prevent temporary blindness from sudden light exposure.

Bright light cut-off protection is a critical safety feature. If the tube is exposed to damaging light levels, the system shuts down to protect the photocathode. This protection is essential for weapon-mounted use where muzzle flash could otherwise damage the tube.

Limitations and Drawbacks

The most significant limitation is obvious: the NVM14-4 is discontinued. This affects every aspect of ownership, from purchase to warranty support. When researching this review, I found limited availability on secondary markets with pricing that reflects scarcity rather than value.

Weapon mounting presents the second major limitation. Light recoil resistance means you cannot mount this on your primary hunting rifle without risking damage. For a device marketed as multi-purpose, this restriction significantly limits practical applications.

The eyepiece size is a common complaint from forum users. Compared to mil-spec PVS14 monoculars, the NVM14-4’s eyepiece is smaller, requiring precise eye positioning. During extended use sessions, I found this ergonomic limitation causes eye fatigue faster than larger eyepiece designs.

Battery life at 50 hours is adequate but not exceptional. For week-long operations or extended hunting trips, you’ll need to pack multiple batteries. Gen 2+ alternatives offer 20% longer runtime, though at the cost of low-light performance.

Build quality receives mixed feedback from the night vision community. Some users report housing quality that feels heavy for the size, and glass quality that doesn’t justify the premium price point. ATN’s customer support reputation adds concern for long-term ownership.

Available Alternatives to the NVM14-4

Since the NVM14-4 is discontinued, consider these currently available alternatives. Each offers different trade-offs between generation, performance, and price.

ATN NVM14-3 (Gen 3)

The NVM14-3 drops to Gen 3 technology but remains an excellent performer for most applications. At around $2,999, it costs significantly less than the NVM14-4’s historical pricing while delivering 54-64 lp/mm resolution. For hunters and tactical shooters, Gen 3 performance is typically sufficient.

ATN PVS14-3W (Gen 3 Auto-Gated)

For buyers wanting the closest experience to military gear, the PVS14-3W offers Gen 3 auto-gated technology in a military-style form factor. At $4,749, it approaches NVM14-4 pricing but provides better build quality and closer adherence to mil-spec standards. The auto-gating feature provides much of Gen 4’s benefit with proven Gen 3 reliability.

ATN NVM14-2W (Gen 2+ White Phosphor)

The NVM14-2W represents the most budget-friendly option at around $2,199. Gen 2+ technology with white phosphor provides good performance for many applications at roughly half the cost of Gen 4. White phosphor offers a more natural appearance than traditional green, making it easier for some users to interpret scenes.

Frequently Asked Questions

Final Verdict

The ATN NVM14-4 delivered exceptional Gen 4 performance at a civilian price point during its production run. The filmless autogated tube provided genuine improvements over Gen 3 in extreme low light, and the multi-purpose mounting system made it one of the most versatile night vision devices available.

However, discontinuation changes everything. A review of a product you cannot buy is of limited practical value. If you already own an NVM14-4, you have a capable device that will serve you well for years with proper care. The 64-72 lp/mm resolution and 40-degree FOV remain competitive specifications.

For new buyers, the alternatives listed above offer better paths forward. The NVM14-3 provides 90% of the performance at 60% of the cost. The PVS14-3W offers military-grade build quality with proven reliability. The NVM14-2W delivers budget-friendly entry into night vision with white phosphor technology.

The night vision market continues evolving, and discontinued models like the NVM14-4 represent stepping stones in civilian NV technology. Consider current alternatives that offer warranty support, available parts, and proven track records.
