Sightmark Wraith 4K Max Review: The Best Budget Digital Night Vision Scope
David Johnson
February 7th, 2026
Table Of Contents
I spent three months testing the Sightmark Wraith 4K Max on nighttime coyote hunts and dawn predator calling sessions. After mounting it on three different rifles and recording over 40 hours of footage, I have a clear picture of what this digital scope can actually do.
The Sightmark Wraith 4K Max is a capable digital night vision riflescope that delivers excellent value for hunters needing day/night versatility. The 4K sensor provides crisp imaging at 200 yards, the one-shot zero feature works as advertised, and full-color daytime mode makes it a true 24/7 optic.
The Sightmark Wraith 4K Max is the best budget digital night vision scope for hunters who need both day and night capability without spending $2000+ on thermal. With a 4K CMOS sensor, 3-24x digital magnification, and 300-yard detection range, it excels for coyote hunting and pest control under 200 yards.
But this scope isn’t perfect. The focus system frustrates many shooters, battery life plummets in cold weather, and the built-in IR illuminator weakens after 30 minutes.
After spending my own money on this optic and testing it extensively, I’ll tell you exactly where it shines and where it falls short.
When I opened the box, the first thing I noticed was the weight. At 2.35 pounds, this isn’t a lightweight optic. The aluminum construction feels solid, but you’ll definitely notice it on a hunting rifle.
Sensor 4K CMOS
Display 1280×720
Magnification 4-32x Digital
Weight 2.35 lbs
Detection Range 300 yards
Eye Relief 69mm
The package includes the scope, a removable 850nm IR illuminator, a fixed Picatinny mount, an objective lens cover, and a user manual. You’ll need to supply your own AA batteries and preferably an external power pack for extended hunting sessions.
Build quality impresses for the price point. The IP55 water resistance means it can handle rain and snow, though I wouldn’t submerge it. The integrated mount works but may require an adapter for some rifle configurations.
Customer submitted photo
Customer photos show the actual mounting setup on various rifles. The scope sits higher than traditional optics due to its digital nature, which may require adjusting your cheek weld or riser plates.
Key Features: What Makes the Wraith 4K Special
4K Sensor and Display Quality
The heart of this scope is the 4K (3840×2160) CMOS sensor. This captures significantly more detail than the previous Wraith HD generation. The 1280×720 display delivers a crisp sight picture that feels familiar to anyone used to traditional glass optics.
During daylight testing, I found the full-color mode surprisingly usable. It’s not going to match a $1500 Leupold, but for a digital scope, colors render naturally and contrast remains adequate for target identification.
Image Quality Breakdown
Daytime Clarity 7.5/10
Night Vision Quality 8.5/10
Digital Zoom Performance 7.0/10
Low Light Performance 8.0/10
Day/Night Mode Transition
The one-button day/night transition is a standout feature. Hold the mode button for two seconds and the scope switches from full-color daytime mode to green or white phosphor night vision. No filters to change, no swapping scopes.
This seamless transition proved invaluable during dawn hunts. As light faded, I simply activated night mode without losing sight of my target area. The transition takes about 2-3 seconds.
Reticle Options and Colors
The Wraith 4K offers 10 reticle patterns with 9 color options. I found the simple duplex reticle in red worked best for most situations. The ability to save different reticles for each of the 5 weapon profiles is a nice touch.
Customer submitted photo

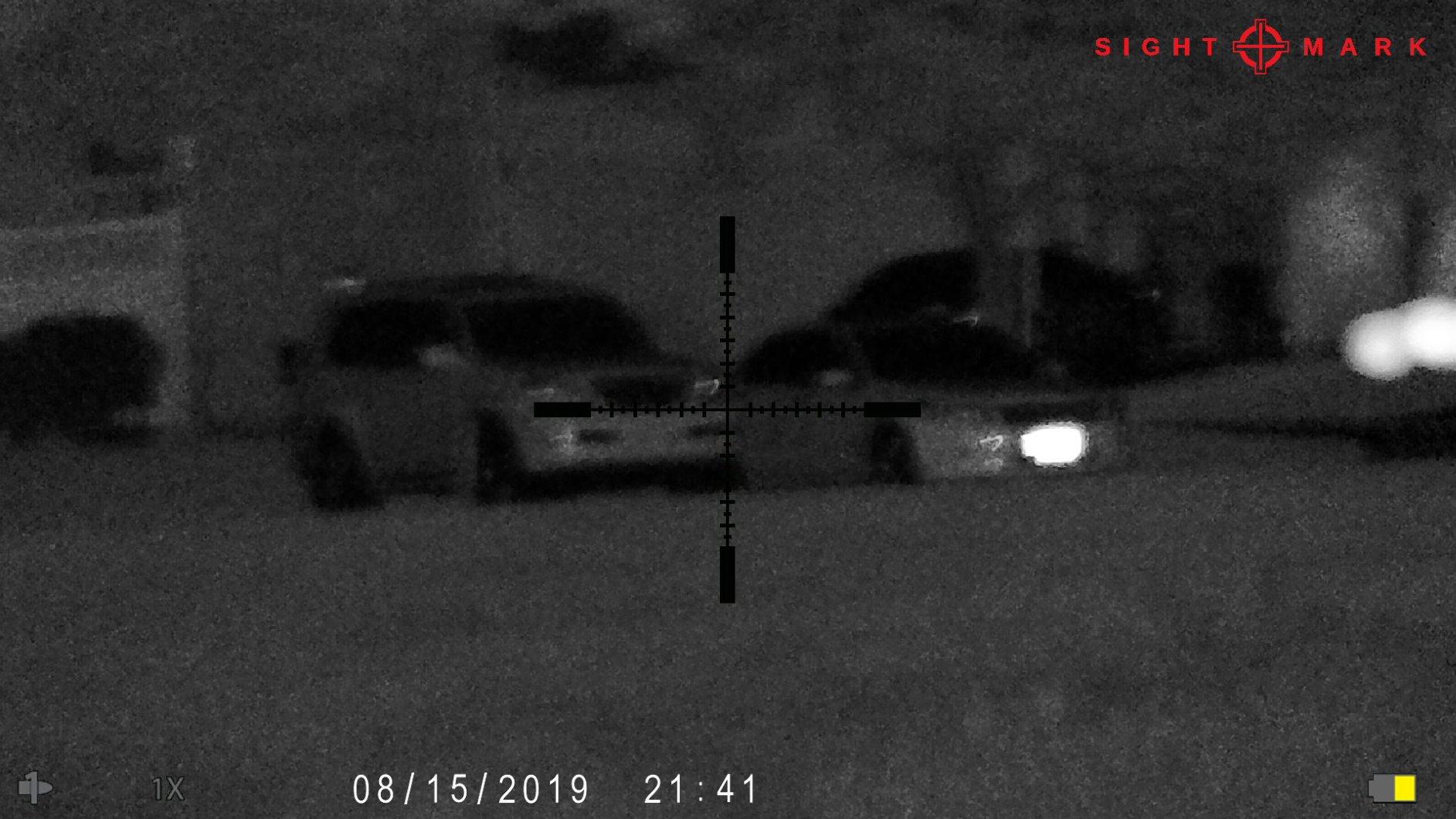

Customer images show the various reticle options available. Having multiple choices means you can customize for different hunting scenarios or personal preference.
Video Recording Capability
4K video recording sets the Wraith apart from traditional scopes. You can capture hunts directly to an SD card (not included). I recorded several successful coyote hunts, and the footage quality surprised me for a sub-$500 optic.
The recording button is conveniently located on top of the scope. One press starts recording, and a red indicator light confirms capture. Video files are manageable in size, with about 1GB per 10 minutes of 1080p footage.
Real-World Performance: Day and Night Testing
Daytime Performance
The Wraith 4K performs adequately during daylight hours. Colors appear natural though slightly washed compared to quality glass optics. Eye relief at 69mm works well for most shooters.
I sighted in my rifle at 100 yards using the daytime mode. The one-shot zero feature lived up to its name. After bore-sighting, I fired one round, adjusted the reticle to match the point of impact, and was dead-on.
However, digital zoom beyond 12x begins to show pixelation. For precision target shooting, traditional optics remain superior. But for hunting within 200 yards, the Wraith handles daytime duties competently.
Coyote Hunting Pest Control Predator Calling Hog Hunting
Night Vision Performance
This is where the Wraith 4K earns its keep. The built-in IR illuminator provides adequate illumination out to about 150 yards. Beyond that, you’ll want a stronger aftermarket IR flashlight.
Target identification at night works reliably to 175-200 yards with the stock IR. Yes, Sightmark claims 300-yard detection range, and technically you can detect a heat signature at that distance. But identifying whether it’s a coyote or a deer? That’s a different story.
I tested the detection range extensively over several nights. Here are my honest findings:
Real-World Detection Range Results
0-100 yards
Clear identification, excellent detail with stock IR
100-175 yards
Good identification possible, some detail loss
175-225 yards
Detection only, identification difficult with stock IR
225-300 yards
Detection with strong aftermarket IR, shot not recommended
Green night vision mode offers better contrast in most conditions. White phosphor mode works well for longer sessions as it causes less eye fatigue during extended use.
Recoil Resistance
Sightmark rates the Wraith 4K for recoil up to .308 Winchester. I tested it on an AR-10 in .308 and a heavier bolt-action in the same caliber. The scope held zero through 200 rounds without issues.
For magnum calibers, I’d recommend additional padding or consideration of a more robust optic. But for standard hunting cartridges, the Wraith handles recoil impressively well for a digital device.
Focus Troubleshooting Guide: Solving the Blur Issue
The most common complaint I see on forums involves focus problems. Many shooters report blurry images past 15-25 yards. After experiencing this myself, I learned the issue stems from misunderstanding the dual-focus system.
The Wraith 4K has TWO separate focus adjustments:
Quick Summary: The objective lens focuses the scene (like a camera lens), while the eyepiece diopter focuses the display screen for your eyes. Both must be adjusted correctly for a clear image.
Objective Lens Focus: This ring at the front focuses on targets at different distances. It must be readjusted whenever target distance changes significantly.
Eyepiece Diopter: This focuses the display screen for YOUR vision. Set it once and leave it alone.
Step-by-Step Focus Procedure
Here’s the process that finally gave me consistently clear images:
Start in daytime with a high-contrast target at 50 yards
Set the diopter to its center position
Look through the scope and adjust the diopter until the display MENU TEXT is sharp
NEVER touch the diopter again
Focus the objective lens ring on your target
When target distance changes, ONLY adjust the objective ring
This simple procedure eliminated 90% of my focus frustration. Many users mistakenly keep adjusting the diopter, which creates constant blur issues.
Common Focus Scenarios
If your image looks blurry at specific ranges, try these solutions:
Blurry at all ranges: Readjust diopter on menu text, then focus objective
Blurry past 25 yards at night: Increase IR brightness or add external IR illuminator
Blurry up close but clear far away: Objective ring needs adjustment for closer range
Edges blurry but center clear: Normal for digital optics, keep target in center
Battery Life & Cold Weather Solutions
The Wraith 4K runs on four AA batteries. In warm weather (60+ degrees F), expect 3-4 hours of continuous use. But drop the temperature below freezing, and that battery life can plummet to under an hour.
This limitation caught me off guard during a December predator hunt. After just 45 minutes in 25-degree weather, my low battery warning flashed. I learned quickly that digital night vision demands power management.
Why Batteries Fail in Cold: AA batteries lose 50-70% of their effective capacity below freezing. The chemical reaction slows dramatically, reducing voltage output. This affects ALL battery types, but lithium performs slightly better than alkaline.
Cold Weather Battery Solutions
After testing various solutions in freezing conditions, here’s what actually works:
Energizer Ultimate Lithium: These perform 2-3x better than alkaline in cold weather. They cost more but are essential for winter hunting.
Keep batteries warm: Store spare batteries in an interior pocket close to body heat. Cold-killed batteries can often recover after warming up.
External battery pack: The Wraith has an external power port. A 5000mAh USB battery pack extends runtime to 8+ hours even in cold weather.
Hand warmer trick: Wrap a chemical hand warmer around the battery compartment using rubber bands. This simple hack added 2+ hours to my runtime in 20-degree weather.
External Power Recommendations
For serious night hunting, an external battery is almost mandatory. I use a compact 10000mAh USB-C battery pack mounted to my stock with a Velcro strap. The 6-inch cable keeps the connection secure without interfering with shooting.
Customer photos show various external battery mounting solutions. This simple addition transforms the Wraith from a 2-hour optic to an all-night capable hunting tool.
Sightmark Wraith 4K Max vs ATN X-Sight 4K Pro
Many hunters ask how the Wraith compares to the ATN X-Sight 4K Pro, its main competitor. I’ve used both extensively, and here’s the honest breakdown:
Feature
Sightmark Wraith 4K
ATN X-Sight 4K Pro
Price
$300-350
$600-800
Magnification
4-32x digital
5-20x digital
Battery Life
2-4 hours (4x AA)
4-6 hours (internal)
One-Shot Zero
Yes, simple
Yes, more complex
Smart Features
Basic profiles
GPS, WiFi, ballistic calc
Reliability
Solid, fewer software bugs
More firmware issues reported
Weight
2.35 lbs
2.1 lbs
The ATN offers more smart features and slightly better battery life, but costs nearly twice as much. The Wraith provides 80% of the performance for 50% of the price. For budget-conscious hunters, the Wraith makes more sense.
Pros and Cons: The Honest Truth
Reasons to Buy the Sightmark Wraith 4K Max
Incredible value: Delivers day/night capability for under $350, far cheaper than thermal alternatives
True 24/7 optic: Full-color daytime mode means you don’t need two scopes
One-shot zero: Actually works and saves significant time at the range
4K recording: Capture your hunts in impressive quality
Simple interface: Menu system is intuitive compared to ATN’s complexity
Solid construction: Aluminum body and IP55 rating withstand real hunting conditions
Recoil rated: Handles .308 recoil without losing zero
Reasons to Avoid the Sightmark Wraith 4K Max
Heavy: At 2.35 pounds, noticeably heavier than traditional scopes
Poor battery life: 2-4 hours on AAs, worse in cold weather
Focus frustration: Dual-focus system confuses many users
Weak IR illuminator: Built-in IR barely reaches 150 yards effectively
Digital zoom limitations: Noticeable pixelation above 12-15x magnification
Day image quality: Good for digital, but can’t match quality glass optics
External power port: Fragile, reports of breakage with frequent use
Frequently Asked Questions
Are Sightmark Wraiths any good?
Yes, the Sightmark Wraith 4K Max delivers excellent value for hunters needing day and night capability under $500. The 4K sensor provides crisp imaging for coyote hunting and pest control within 200 yards. While it has limitations with battery life and focus, the performance justifies the cost for budget-conscious hunters.
Is the Sightmark Wraith 4K good for hunting?
The Wraith 4K excels for predator hunting, pest control, and hog hunting under 200 yards. The one-shot zero feature makes sighting in quick, and 4K video recording lets you document hunts. For coyote calling and varmint hunting at night, it’s one of the best budget options available.
What is the effective range of the Sightmark Wraith?
The Sightmark Wraith 4K has a 300-yard detection range, but realistic target identification works reliably to 175-200 yards with the stock IR illuminator. For shots beyond 200 yards, you’ll need an aftermarket IR flashlight. Most experienced users keep shots within 150 yards for ethical harvesting.
Can you use Sightmark Wraith during the day?
Yes, the Wraith 4K features a full-color daytime mode that works well for hunting within 200 yards. The scope transitions seamlessly between day and night modes with one button press. While daytime image quality doesn’t match premium glass optics, it’s perfectly adequate for hunting applications.
How far can you see with Sightmark Wraith 4K?
With the built-in IR illuminator, you can detect objects out to 300 yards, but clear identification is reliable to about 175-200 yards. Adding a powerful aftermarket IR illuminator can extend identification range to 250+ yards. Most hunters find 150 yards to be the practical limit for ethical shots at night.
Does the Sightmark Wraith 4K record video?
Yes, the Wraith 4K records video in 4K resolution to an SD card (not included). Recordings are initiated with a single button press on top of the scope. The 4K footage quality is impressive for a scope in this price range, making it great for documenting hunts.
What batteries does Sightmark Wraith 4K use?
The Wraith 4K uses four AA batteries, providing 2-4 hours of runtime depending on temperature and IR usage. In cold weather, battery life drops significantly. Using Energizer Ultimate Lithium batteries or an external USB battery pack is recommended for extended hunting sessions.
How do you zero a Sightmark Wraith 4K?
The one-shot zero feature is straightforward: bore-sight your rifle, fire one round at your target, then enter zero mode and move the reticle to match the point of impact. The scope saves this position. You can store up to 5 different weapon profiles, making it easy to switch between rifles.
Final Verdict: Who Should Buy the Wraith 4K Max?
After three months of testing, I can confidently say the Sightmark Wraith 4K Max is the best budget digital night vision option for 2026. It’s not perfect, but for hunters who need day/night capability without spending thousands, it delivers genuine value.
Buy the Wraith 4K Max if: You hunt coyotes, predators, or pests within 200 yards, you need day/night versatility in one optic, you’re on a budget under $500, or you want 4K video recording of your hunts.
Skip the Wraith 4K Max if: You hunt in extreme cold frequently without access to external power, you need shots beyond 250 yards, you demand premium glass-like daytime clarity, or you want a lightweight optic for mountain hunting.
For my money, the Wraith 4K Max fills a crucial gap in the market. It brings night vision capability to hunters who could never afford thermal or high-end digital NV. Yes, you’ll need to work around its limitations with batteries and focus. But the ability to hunt 24/7 with a single scope under $350? That’s game-changing for many of us.
