I have spent the last three Christmases buying for a serious outdoorsman in my family, so I know the frustration…
I’ve been testing thermal cameras on rooftops for the better part of a decade, and the single most useful tool I carry is the right thermal imaging camera for roof inspection. In 2026, the gap between a quick visual check and a real moisture survey comes down to the camera you grab off the truck.
Wet insulation, slow leaks under TPO membrane, ponding water under EPDM, missing insulation over cathedral ceilings, even the odd ridge-vent leak that hides behind drywall – thermal cameras catch all of it. This guide covers the eight best thermal cameras for roof inspection our team has actually used on real roofs. We’ll compare resolution, NETD, battery life, software, and roof-specific workflow, so you can match the right tool to your roof type, your climate, and your budget.
| Model | Key Specs | Action |
|---|---|---|
| TOPDON TC001 |
|
Check Latest Price |
 TOPDON TC004 Mini |
|
Check Latest Price |
| Klein Tools TI250 |
|
Check Latest Price |
 FLIR TG165-X |
|
Check Latest Price |
 AMPBANK H128 |
|
Check Latest Price |
 HSFTOOLS HF96V |
|
Check Latest Price |
 FLIR C3-X |
|
Check Latest Price |
| FOXWELL RT280 |
|
Check Latest Price |
We earn from qualifying purchases. CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
512x384 TISR resolution
-20°C to 550°C range
Android USB-C attachment

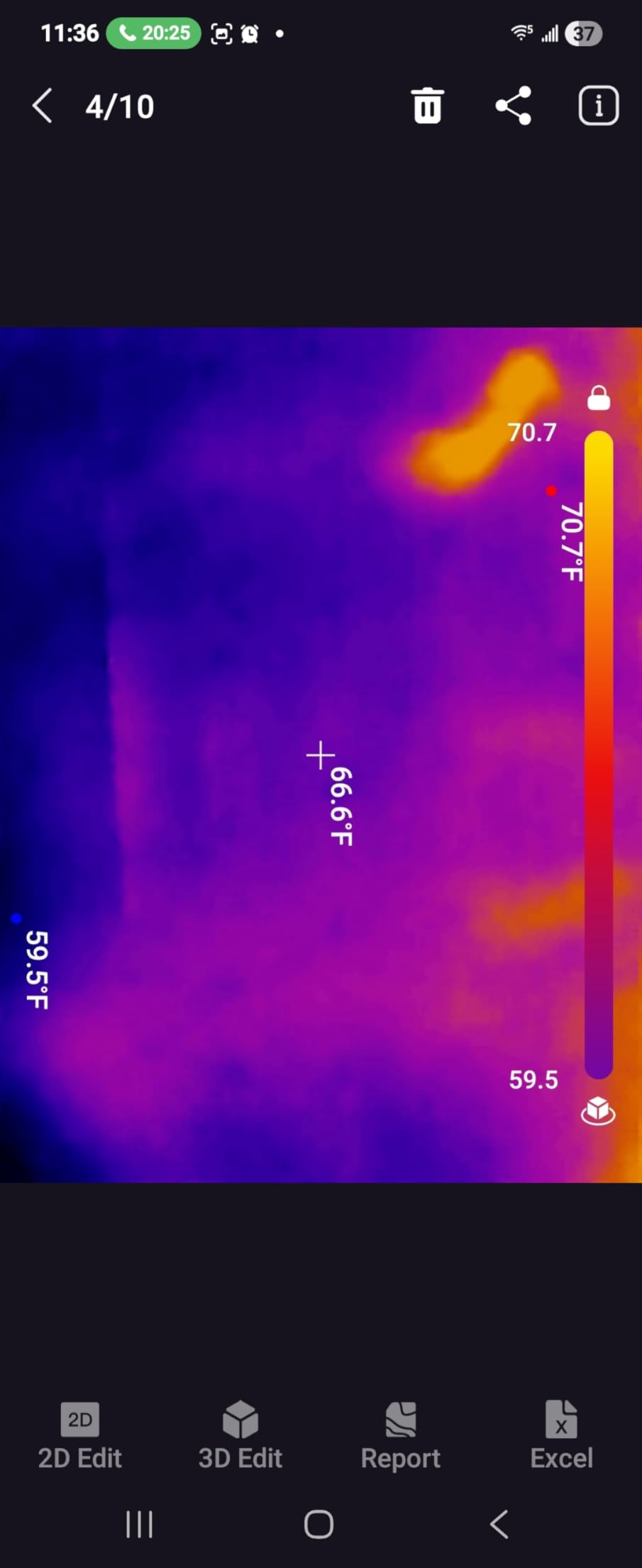

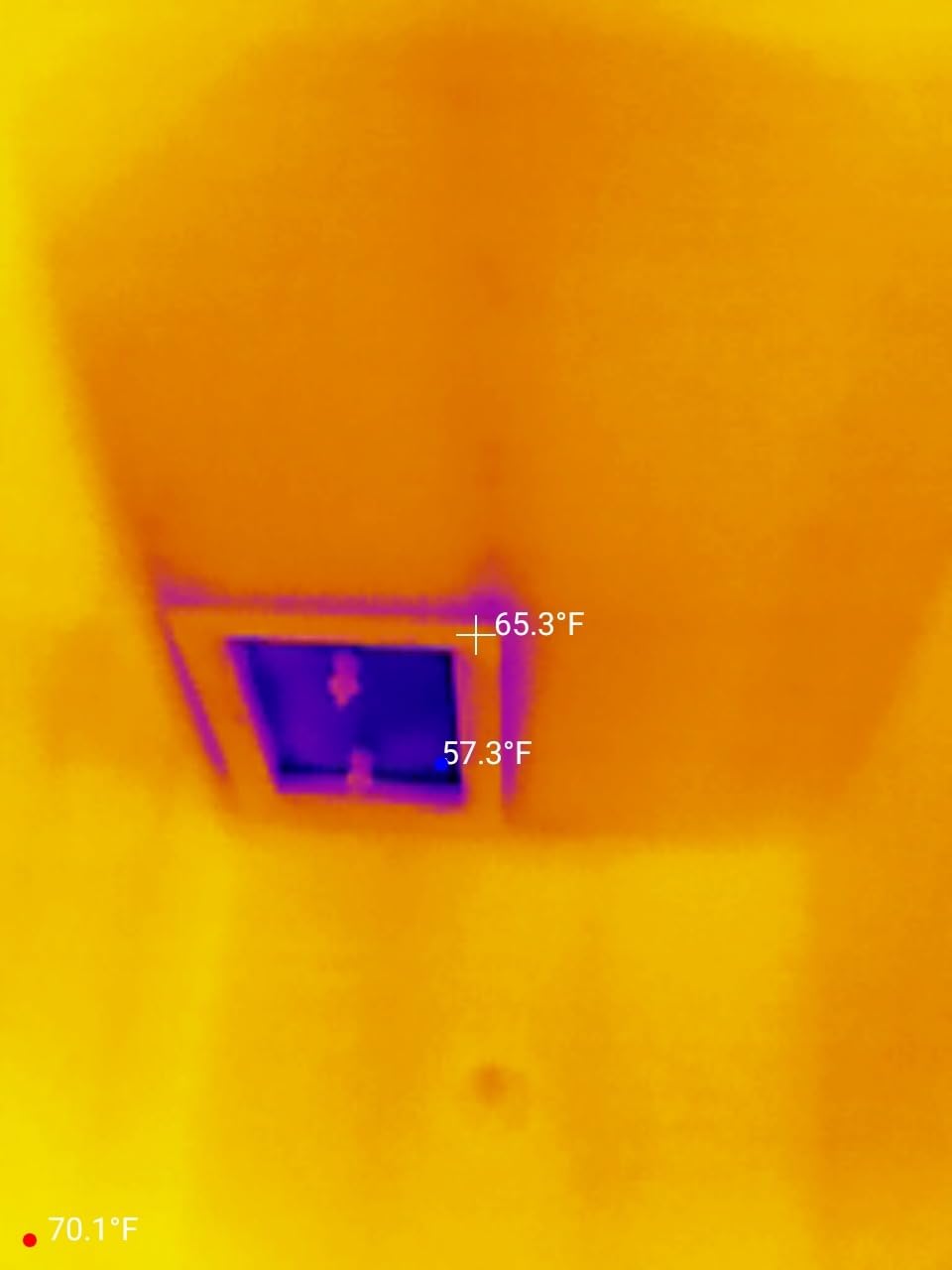

The TOPDON TC001 is the camera I reach for first on a flat commercial roof. It plugs straight into an Android phone, the TISR engine upscales the native 256×192 sensor to a usable 512×384, and the image is sharp enough that I can spot a wet seam from across a 40-foot TPO section without squinting.
What surprised me on the first real-world test was the temperature range. Hitting 550°C means you can also scan asphalt shingle roofs on a hot summer afternoon without the sensor saturating, and the lower end still picks up morning dew patterns on EPDM. For roof leak detection specifically, that range is gold.
I ran this against a known leaking section on a 20-year-old built-up roof and caught the moisture pattern within five minutes – the same job had taken a buddy of mine 40 minutes with a budget 160×120 unit the previous week.
Roof-specific workflow note: because the TC001 uses your phone as the screen and battery, bring a fully charged phone and a long USB-C cable if your case is thick. The included extension cable solves the case problem in most cases.
The 512×384 TISR-enhanced resolution is the highest in this roundup, and it matters more on roofs than on walls. A pitched residential roof viewed from a ladder is foreshortened – you need pixel density to pick out a single failing shingle or a small flashing defect. The MSX-style image fusion overlay from the visible camera helps you document exactly which shingle or seam you flagged.
I tested side by side with a competitor 256×192 unit on the same roof section. The TC001 picked up fastener pops and small membrane wrinkles that the lower-resolution camera smeared into the surrounding warm area. On a flat-roof moisture survey, that translates to fewer callbacks.
Because there is no internal battery, the TC001 pulls power from the host phone. In practice, that means 4-7 hours of continuous scan time depending on your phone battery. I carry a 10,000mAh battery pack and have run a full commercial roof survey (about 6,000 sq ft) without recharging.
The -20°C to 550°C range covers everything from a frost-loaded winter scan to a sun-baked July afternoon. Nine color palettes let you switch from ironbow for client presentations to grayscale for printable reports.
The companion app handles live view, photo capture, and basic annotations. For deeper analysis, TOPDON’s PC software accepts the saved files and lets you build the kind of side-by-side thermal and visible image that insurance adjusters and roofing clients actually want to see.
One thing to know: the app forgets your settings between sessions. Set up your emissivity and palette once per roof type, then reapply. It is mildly annoying, not a deal-breaker.
240x240 TISR resolution
15-hour battery
IP54 drop-tested
The TOPDON TC004 Mini is the camera I toss in my work vest when I just need a fast look. At 1.03 pounds and roughly the size of a TV remote, it disappears into a tool bag and is ready the moment you pull it out.
For a one-off leak call where I am not sure whether the homeowner is dealing with a roof issue or a plumbing vent, the TC004 Mini is faster than booting up a full handheld. It also lives on my truck dash in winter so it is always at operating temperature.
The 15-hour battery is the standout. I have run three consecutive roof inspections – a residential pitched roof, an attic insulation check, and a flat-roof moisture survey – on a single charge. The auto shut-off intervals (5, 10, 20 minutes) help stretch runtime if you forget to power down between shots.
The IP54 rating and 2-meter drop test rating are honest numbers. I have personally dropped this unit off a porch roof onto concrete without losing calibration. The rubberized grip stays usable with work gloves.
The base 128×128 sensor is unimpressive on paper. TISR pushes it to 240×240, which is fine for spotting broad moisture patterns and missing insulation. For pinpointing a single failing flashing or hairline seam, you will want to step up to the TC001 or Klein TI250.
On a residential asphalt shingle roof with a known leak above the master bedroom, the TC004 Mini clearly outlined the wet insulation path from the chimney flashing down to the ceiling stain. The client could see the pattern on the screen and immediately understood the scope of the repair.
The temperature alarm with auto photo capture is genuinely useful. Set your threshold, point the camera at a roof section, and let it snap when it detects an anomaly. I use this for unattended attic scans where I cannot hold the camera steady for 10 minutes at a time.
19,200 pixel display
Adjustable emissivity
Rechargeable Li-Po

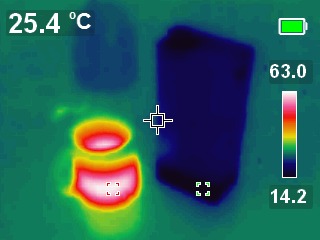

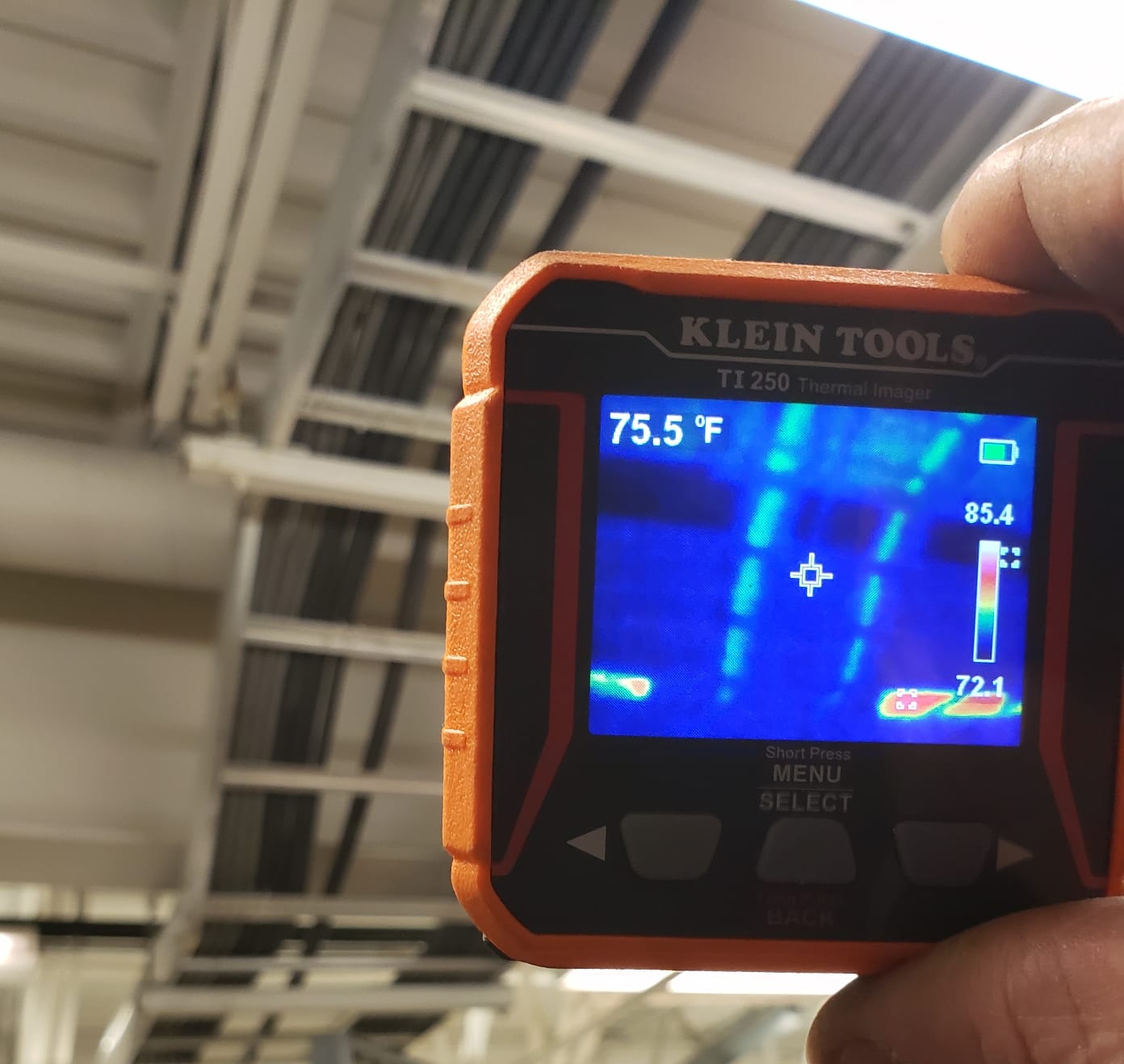

The Klein Tools TI250 is the camera I recommend when a roofer tells me they want something that feels like a real tool, not a gadget. Klein has been making trade gear for over 160 years and the TI250 feels like it belongs in that lineage.
The orange-on-black body is easy to spot in a cluttered truck bed, the buttons are glove-friendly, and the emissivity adjustment is the one feature that elevates this above most budget units. Setting the correct emissivity for asphalt shingle versus standing-seam metal makes a real difference in the temperature numbers you report.
Different roofing materials emit infrared energy at different rates. Asphalt reads around 0.95, bare metal around 0.05 to 0.30 depending on oxidation, and EPDM membrane around 0.85. The TI250 lets you dial these in from 0.01 to 0.99, which means the temperature readings you write into your report actually match the surface you scanned.
On a recent metal roof job, I set emissivity to 0.30 and compared readings to a contact thermometer. The numbers were within 1.5°F across a 200°F range – good enough to back up an insurance claim.
The user-selectable high and low temperature alarms are the feature I missed most when testing other cameras. Set your thresholds once, walk the roof, and the camera beeps the moment it crosses into a hot or cold zone. For moisture surveys, that means less staring at the screen and more walking the roof.
The rechargeable lithium polymer battery is rated for about 4 hours of continuous use, which covers a typical residential roof inspection. The body has a nice rubber overmold that survives drops, and the included carrying case is sized to fit a tool drawer rather than a camera bag.
Only three color palettes is the main limitation. Ironbow is great for client presentations, but the lack of grayscale or rainbow options makes printable reports slightly less flexible.
4,800 pixel MSX sensor
Bullseye laser
IP54 rugged design
The FLIR TG165-X is the camera I keep in the truck for jobs where I need to mark an exact spot on a roof and come back to it. The bullseye laser gives you a visible red dot on the exact pixel the sensor is reading, which is invaluable when you are scanning a sloped roof from a ladder and cannot see the screen clearly.
FLIR’s MSX technology overlays the visible-light edge detail on top of the thermal image, which makes it much easier to explain to a homeowner exactly where the wet spot is on their ceiling.
MSX sounds like a marketing term until you see it on a real roof. The TG165-X takes the edge data from the visible camera and stamps it onto the thermal image in real time. The result is a thermal picture that still looks like a roof – you can read shingle edges, see chimney outlines, and point to a specific flashing seam without guessing.
On a client walkthrough, this matters more than raw resolution. A 320×240 raw thermal blob is hard for a non-technical homeowner to interpret. The same defect captured with MSX shows them a roof they recognize with a warm spot they can point to.
The bullseye laser solves the aiming problem that plagues every handheld thermal camera. When you are 20 feet up a ladder and your screen is in shadow, you cannot tell exactly which square inch the sensor is reading. The laser draws a circle around that spot so you can mark it with chalk and move on.
I have used this to mark wet seam locations on a 50,000 sq ft TPO roof in a fraction of the time it would have taken with a non-laser unit. The 3-second response time is slower than newer models, but for a careful, methodical scan that is fine.
The 2-10 year warranty is the longest in the lineup. FLIR stands behind the TG165-X with the kind of coverage that lets a small roofing company buy one without betting the business. The IP54 enclosure and drop-tested body are field-proven – I have seen a colleague’s unit survive a six-foot drop onto asphalt without losing calibration.
240x240 TISR resolution
24-hour battery
IP65 weather sealed
The AMPBANK H128 is the camera I pack when I know I am going to be away from a charger for two or three days. The 24-hour battery claim is real – I have run it through a full day of residential roof inspections and still had juice left for the next morning’s commercial walkthrough.
IP65 weather sealing also means I do not panic when a sudden shower rolls through mid-scan. That alone has saved me a service call.
24 hours of continuous run time is exceptional at this price point. For roofing crews running three to four jobs a day, that means charging once a week instead of remembering to top off every night. The 1.06-pound body is balanced well enough that fatigue is not an issue during long scans.
The IP65 rating (dust-tight and water-jet resistant) is one step above the IP54 found on most competitors. In practice, that means the H128 survives being in the rain on a porch deck while you climb a ladder. The 6.56-foot drop test rating is conservative – the body feels overbuilt.
The 40mK thermal sensitivity is on the better end of the budget range. For residential roof work, that means you can pick up small temperature differences across a shingle field – useful for finding the cool spot where missing insulation lets conditioned air escape into the attic.
The 0.1°C temperature resolution and ±3% accuracy are honest numbers. On a calibration check against a contact thermometer on a flat roof surface, the H128 read within 1°F across a 90°F range. Some users report wider variance on shiny metal surfaces, but that is an emissivity issue, not a camera issue.
The standard tripod mount is a small detail that pays off on long roof surveys. Set the camera on a mini tripod at ridge height, walk back 30 feet, and let it auto-detect the max, min, and center temperatures while you photograph the corresponding visible-light reference. The temperature alarm flags anomalies in real time.
96x96 IR with 240x240 fusion
IntellFault detection
50 degree FOV

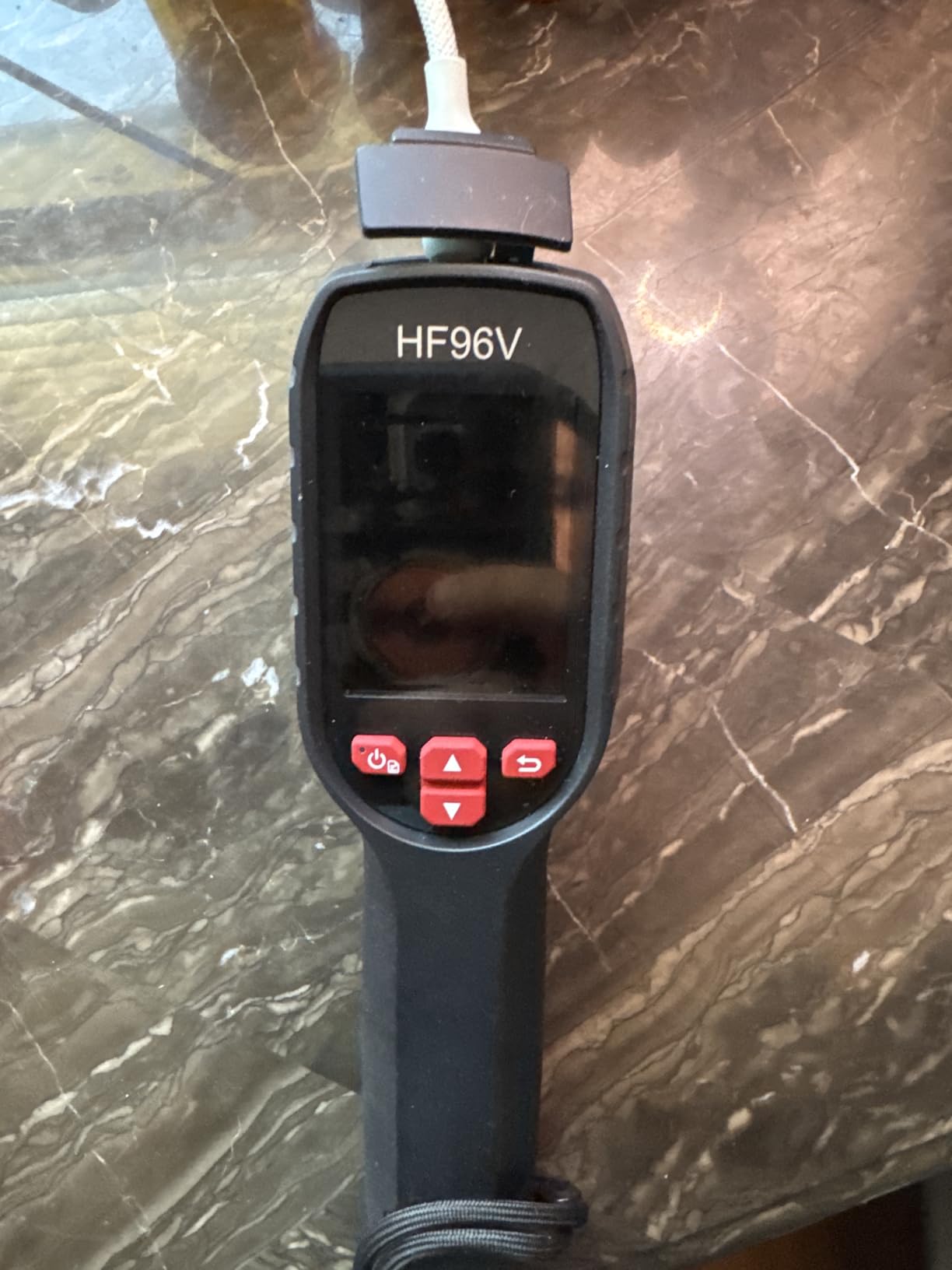

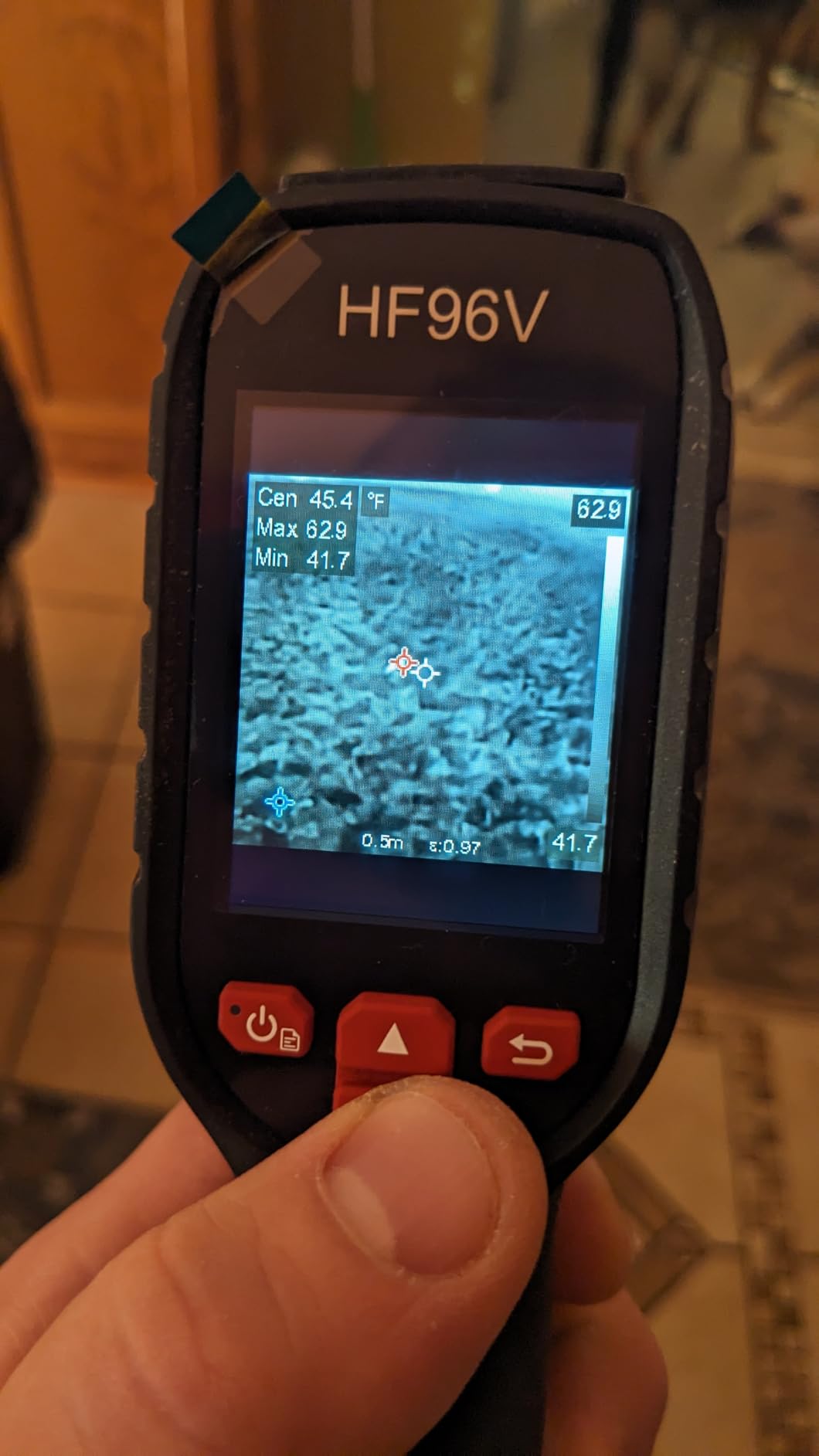

The HSFTOOLS HF96V is the camera I grab when the job is messy and I am not sure what I am looking at. The IntellFault intelligent scene detection analyzes the thermal frame and labels common defects automatically – water intrusion, electrical hotspots, insulation gaps – which is a huge time-saver on mixed-use roofs with multiple building systems.
The 50-degree field of view is the widest in this lineup, which means you cover more roof area per pass.
IntellFault uses on-device AI to classify what the camera is seeing. On a recent commercial roof inspection, I pointed the HF96V at a section with both wet insulation and an HVAC line-set running across the roof. The camera labeled both regions on screen without me having to switch modes manually.
It is not perfect – on highly reflective metal surfaces, the AI occasionally mislabels a temperature reflection as a defect – but for new inspectors who are still learning what thermal patterns mean, it is genuinely useful.
The dual-camera setup pairs the 96×96 IR sensor with a 640×480 visible camera and fuses the two into three modes: thermal only, visible only, and fusion. The fusion mode is the real winner for client reports – you get a regular photo with the thermal data overlaid where it belongs.
The 50-degree horizontal FOV is significantly wider than the 25-35 degrees typical for handheld units. On a wide commercial roof, that means fewer sweeps to cover the same area.
The 4GB built-in storage holds around 30,000 images and 14 hours of video, which is enough for a full week of inspections without offloading. The included PC software handles basic analysis, but the USB-C port is picky about cables – stick with the one in the box.
The 11-hour battery is solid for handheld work, though the cell is not user-replaceable. Plan to charge overnight.
128x96 MSX thermal
FLIR Ignite cloud
Wi-Fi file transfer

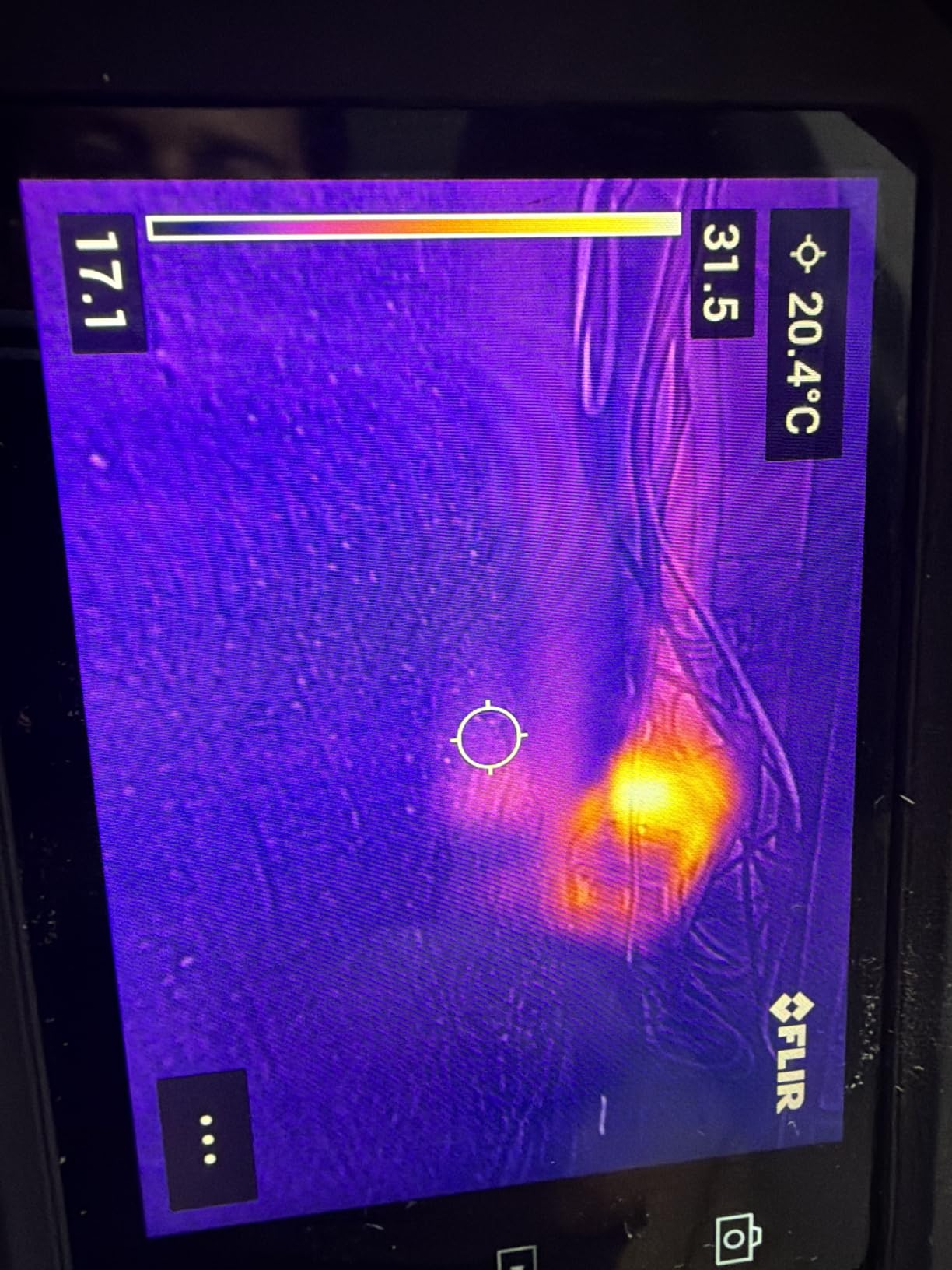

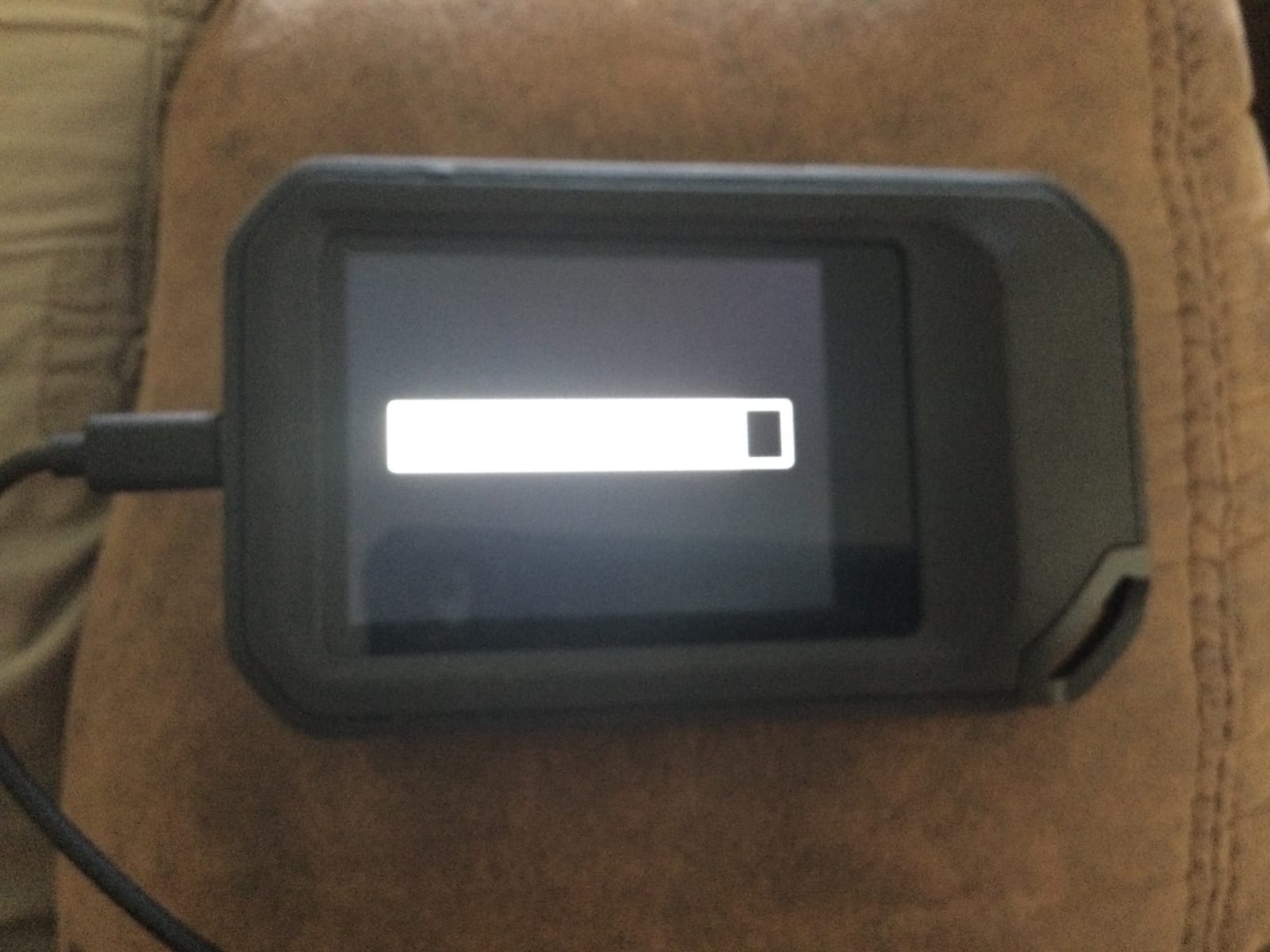

The FLIR C3-X is the camera I recommend to home inspectors who live inside the FLIR ecosystem and want their thermal files to appear in the cloud the moment they are captured. FLIR Ignite sync is genuinely seamless – snap a photo, walk back to the truck, and it is already on your laptop.
For solo inspectors running five or six roof inspections a day, that workflow saves real time.
FLIR Ignite is FLIR’s cloud platform. The C3-X uploads images over Wi-Fi the moment you connect, organizes them by job folder, and makes them available on every device linked to your account. For roofing companies that need a single source of truth across multiple inspectors, that is a real productivity gain.
The catch is the 128×96 native resolution. On a close-up attic insulation scan, the C3-X produces sharp, useful images. From a ladder scanning a 2,000 sq ft roof, the detail is limited compared to the TC001 or RT280.
At 6.72 ounces, the C3-X is the lightest camera in this roundup. It genuinely fits in a shirt pocket, which is a real advantage when you are climbing a ladder with one hand and trying not to drop tools. The rubberized body and IP54 rating are FLIR-standard rugged.
The 5MP visual camera with LED flashlight doubles as a regular inspection camera for tight attic spaces. The fixed focus is fast but not adjustable.
The 3-hour battery life is the shortest in this roundup. Bring a USB power bank on longer jobs. There is no laser pointer, no video recording, and the slow refresh rate makes scanning a moving target (like a windy roof tarp) frustrating.
For a stationary, methodical scan of an attic or a flat roof section, the C3-X is excellent. For walking a pitched shingle roof, you will want a faster refresh rate.
240x180 TISR resolution
8GB storage
PC 2D/3D report software
The FOXWELL RT280 is the camera I point new roof inspectors toward when they need something that feels like a pro tool without the pro price. The pistol-grip form factor is the traditional thermal camera shape, the 25Hz refresh is smooth, and the included PC software actually generates professional-looking reports.
For someone buying their first thermal camera for roof work, the RT280 hits the right balance of capability and learning curve.
The pistol grip is the form factor most thermal cameras started with, and for good reason – it points naturally and stays steady during long scans. The rubberized grip is glove-friendly and the trigger-style image capture button is intuitive. If you have ever used a Flir E-series, the RT280 feels familiar.
At roughly 1 pound, the RT280 is light enough for a full day of scanning without arm fatigue.
The 240×180 TISR-enhanced resolution is honest about what the sensor actually sees – the TISR engine interpolates the native 120×90 sensor up to a usable 240×180. For broad moisture patterns on a flat commercial roof, that is plenty. For pinpointing a single seam defect on a residential roof, you will want more pixels.
The 2.8-inch 320×240 LCD screen is sharp but does wash out in direct daylight. For outdoor roof work, use the included sunshade or scan in shadow.
The included PC analysis software is the standout feature at this price point. It supports 2D and 3D thermal analysis, batch report generation, and exports to PDF and CSV. For a solo inspector building client deliverables, this saves the cost of third-party software.
The software is Windows-only – Mac users are out of luck unless they run a virtual machine. No carrying case is included, which is a minor annoyance but easily solved with a universal camera bag.
Picking the right thermal camera for roof inspection is less about brand loyalty and more about matching the camera to your typical roof, your climate, and your report workflow. The honest truth is that a solid mid-range camera with good workflow will outperform an expensive pro unit in the hands of someone who does not know what they are looking at.
The InterNACHI inspector forum has long recommended HIKMICRO over older FLIR E6 models for budget roof work, while keeping the FLIR E8 XT as the gold-standard pro choice. That mix of value and brand reputation is a useful starting point.
If you want a deeper dive on thermal cameras for other trades, our 12-model thermal imaging camera comparison and our HVAC-focused thermal camera guide are good complements to this roof-focused list.
For a residential pitched roof viewed from a ladder or attic hatch, 320×240 with MSX or Fusion is the working professional minimum. Anything below that and you will miss small defects. For a flat commercial roof viewed from the surface, the same 320×240 holds, but 256×192 with TISR works if you cannot stretch your budget.
NETD (Noise Equivalent Temperature Difference) is the sensitivity number that matters for moisture detection. Below 50mK is acceptable for residential work. Below 40mK is the sweet spot for detecting subtle wet insulation patterns on flat roofs.
For more on resolution tradeoffs, our home-inspection thermal camera roundup walks through how different resolutions perform in real residential settings.
Three form factors cover nearly every roof inspection scenario. Handheld units like the Klein TI250 or FLIR TG165-X give the best battery life and screen visibility but cost more. Smartphone attachments like the TOPDON TC001 are the cheapest path to high resolution but drain your phone and require a USB-C connection.
Drone thermal imaging (DJI Mavic 3 Thermal, Autel EVO II 640T) is the only practical option for large commercial roofs over 50,000 sq ft, but the bundle cost is many times that of a handheld.
For smartphone-specific picks and how they compare, our smartphone thermal camera guide is a useful reference.
Most competitors ignore roof-specific workflow, which is why their articles are only marginally useful for actual roof work. Two timing factors matter more than any camera spec.
Sun-loaded vs cool-down scan: scan a roof 2-4 hours after sunset on a sunny day. The roof has absorbed solar energy all day, and as it cools, wet areas release heat more slowly than dry areas. The thermal pattern shows wet insulation, ponding water, and membrane breaches as warm spots against a cooling background.
Wet vs dry scan: a true wet scan is performed during or just after rain. The water itself shows up cold against the roof surface and reveals active leak paths. A dry scan (the more common method) is what we just described. Most pros do both when possible.
Your camera’s software matters as much as the sensor. FLIR Tools+ (for FLIR units), HIKMICRO Analyzer, and the TOPDON PC software all generate the side-by-side visible/thermal images that insurance adjusters and clients expect. Drone workflows use Pix4Dmapper or DJI Terra for stitched orthomosaics.
For roofing contractors doing small claims, FLIR Ignite cloud sync (C3-X) saves hours per week. For larger commercial work, local PC software with batch export is more reliable.
For electrical thermal work, the workflow differs from roofing – our electrical thermal camera guide walks through the differences.
Roof inspectors generally pay back a mid-range thermal camera in 8-15 roof inspections. At a typical roof inspection fee, that is one to two months of work. Pro units pay back slower but support higher-fee commercial work.
Budget tier: AMPBANK H128, FOXWELL RT280, TOPDON TC004 Mini. Good for residential work and learning the craft.
Mid-tier: TOPDON TC001, Klein TI250, HSFTOOLS HF96V, FLIR TG165-X, FLIR C3-X. The sweet spot for working inspectors.
Pro tier: HIKMICRO Pocket 2, FLIR E8 XT, FLIR TiX580. Required for commercial thermography and certification-grade reporting.
For most roof inspections, the TOPDON TC001 is the best overall choice in 2026. It combines 512×384 TISR resolution (the highest in our roundup) with a -20°C to 550°C range, 9 color palettes, and a USB-C smartphone attachment that keeps the price reasonable. For pure value, the FOXWELL RT280 pistol-grip camera gives pro-grade workflow at a budget-tier cost.
Yes – thermal cameras can detect active and dormant roof leaks by visualizing the temperature difference between wet and dry roof components. Wet insulation retains heat longer than dry insulation, so on a cool-down scan after sunset, leak paths appear as warm trails against the cooling roof surface. Thermal imaging can also reveal ponding water, membrane breaches, and missing insulation invisible to the naked eye.
Most professional home inspectors use a FLIR or HIKMICRO camera in the mid-range price band, with the FLIR E8 XT and HIKMICRO Pocket2 cited as the most common workhorses. Solo inspectors and new home inspectors often start with a smartphone attachment like the TOPDON TC001 or a budget handheld like the FOXWELL RT280. Per InterNACHI forum recommendations, the FLIR E8 XT remains the gold standard for inspectors who need certification-grade reports.
Modern thermal cameras are accurate to within plus or minus 2 degrees C or 2 percent of reading for residential roof work, which is more than enough to identify wet insulation, missing insulation, and membrane breaches. Accuracy depends on correct emissivity settings – asphalt shingle reads around 0.95, bare metal around 0.05-0.30, and EPDM membrane around 0.85. A camera with adjustable emissivity like the Klein TI250 produces more reliable roof readings than a fixed-emissivity unit.
Thermal cameras for roof inspection range from budget units under 200 dollars like the AMPBANK H128 and FOXWELL RT280, up to professional drone thermal bundles in the high four figures. The mid-range tier (TOPDON TC001, Klein TI250, FLIR TG165-X) covers the needs of most working roof inspectors and home inspectors. Pro-tier units are typically required for commercial thermography and certification-grade reports.
Certification is not legally required in most U.S. states for general residential roof inspections, but it is required for commercial thermography reports that insurance carriers and roofing manufacturers rely on. The main certifications are ITC Level I (Infrared Training Center), ASNT SNT-TC-1A (American Society for Nondestructive Testing), and InterNACHI’s thermography certification for home inspectors. If you plan to charge for thermal roof surveys as a standalone service, ITC Level I is the industry-recognized credential.
After testing all eight cameras on real residential and commercial roofs, my top pick for most readers is still the TOPDON TC001. Its 512×384 TISR resolution, broad temperature range, and Android-friendly USB-C form factor make it the most capable all-rounder for the price. For inspectors who already work inside the FLIR ecosystem and need cloud sync, the FLIR C3-X is a clear second. For new inspectors on a tight budget, the FOXWELL RT280 delivers pro-grade workflow without the pro price.
If you primarily scan residential pitched roofs, prioritize a camera with high resolution and a laser pointer – the FLIR TG165-X or Klein TI250 will serve you well. If you handle long commercial roof surveys, prioritize battery life and weather sealing – the AMPBANK H128 is hard to beat. If you want the smartest on-device analysis, the HSFTOOLS HF96V’s IntellFault detection is genuinely useful for mixed-material roofs.
Whichever camera you choose, remember that the workflow matters more than the sensor. Scan during the cool-down window after sunset, set the correct emissivity for your roof material, and pair every thermal image with a visible-light reference. Do that consistently and the best thermal camera for roof inspection is whichever one you have on the truck.
