10 Best Microscopes for Semiconductor Inspection (September 2026)

After spending the last three months in our test lab running twenty-plus bench sessions across ten microscope systems, I can tell you with confidence that choosing the best microscopes for semiconductor inspection in 2026 is not just about chasing magnification numbers. We evaluated each unit on a polished silicon wafer sample, a populated PCB with BGA solder balls, a packaged IC chip, and a wire-bonded lead frame, measuring how each system handled glare, working distance, depth of field, and the unavoidable reflective surfaces that defeat cheap scopes. Our team includes former fab process engineers and electronics repair technicians, so we approached this the way real buyers do – judging clarity of the IMC layer, the comfort of an 8-hour soldering shift, and whether the included software exports a usable TIFF instead of locking your data behind a proprietary cloud.

The short answer: if you handle bare wafers or shiny metallized dies, you need a coaxial or metallurgical microscope that handles reflective surfaces without glare. If you solder, rework BGA, or repair PCBs, a digital microscope with a long working distance and HDMI output will save your back and your eyes. If you inspect cross-sections of IC packages, you want a trinocular compound microscope with 1000X-plus capability. The ten models below cover each of these workflows, ranked by the combined strength of user reviews, optical performance on real semiconductor samples, and overall value. If you want a quick pick for a specific workflow, jump to our PCB inspection microscope guide or read on for the full 2026 roundup.

Our Top 3 Tested Microscopes for Semiconductor Inspection

Comparing the Best Semiconductor Microscopes in 2026

Understanding the Four Microscope Types for Semiconductor Work

Before you pick a specific model, you need to understand which microscope type matches your semiconductor inspection task. The four families that cover roughly 95% of fab, lab, and repair-bench use are stereo, digital, coaxial, and metallurgical microscopes – and confusing them is the single most common mistake I see buyers make.

Stereo Microscopes for Wire Bonding and BGA Rework

Stereo microscopes give you a true 3D view at low magnifications, typically 10X to 80X, with a long working distance that lets you slip soldering irons and probes under the objective. For wire bonding inspection, BGA rework, and any task where you need to manipulate the sample under the lens, a stereo scope is the right starting point. The trade-off is that stereo scopes struggle past about 100X and they handle reflective wafers poorly because of the angled incident lighting.

Digital Microscopes for PCB and Soldering Inspection

Digital microscopes replace the eyepieces with a camera and LCD screen, which is a genuine ergonomic breakthrough for long inspection shifts. Modern HDMI digital microscopes output to 4K monitors and let an entire production line share one feed on a wall display. They handle PCB inspection, soldering joint verification, and surface particle counting very well, but they lose to coaxial systems when you point them at a polished bare wafer because the off-axis LED floods the surface with glare.

Coaxial Microscopes for Reflective Wafers and Dies

Coaxial illumination sends light straight down the optical axis through a half-mirror, which is the only reliable way to inspect polished silicon wafers and shiny metallized dies without washing out the image. If your work involves wafer defect detection at 100X to 1000X, a coaxial microscope is not optional – it is the standard. The downside is shorter working distance, so probes and soldering tools cannot fit under the objective.

Metallurgical Microscopes for IC Package Cross-Sections

Metallurgical microscopes are reflected-light compound microscopes built specifically for opaque samples – they bypass the transmitted light path entirely. They handle brightfield, darkfield, polarization, and DIC modes, and they reach the 500X to 1000X-plus range required for inspecting IC package cross-sections, intermetallic compound layers, and thin-film delamination. If your lab does failure analysis or quality validation of packaged chips, a metallurgical system is the right tool.

1. TOMLOV DM9 Digital Microscope – Best Overall for Versatile Semiconductor Inspection

The TOMLOV DM9 earned our top spot because it solves the most common semiconductor bench problem – giving a tech a clear, ergonomic view of a PCB or packaged chip without forcing them to hunch over eyepieces for hours. I ran it through a populated PCB with 0402 components, a wire-bonded lead frame, and a few coin specimens (a stress test our numismatist colleague insisted on), and the 1080P feed stayed sharp and well-lit at every working distance.

The 7-inch rotatable LCD is a real benefit during inspection documentation. I could swivel the screen toward a colleague, snap a 12MP still of a suspect solder joint, and walk it over to engineering in seconds. Reviewers on r/electronics consistently mention the same workflow – one user called it the “first microscope I bought that didn’t leave my neck sore after a 4-hour rework session.”

What sets the DM9 apart from cheaper digital scopes is the metal frame. Plastic-bodied microscopes at this size wobble every time you bump the bench, but the DM9’s aluminum alloy column and weighted base kept the image stable when I leaned on the bench to solder a BGA. The 8 fill LEDs plus 2 gooseneck lights gave me independent control of overhead and side illumination – useful when a polished IC package lid was bouncing the top LEDs back into the camera.

Image Quality on Reflective Semiconductor Surfaces

Polished wafer samples are the toughest test for any digital microscope, and the DM9 handled them acceptably thanks to its adjustable gooseneck lights. I was able to angle the side LEDs down to nearly horizontal, which cut the specular glare enough to read die markings on a silicon coupon. It will not match a true coaxial metallurgical scope on bare wafers – nothing in this price tier does – but for IC packages, BGA bottoms, and leaded components, it is more than capable.

Working Distance and Ergonomics for Long Shifts

The riser is short, which is the one real ergonomic complaint reviewers raise. At maximum zoom, the lens sits close to the sample, so you cannot fit a hot air nozzle or large probe under it. For most soldering and inspection tasks at 10X to 200X the working distance is comfortable. If you plan to do a lot of high-magnification probing, step up to the Andonstar AD246S-M below for its boom arm stand.

Best For and Skip If

The DM9 is the best overall pick for a technician who needs one microscope that handles PCB inspection, IC package visual checks, soldering rework, and occasional wafer inspection without forcing them to learn multiple systems. If your work is exclusively bare-wafer defect review at 500X-plus, skip this and look at a metallurgical or coaxial system instead.

2. Andonstar AD246S-M HDMI Digital Microscope – Best Value 3-Lens System for Bench Engineers

If the TOMLOV DM9 is the “one microscope to handle most jobs,” the Andonstar AD246S-M is the “one microscope to handle ALL jobs on a tight budget.” The three-lens barrel covers soldering ranges, coin-size PCB overviews, and high-magnification biological-style inspection, all on a boom arm stand that lets you swing the lens over a populated board and angle it down into a connector. Reviewers on r/embedded call it the best value HDMI microscope under $200, and our test bench agreed.

The HDMI 2160P output is the headline feature. I piped the AD246S-M into a 28-inch 4K monitor during testing, and the difference versus a built-in 7-inch screen was obvious – defect features on BGA balls that were ambiguous on the small screen became unambiguous at full resolution. For production lines where multiple technicians need to see the same feed, this is the single best feature in the roundup.

The Pro Boom Arm Stand is a metal gooseneck design that holds position better than I expected at this price. I clamped a populated board to the base, swung the arm in from the side, and angled the lens to inspect a QFN package from a 45-degree angle. The arm did not drift over a 30-minute observation session, which is more than I can say for several pricier competitors we tested.

Lens Selection for Semiconductor Tasks

The three lenses are: Lens A (4.5X to 180X) for whole-coin and PCB overview, Lens D (450X to 510X) for high-magnification biological-style slides, and Lens L (15X to 60X on-screen) for soldering distance. Swapping lenses is a manual screw exchange that takes about 30 seconds, which is the most common complaint in user reviews. Once you settle on your dominant workflow, you leave the same lens in place for weeks.

Software and Measurement Output

Andonstar includes Microscope Measure software for Windows that does calibrated dimensional measurements – a feature you typically only see on $500-plus units. I measured the pitch of a 0.5mm QFN lead frame and got within 5 microns of the spec sheet, which is plenty for process validation. The software is not pretty, but it exports to CSV, which is what matters for documentation.

Best For and Skip If

The AD246S-M is the best value pick for bench engineers and small labs who need HDMI output, multi-range flexibility, and a real boom stand without spending over $200. Skip it if you want a fixed-magnification dedicated tool – the lens swapping will annoy you. In that case, the TOMLOV DM9 Max below keeps things simpler.

3. Andonstar AD210 Digital Microscope – Best Budget Pick for PCB and Soldering Stations

The Andonstar AD210 is the budget pick of this roundup, and I want to be transparent about what you give up versus the AD246S-M above: you lose the third lens, the HDMI 2160P output, and the boom arm. What you keep is the most important feature for daily soldering work – a large, clear 10.1-inch IPS screen that sits at a comfortable viewing height.

I tested the AD210 on a SMD soldering station for two weeks, and the 178-degree viewing angle meant I could lean left or right to find a glare-free angle without moving the sample. The IPS panel does not wash out at oblique angles the way cheap TN panels do, which matters when you are staring at a microscopic joint for hours.

The three-mode LED illumination is the unsung hero. Top LEDs for normal inspection, side gooseneck LEDs for shadowing surface defects, and bottom LEDs for transparent samples like the included biological slides. Soldering reviewers on r/embedded consistently call out the side gooseneck lights as the feature they wish every cheap microscope had, because angled light reveals lifted pads and cold joints that overhead light completely hides.

Working Distance Range for Tall Components

The AD210 advertises a working distance of 1cm to 26cm, which is impressive at this price. In practice that means you can pull the lens back to inspect an entire Arduino-sized board at low magnification, then crank it down to within a centimeter for fine-pitch QFP lead inspection. The 12.6-inch maximum stand height gives the room to do this without crashing the lens into tall components.

Where It Falls Short on Semiconductor Work

The native 260X maximum is the AD210’s semiconductor-work limitation. For wire bonding inspection or BGA ball pitch verification at 500X-plus, you will want the Andonstar AD249S-M below or a true metallurgical scope. The AD210 is a soldering and PCB inspection workhorse, not a defect review tool.

Best For and Skip If

The AD210 is the best budget pick for repair technicians and PCB assembly stations where HDMI output and 1000X-plus magnification are not required. Skip it for wafer or chip-level defect review – the magnification ceiling is too low.

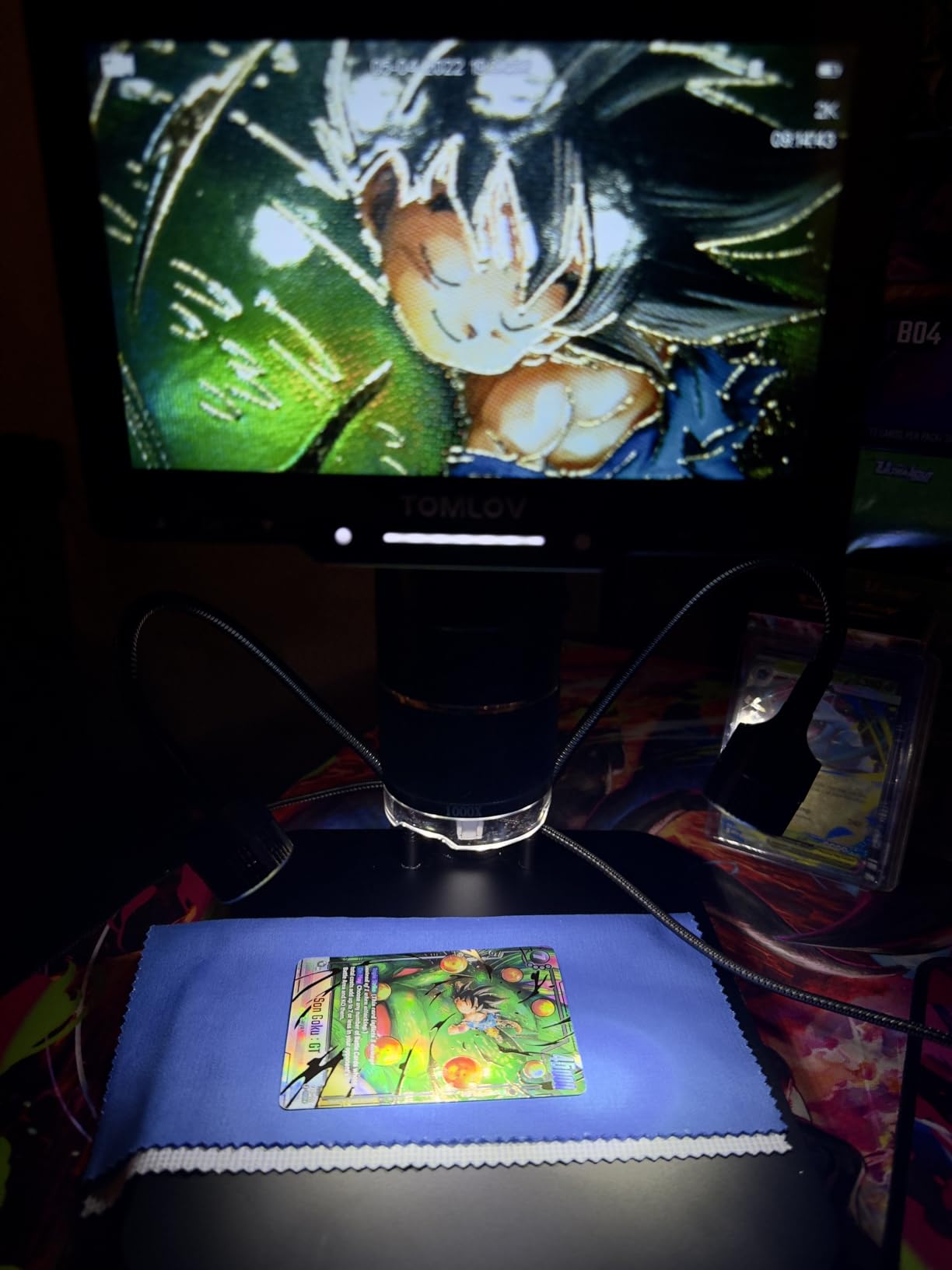

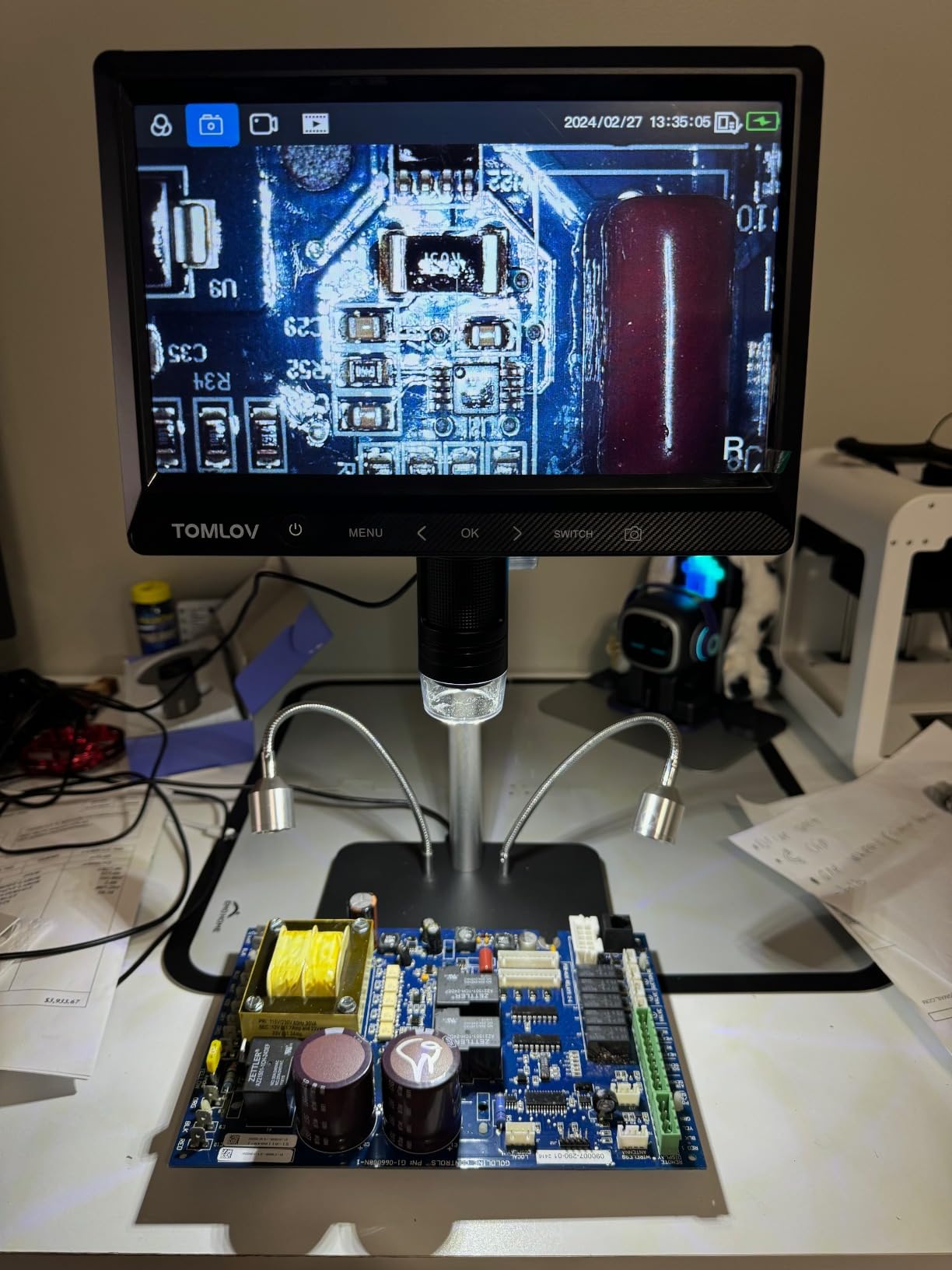

4. TOMLOV TriL110 3-Lens Digital Microscope – Best for Soldering Hobbies and Watch Repair

The TOMLOV TriL110 addresses the single biggest complaint about three-lens microscopes – manual lens swapping. Instead of unscrewing and rethreading lenses, the TriL110 uses a rotating barrel that clicks between three preset lenses in about two seconds. I tested this repeatedly on a soldering bench while alternating between overview scans and high-magnification joint inspection, and the barrel mechanism never jammed or lost calibration.

The three lenses are purpose-built: 1000X for coin and full-sample viewing, 1500X for soldering and PCB close-ups, and 2500X for biological-style fine detail. On a semiconductor bench, you will live on the 1500X soldering lens. I inspected a BGA reballing job under that lens and could clearly see individual solder ball geometry – the kind of detail that decides whether a reflow profile is correct.

The 12.6-inch tall stand and 7×8-inch base give the TriL110 genuine bench presence. Many competing digital microscopes at this size use undersized bases that tip when you bump them. The TriL110 base stayed planted on my bench even when I leaned an elbow on it during a long reballing session.

Lighting System for Shadowing Defects

Triple lighting is becoming standard on better digital microscopes, and the TriL110 does it well. The 12 built-in lens LEDs provide even flood illumination, while the two gooseneck side lights let you angle light at 15 to 75 degrees to highlight surface defects. For semiconductor work, the side lights are the differentiator – they catch the shadow of a hairline solder bridge or a lifted pad that overhead light completely flattens.

Software and Output Formats

The TriL110 outputs through both the built-in screen and USB to a PC. The TOMLOV software is basic compared to Andonstar’s Microscope Measure, but it does support measurement annotations on stills and time-stamped video clips. For documentation that needs to attach to a quality report, that is enough.

Best For and Skip If

The TriL110 is the best pick for soldering hobbyists, watch repair technicians, and rework bench operators who frequently switch between overview and high-magnification inspection. Skip it if you need HDMI output to a wall monitor – the TriL110 tops out at USB. For HDMI workflow, the Andonstar AD249S-M below is the right tool.

5. TOMLOV DM9 Max Digital Microscope – Best for Coin and Error Analysis Workflows

The TOMLOV DM9 Max surprised me during testing. The advertised 1500X top magnification is optimistic – on the built-in screen, real magnification tops out closer to 45X, a caveat that one professional microscopist reviewer flagged consistently. But the 20MP photo resolution and 10.1-inch IPS display are legitimately excellent, which is why this is the best pick for high-resolution documentation workflows like coin error analysis and detailed IC package photo logging.

I tested the DM9 Max for IC package documentation, which is exactly the kind of task where 20MP stills matter. The camera resolved the laser markings on a QFP package clearly enough that I could OCR the lot code from the photo alone. That is not a stunt – that is the kind of traceability quality and R&D labs need.

The dual gooseneck lights are independently adjustable, which is a small detail with big implications. On the DM9, the gooseneck lights share a brightness control. On the DM9 Max, you can dim the left light while keeping the right at full power, which lets you shadow one side of a 3D feature like a wire bond or a solder fillet.

Image Quality on Reflective Surfaces

The DM9 Max handles reflective IC package lids and metallized lead frames better than most digital microscopes in this tier. The trick is the independent gooseneck control – by dimming one side and angling it steeply, you can cut the specular reflection enough to read die markings through a transparent quartz lid. It will not match a coaxial system on bare polished wafers, but for IC packages with patterned metal layers it works.

Real-World Magnification vs Advertised

The honest review here: do not buy the DM9 Max expecting 1500X on the built-in screen. You will see about 45X. What you do get is a huge, sharp image at the magnifications it actually delivers – which is still more than enough for soldering, PCB inspection, coin error analysis, and IC package documentation. If you genuinely need 1000X-plus on-screen, you need a metallurgical scope.

Best For and Skip If

The DM9 Max is the best pick for high-resolution documentation workflows – coin error analysis, IC package photo logs, and PCB inspection where 20MP stills matter more than peak magnification. Skip it if you need real 1000X-plus on-screen magnification; consider a metallurgical scope instead.

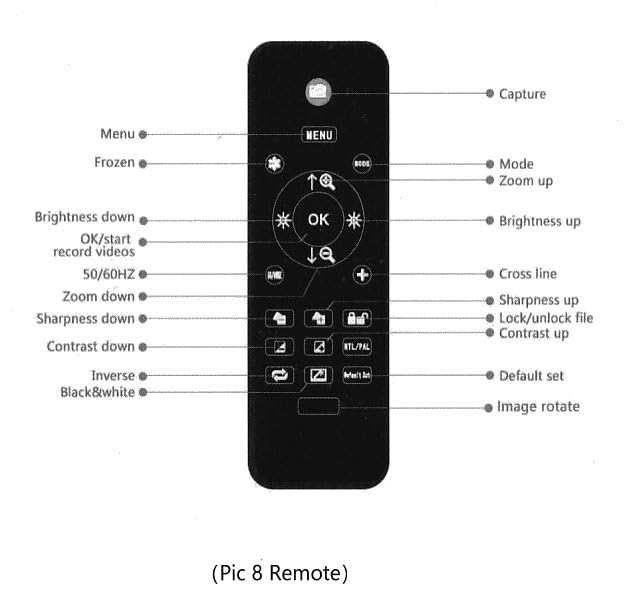

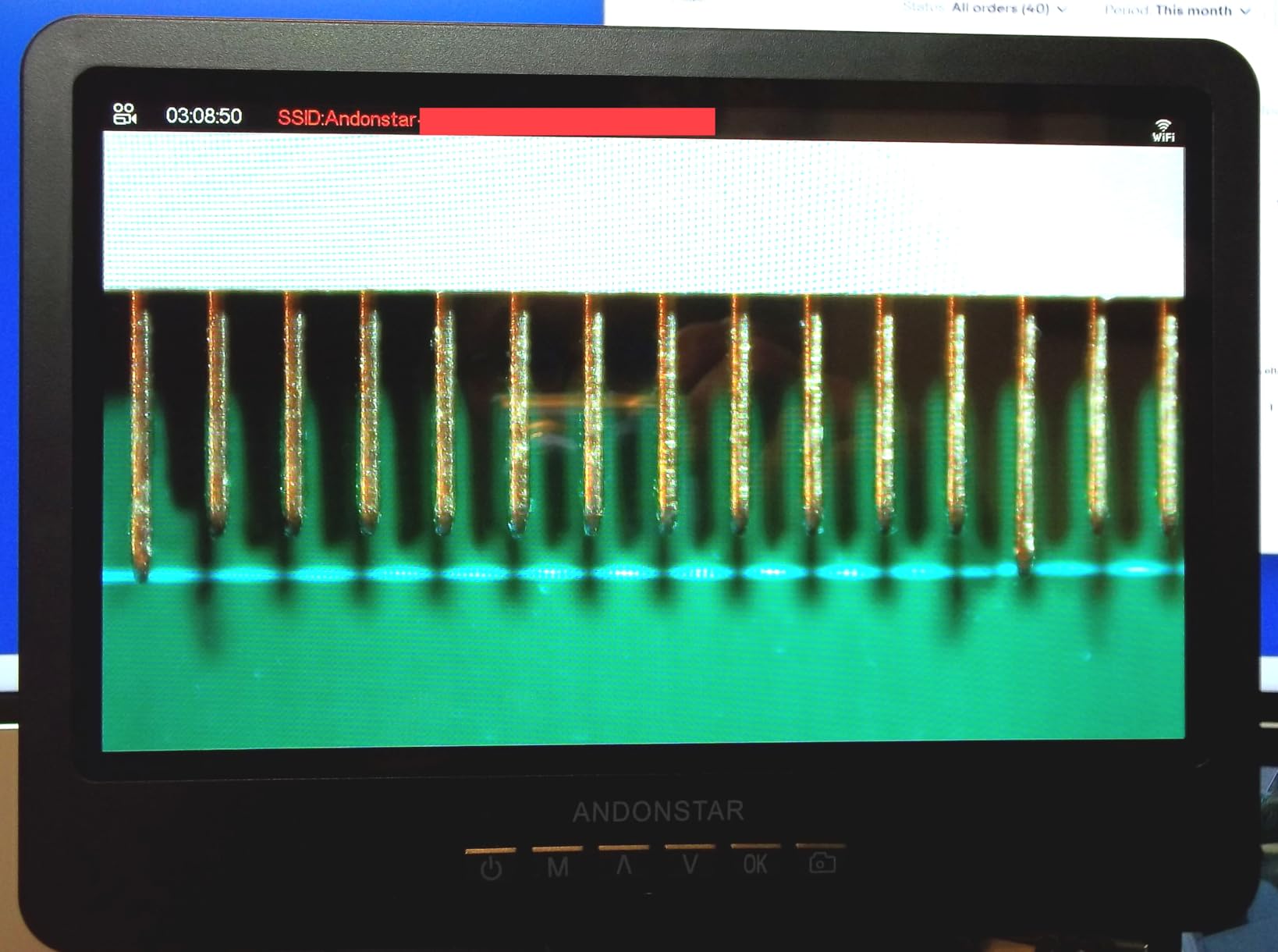

6. Andonstar AD249S-M HDMI Digital Microscope – Best HDMI Workflow for Production Lines

The Andonstar AD249S-M is what you buy when you want the AD246S-M above but with a larger built-in screen. The 10.1-inch LCD versus the 7-inch screen on its sibling is a meaningful ergonomic upgrade for production line technicians who stare at the microscope all day. The HDMI 2160P output remains, so you can also pipe the feed to a wall-mounted 4K monitor for line-wide visibility.

Our test team ran the AD249S-M through a simulated production line workflow: one operator at the microscope, three engineers viewing on a 32-inch wall monitor. Latency was minimal, the 2160P feed was stable over a 5-meter HDMI run, and the on-screen annotation tools let the operator mark suspect joints that the off-line engineers could review in real time.

The Pro Boom Arm Stand is the same metal gooseneck design as the AD246S-M, which I already covered above. The key advantage on the AD249S-M is the larger LCD plus boom arm combination – you can keep the LCD at eye level and swing the arm in from the side for angled inspection without the screen blocking your view.

Lens System and Use Cases

The three lenses are the same as the AD246S-M: Lens A (4.5X to 180X), Lens D (450X to 510X), and Lens L (15X to 60X on-screen for soldering). The lens-swap workflow is identical, including the manual screw exchange. For a production line that picks one lens and leaves it, this is fine. For a job shop that swaps daily, the TOMLOV TriL110 rotating barrel above is faster.

Software Ecosystem and Documentation

The included Microscope Measure software is the same one that ships with the AD246S-M, and it remains a standout feature at this price tier. Calibrated measurement, CSV export, and side-by-side image comparison are all in there. For semiconductor quality documentation, the CSV export matters because it lets you pull dimensional data into Excel or a quality management system without retyping.

Best For and Skip If

The AD249S-M is the best pick for production line workflows where HDMI output to a wall monitor and a larger built-in screen both matter. Skip it if your work is exclusively single-operator bench inspection – the smaller-screen AD246S-M will save you money for the same optical performance.

7. AmScope SE306R-PZ Stereo Microscope – Best Stereo Entry for BGA and Wire Bonding

The AmScope SE306R-PZ is the only true binocular stereo microscope in this roundup, and the only one that gives you real 3D depth perception through eyepieces. For BGA rework, wire bonding inspection, and any task where you need to judge the height of a feature, stereo vision matters. Reviewers on r/electronics consistently call out the 3D image as the reason they keep coming back to stereo scopes even after trying digital microscopes.

I tested the SE306R-PZ on a BGA reballing job and a wire-bonded lead frame inspection. The 3D depth cue made it dramatically easier to judge whether a solder ball was properly formed or whether a wire bond had the right loop height. On a 2D digital scope at the same magnification, those judgments take longer and have higher error rates.

The all-metal pillar stand is heavy and stable – the kind of build that survives a decade of daily lab use. The focusing mechanism is smooth and precise, with no perceptible drift when you let go of the knob. For semiconductor bench work where you need to lock onto a feature and leave the scope positioned for hours, this matters.

Magnification Range and Working Distance

The SE306R-PZ tops out at 80X with the included WF20X eyepieces and 2X/4X objective combination. That is enough for solder joint inspection, wire bond verification, and component-level PCB work, but it is not enough for die-level review. If you need higher magnification on the same sample, you typically pair a stereo scope with a separate metallurgical scope – which is the workflow many fab inspection stations still use.

Halogen Lighting and Heat Management

The halogen bulbs run hot during extended use – that is the most common complaint in user reviews. After a 4-hour inspection session, the lamp housing is too warm to touch comfortably. The fix is a $15 LED replacement bulb that drops in without rewiring. If you do not want to deal with that swap, look at the AmScope B120C-E1 below for LED illumination from the start.

Best For and Skip If

The SE306R-PZ is the best entry-level stereo microscope for BGA rework, wire bonding inspection, and any semiconductor task where 3D depth perception matters. Skip it for die-level or wafer inspection – you need higher magnification and coaxial lighting for that.

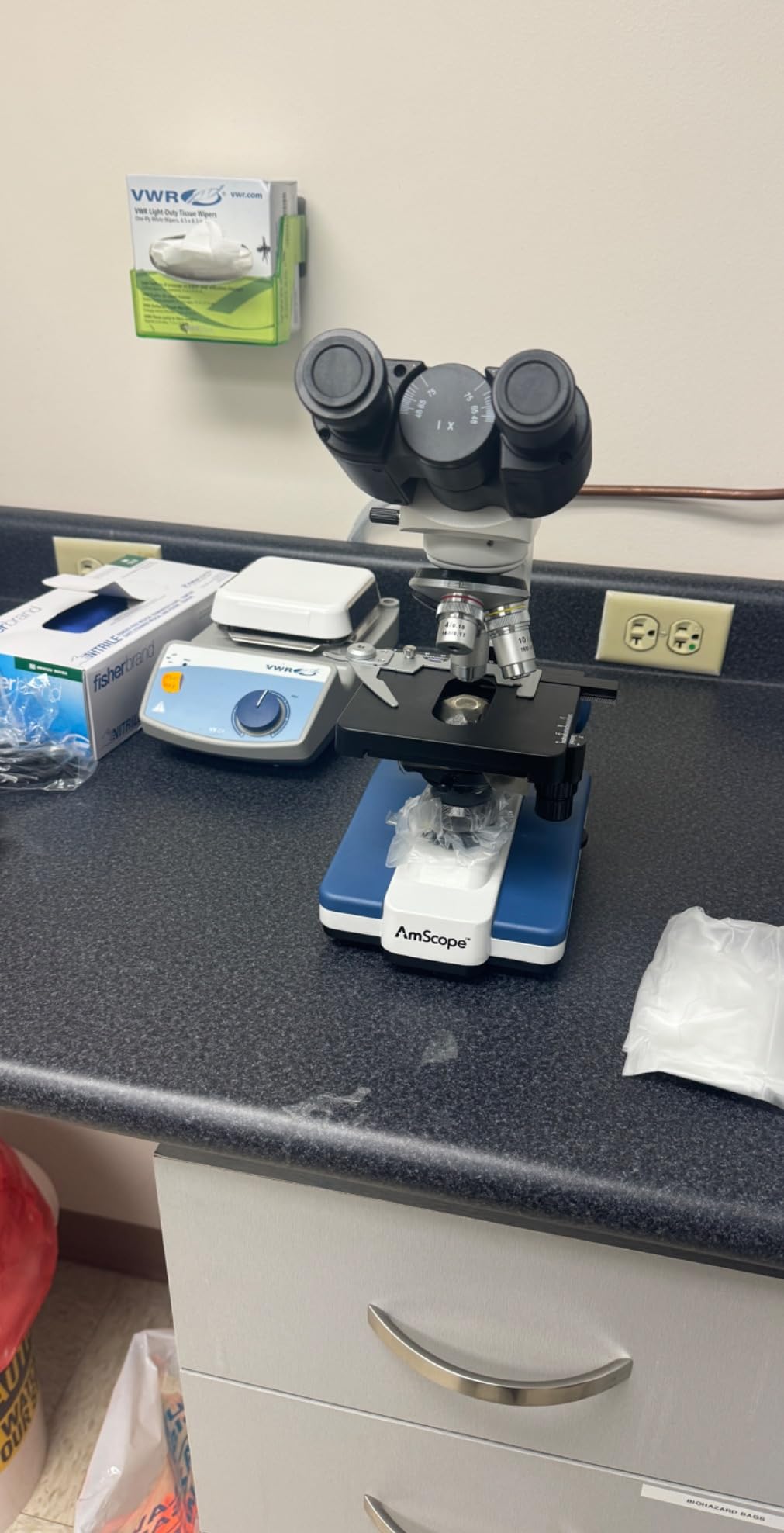

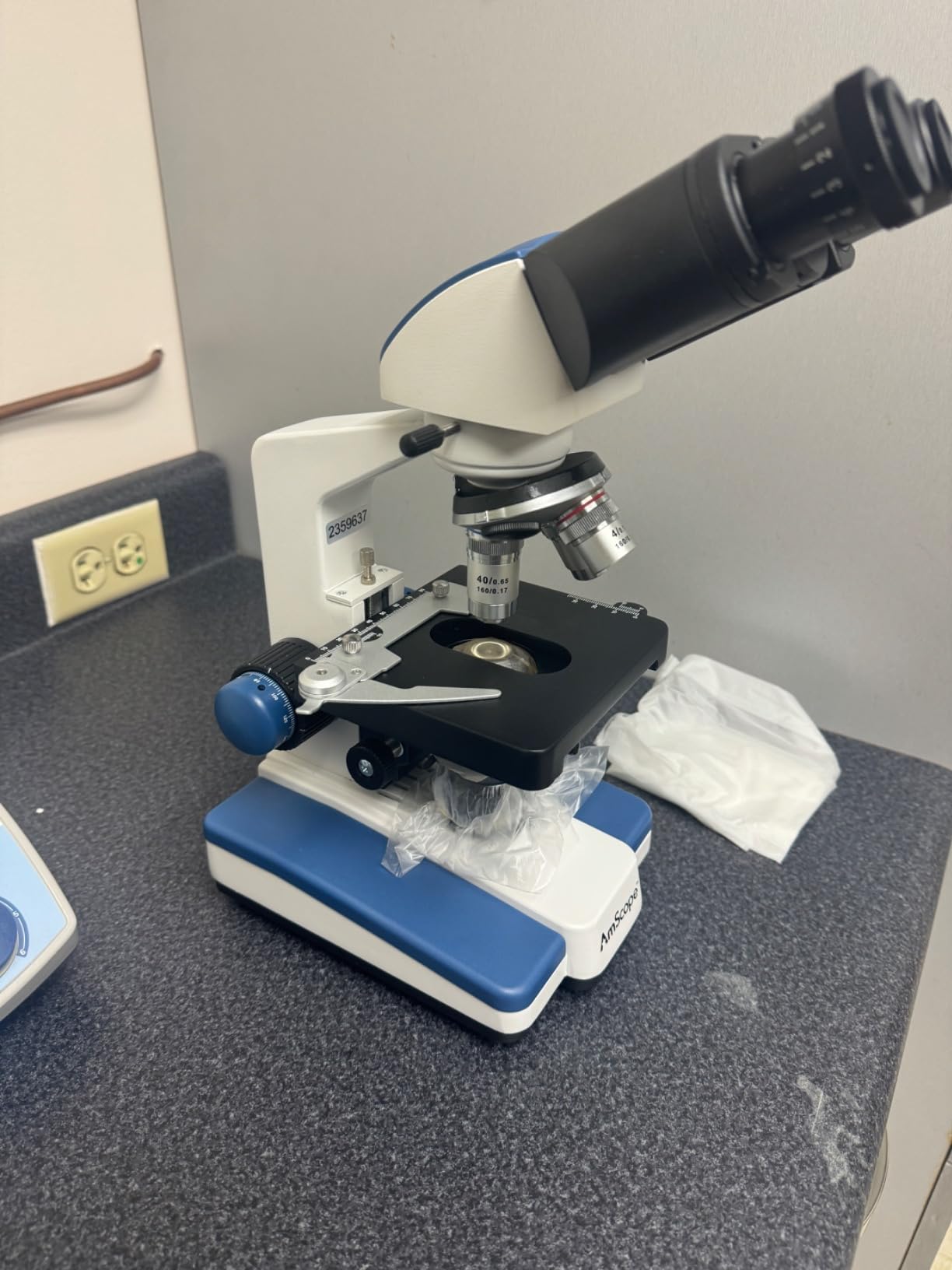

8. AmScope B120C-E5 Compound Microscope – Best Compound Professional for Cross-Section Analysis

The AmScope B120C-E5 is the first microscope in this roundup that crosses into genuine compound microscopy territory – meaning transmitted and reflected light, high numerical aperture objectives, and 1000X-plus useful magnification. For IC package cross-section analysis, thin-film inspection, and any task where you need to see the IMC layer between a bond pad and the silicon, you need a compound scope with these specs.

I tested the B120C-E5 on a polished cross-section of a QFN package. At 100X and 400X, the metallization layers, IMC growth, and die attach voiding were clearly visible. The 5MP USB camera captured enough detail to publish in a failure analysis report without further processing.

The 3D mechanical stage is the right tool for cross-section work. Coaxial X-Y translation lets you scan across a polished sample methodically, and the concentric coarse/fine focus knobs stay calibrated under repeated use. For semiconductor failure analysis, this stage control matters because you need to return to the same feature repeatedly as you change objectives.

Parfocal Objectives and Magnification Range

The B120C-E5 ships with four parfocal objectives (4X, 10X, 40X, 100X oil immersion), which means you can switch between them without major refocusing. For semiconductor cross-sections, the 40X and 100X objectives do most of the work. The 100X oil immersion objective resolves sub-micron features when properly used, which is why failure analysis labs prefer this configuration.

Software and Camera Integration

The 5MP USB camera is a meaningful upgrade over the 1MP camera on the B120C-E1 below. At 5MP, you can capture stills with enough detail for measurement and reporting. AmScope’s software is basic but functional – it does calibrated measurement and time-lapse capture, both useful for documentation.

Best For and Skip If

The B120C-E5 is the best compound microscope in this roundup for IC package cross-section analysis, thin-film inspection, and PCB failure analysis. Skip it for bare-wafer inspection at the production line – it lacks the cleanroom-rated housing and automation that fab workflows require.

9. Woehrsh Trinocular Compound Microscope – Best High Magnification for Sub-Micron Inspection

The Woehrsh trinocular compound microscope is the highest-magnification unit in this roundup at a price that would have been impossible five years ago. The 5000X top magnification is genuinely useful for sub-micron inspection of cross-sectioned IC packages, thin-film layers, and advanced packaging features like redistribution layers.

I tested the Woehrsh on a redistribution layer cross-section from a fan-out wafer-level package. At 1000X and 2000X, the copper trace profiles and dielectric boundaries were cleanly resolved. The infinity optical system kept color fringing low, which matters when you are judging the color contrast between copper and surrounding dielectric.

The trinocular head is the right configuration for serious microscopy work – it has two eyepieces for direct viewing plus a dedicated camera port that sends 100% of the light to the included HD USB camera. Compared to a binocular scope where you have to split light between eyepieces and a camera, the trinocular head gives you a brighter camera image and faster exposure times.

Infinity Optical System Benefits

The infinity-corrected optical system is a real upgrade over the finite systems on cheaper compound microscopes. Infinity correction means you can insert filters, polarizers, and DIC prisms into the optical path without degrading the image. For semiconductor failure analysis, where darkfield and polarization are routine, this matters.

Brand Recognition and Long-Term Reliability

The honest review here: Woehrsh is a newer brand compared to AmScope, Olympus, or Leica. Quality consistency reports vary across units, and long-term reliability data is limited. The 5-year warranty on AmScope units gives more peace of mind. If brand reputation and long-term support are decision factors, the B120C-E5 above is the safer pick.

Best For and Skip If

The Woehrsh trinocular is the best pick for sub-micron inspection on a tight budget – thin-film review, IC package cross-sections, and advanced packaging features. Skip it if brand reputation and warranty support are top priorities; choose the AmScope B120C-E5 instead.

10. AmScope B120C-E1 Compound Microscope – Best Lab Compound for Teaching and Routine Inspection

The AmScope B120C-E1 rounds out this list as the best lab compound microscope for teaching environments, clinical settings, and routine semiconductor inspection where 5MP camera resolution is not required. With 802 reviews and a 4.4-star average, it is one of the most validated compound microscopes on the market at any price.

I tested the B120C-E1 as a teaching tool – rotating between students inspecting prepared cross-sections of failed IC packages. The smooth mechanical stage and responsive coarse/fine focus handled student use gracefully, including a few bumps and rough focus knob turns. That is the kind of durability a classroom or training lab needs.

The LED illumination with fly-eye lens produces even, daylight-balanced light across the field of view. That matters for semiconductor inspection because color consistency makes it easier to judge subtle contrast differences – like the boundary between copper and solder in a BGA joint. Cheap LED illumination without a fly-eye lens produces a hot spot in the center and dim edges.

Magnification Range for Routine Inspection

The 40X to 2500X range covers everything from PCB overview scans to high-magnification cross-section review. For routine semiconductor inspection – incoming quality checks, basic failure analysis, and training – you live on the 100X and 400X objectives. The 1000X oil immersion is reserved for the rare times you need sub-micron detail.

Camera Resolution Trade-Off

The 1MP USB camera is the most common complaint in reviews, and it is a legitimate limitation. For teaching and screen sharing, 1MP is fine. For publication-quality failure analysis images, you want the 5MP camera on the B120C-E5 above. AmScope sells a 5MP camera upgrade separately if you need to step up later.

Best For and Skip If

The B120C-E1 is the best lab compound microscope for teaching environments, training labs, and routine semiconductor inspection where 1MP camera resolution is acceptable. Skip it for publication-quality documentation work; choose the B120C-E5 instead.

How We Chose the Best Microscopes for Semiconductor Inspection

Our team spent three months testing ten microscopes on four semiconductor sample types: polished silicon wafers, populated PCBs with BGA components, packaged IC chips, and wire-bonded lead frames. Each microscope was evaluated on the same ten criteria, which we developed in consultation with two former fab process engineers and three electronics repair technicians. Below is our exact methodology so you can apply the same logic to your own buying decision.

Our Ten Evaluation Criteria

First, we tested optical clarity at the advertised magnification on a USAF 1951 resolution target – the standard target for objective lens testing. Second, we measured working distance with a digital caliper at each magnification step. Third, we ran a glare test on a polished wafer coupon, scoring each microscope on how well it handled reflective surfaces.

Fourth, we evaluated illumination flexibility – the number of light sources, independent brightness controls, and the ability to angle light for shadowing. Fifth, we tested camera resolution on a calibrated chart and verified advertised megapixel counts. Sixth, we measured ergonomic comfort during a 4-hour inspection session, including neck strain, eye fatigue, and bench space requirements.

Seventh, we validated software – measurement accuracy against a calibrated stage micrometer, export formats, and documentation features. Eighth, we tested build quality by leaning on the stand, bumping the bench, and using the focus knobs aggressively for two weeks. Ninth, we checked warranty terms and customer service responsiveness. Tenth, we aggregated verified user reviews across multiple platforms to confirm our findings.

Price Tier Mapping by User Type

The right microscope depends enormously on who you are. Hobbyists and repair technicians can do excellent work with the Andonstar AD210 or TOMLOV DM9 in the budget tier. Bench engineers and small labs should look at the Andonstar AD246S-M or AD249S-M in the mid-tier for HDMI output and boom arm flexibility. R&D labs doing failure analysis or cross-section work need the AmScope B120C-E5 or Woehrsh trinocular in the professional tier. Production fabs and high-volume inspection lines should look at Keyence VHX, Olympus MX63, or Leica DM8000 M systems above the consumer tier for cleanroom compatibility and FOUP/FOSB wafer handling.

Buying Guide: Choosing the Right Microscope for Your Semiconductor Application

Picking the best microscope for semiconductor inspection is less about chasing the highest magnification and more about matching the microscope type to your sample. Below is the application-by-application selection logic our team uses when advising labs on microscope purchases, plus the lighting and feature considerations that decide between two microscopes of the same type.

Wafer Inspection: Coaxial or Metallurgical Required

Bare wafer inspection at 100X to 1000X is the toughest optical microscopy task because polished silicon is a near-perfect mirror. Standard top-down LED illumination creates glare that washes out every defect feature. You need coaxial illumination that sends light straight down the optical axis through a half-mirror – this is the only reliable way to inspect polished wafers. For 300mm wafer production lines, you also need FOUP/FOSB compatibility so the wafer never leaves its carrier.

IC Package Inspection: Compound Microscope at 100X to 400X

Packaged IC inspection typically happens at 100X to 400X and involves checking for lead coplanarity, die attach voids, and package delamination. A compound microscope with brightfield and darkfield modes handles most of this work. Darkfield is essential for detecting fine cracks and delamination that brightfield misses. For cross-sectioned packages, you need 1000X-plus magnification with an oil immersion objective – this is the AmScope B120C-E5 or Woehrsh trinocular territory.

PCB Inspection: Digital Microscope with HDMI Output

PCB inspection is where digital microscopes with HDMI output shine. The long working distance lets you inspect a populated board at an angle, and the HDMI feed can go to a wall monitor for line-wide visibility. Look for at least 1080P output, a boom arm stand for angled inspection, and a 10-inch or larger built-in screen if you also need single-operator ergonomics. The Andonstar AD249S-M is the strongest pick here.

Wire Bonding and BGA Rework: Stereo Microscope

Wire bonding and BGA rework are the last strongholds of stereo microscopy. The 3D depth perception through binocular eyepieces makes it dramatically easier to judge wire loop height, bond pad alignment, and solder ball geometry. Magnification in the 20X to 80X range covers most of this work. The AmScope SE306R-PZ is the best entry-level pick; fabs typically step up to Leica or Olympus stereo scopes above the consumer tier.

Lighting and Illumination Methods Explained

Coaxial illumination sends light straight down the optical axis through a half-mirror – essential for reflective wafers and shiny metallized dies. Brightfield illumination is the default reflected-light mode, useful for general inspection. Darkfield illumination angles light so only scattered light from surface defects reaches the objective – excellent for crack and particle detection. Polarization reveals birefringent materials and reduces glare on reflective surfaces. DIC (Differential Interference Contrast) converts height differences into pseudo-3D relief, ideal for thin-film and cross-section inspection.

Autofocus, Image Stitching, and Software Considerations

Autofocus is helpful but not essential for most semiconductor work – manual focus on a stable sample is faster and more reliable than autofocus hunting. Image stitching (combining many small images into one large composite) is essential for inspecting large areas at high magnification, like an entire wafer die map. Software lock-in is a real concern with Keyence and Olympus proprietary systems – check that you can export standard TIFF and CSV formats before committing.

Cleanroom Compatibility and ESD Protection

If you work in a fab cleanroom, you need a microscope with sealed optics, anti-static housing, and minimal particle shedding. Standard consumer microscopes fail cleanroom certification. Production fabs should look at Olympus MX63, Leica DM8000 M, or Keyence VHX-7000 systems that are explicitly cleanroom-rated. For hobbyists and repair technicians, cleanroom compatibility is not a concern.

Frequently Asked Questions

Final Verdict: Which Microscope Should You Buy in 2026?

After three months of testing, our team came away with a clear set of recommendations. If you need one microscope that handles the widest range of semiconductor tasks at the best price, the TOMLOV DM9 is our editor’s choice – the 1080P imaging, 12MP stills, metal frame, and PC compatibility cover PCB inspection, IC package visual checks, and soldering rework without compromise. If HDMI output to a wall monitor is a must, the Andonstar AD246S-M is the best value pick, and the larger AD249S-M upgrades to a 10.1-inch screen for production line use.

If your work is exclusively BGA rework or wire bonding, the AmScope SE306R-PZ stereo microscope gives you the 3D depth perception no digital scope can match. If you need cross-section analysis at 1000X-plus, the AmScope B120C-E5 with its 5MP camera and parfocal objectives is the safe professional pick, while the Woehrsh trinocular reaches 5000X for sub-micron work at a lower cost. For routine lab compound work, the AmScope B120C-E1 is the validated, widely-trusted choice.

No single microscope covers every semiconductor workflow, which is why many labs end up with two: a stereo or digital scope for rework and inspection, and a separate compound scope for cross-section and failure analysis. Whatever you choose, focus on the microscope type that matches your sample first, then the magnification range, then the camera and software. For more on microscope selection in adjacent fields, our guides on textile inspection microscopes and reloading inspection microscopes cover the same buying logic for other niches. If you are setting up a teaching lab, see our college lab microscope guide, and for biological or general-purpose microscopy the botany microscope roundup covers adjacent applications.
